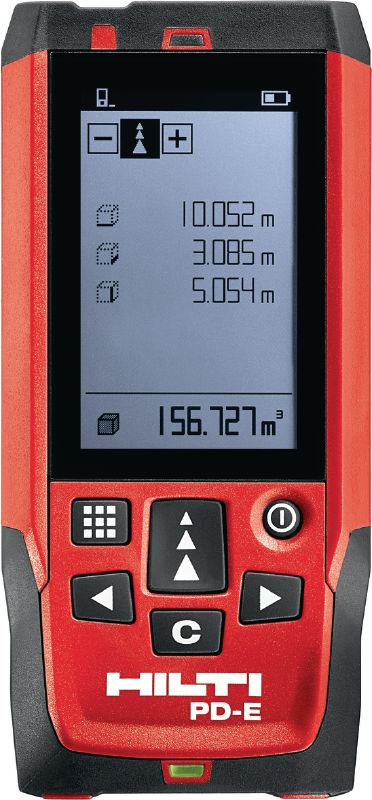

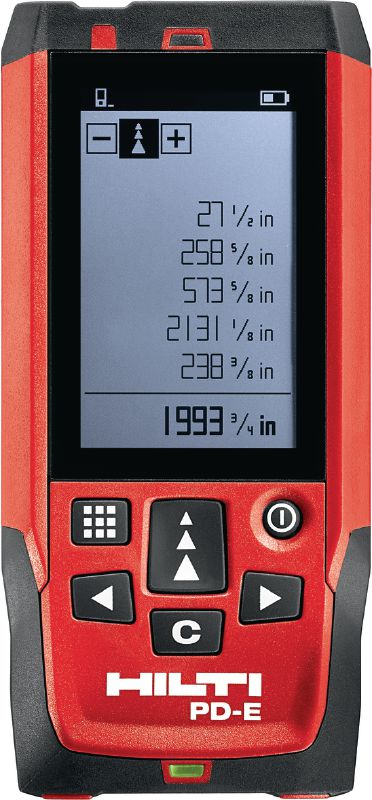

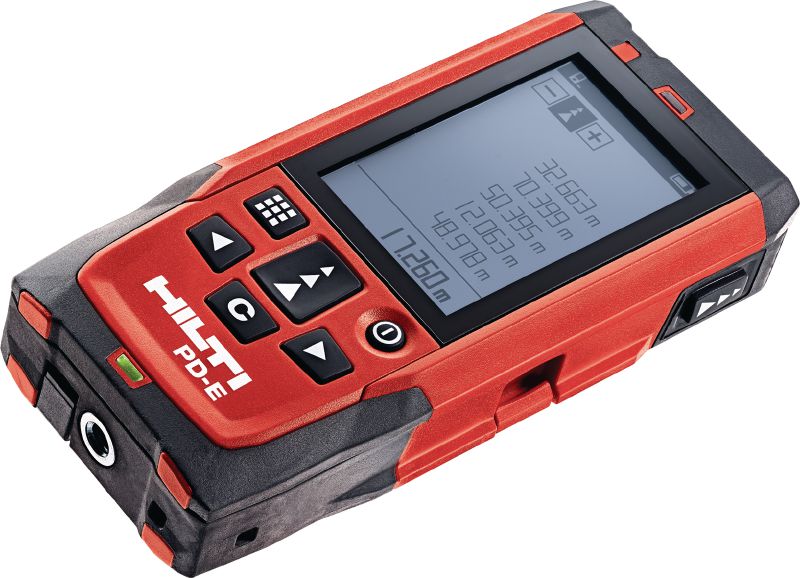

Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft

  • Measuring range: 0 in - 656 ft
  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Outdoor mode, Digital water level

Customers also searched for laser distance meter, laser meter, laser tape measure, laser measure or laser distance measurer.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,009.00

Technical Data

Measuring range
0 in - 656 ft
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Outdoor mode, Digital water level
Calculation functions
Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x)
Data memory
30 last measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
< 1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
None

Documents

Brochure
Operating Instruction
pdf Customer Flyer for PD-I and PD-E Laser Range Meters [ 706.1 KB ]
pdf Quickstart Guide for PD-I and PD-E Laser Range Meters [ 1.1 MB ]

Features & Applications

Features

  • High-quality laser module enables long-range measurements even under the toughest outdoor conditions
  • Purpose-built outdoor display can be read even in very bright sunlight

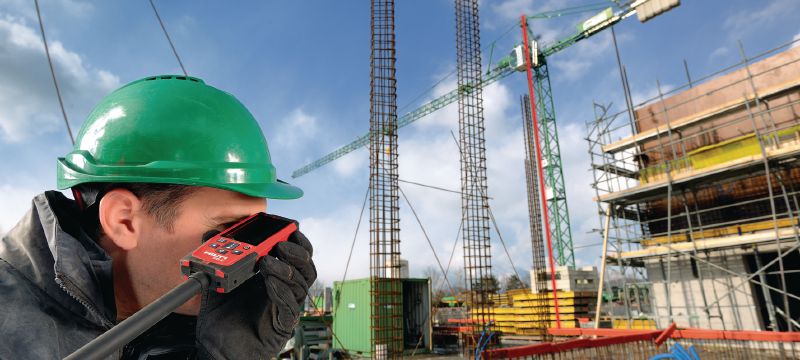

  • Built-in optical viewfinder for outdoor measurements
  • Rugged and durable to resist hard jobsite environments
  • Built-in 360° tilt sensor and smart estimation functions support measurements in challenging situations

Applications

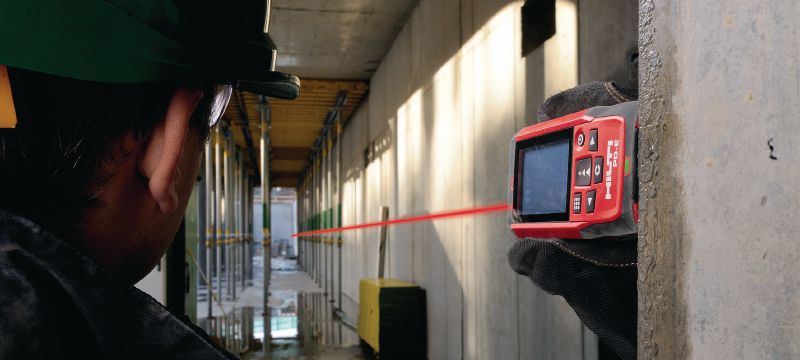

  • Measuring quickly and safely in places where access is difficult
  • Measuring surface areas for quotations in renovation work
  • Determining the length or height of objects that cannot be directly accessed (remote measurement)

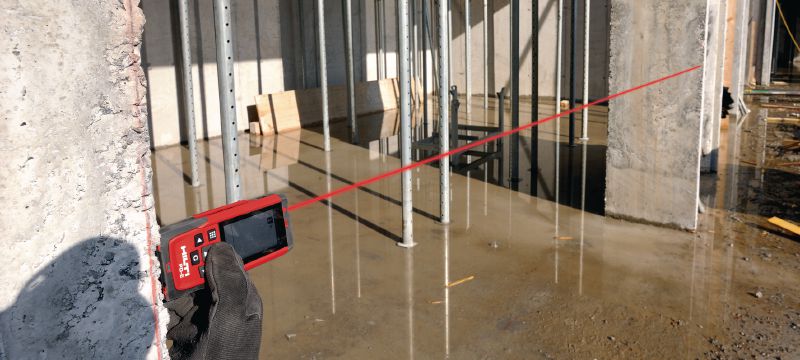

  • Measuring long distances using outdoor mode
  • Easy measurement of roof lengths using the trapezoid function

For approval or certificate information, please see individual items.
