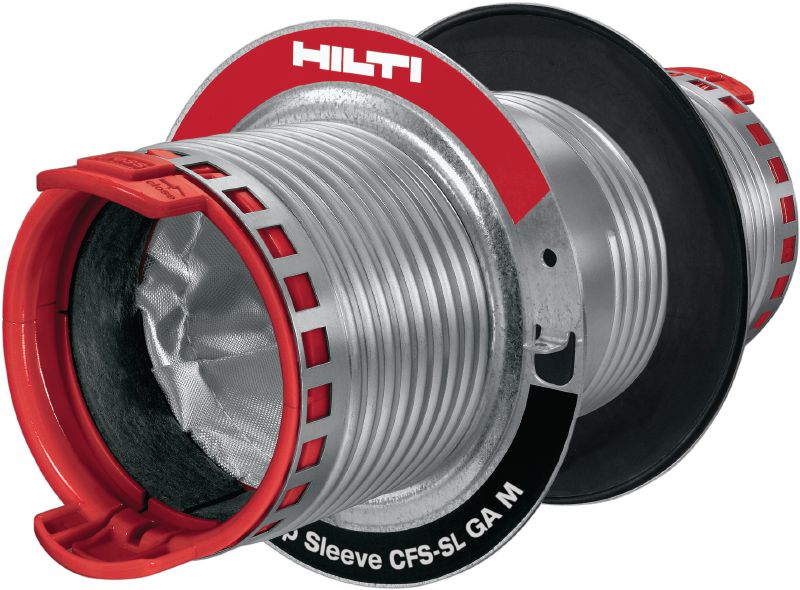

CFS-SL GA Extended Speed Sleeve

Firestop sleeve CFS-SL GA L #2178494

CFS-SL GA Firestop Sleeve gasket application

Pathway device for high-traffic cabling with optimal airflow control

Maximum wall thickness: 11-13/16 in
VOC Emission (LEED): low-emitting material in LEEDv4 and 4.1 Rating System
Product Class: Ultimate

ultimate

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$640.00

1 Each

Technical Data

Maximum wall thickness

11-13/16 in

VOC Emission (LEED)

low-emitting material in LEEDv4 and 4.1 Rating System

Product Class

Ultimate

Outside diameter (flange)

6.7 in

Application temperature range

23 - 122 °F

Storage and transportation temperature range

23 - 122 °F

Temperature resistance range

-22 - 167 °F

Documents

pdf Material Information Statement for Firestop Products, English [ 80.3 KB ]

Download

Features & Applications

Features

Functional and compliant when properly installed
Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
Superior smoke tightness and airflow control thanks to its twisting mechanism
Smoke gaskets eliminate need for sealant or putty

Applications

Sealing penetrations for single cables and cable bundles
Suitable for small to medium-sized circular openings in walls and ceilings
For use on drywall, concrete, masonry and sandwich panel
The ideal solution when cable configurations are regularly changed, such as in data centers, server rooms, hospitals, event halls or production plants
