CFS-SL GA Extended Speed Sleeve

Firestop sleeve CFS-SL GA L #2178494

Configurator
Technical Data
Documents
Features & Applications
Related Products

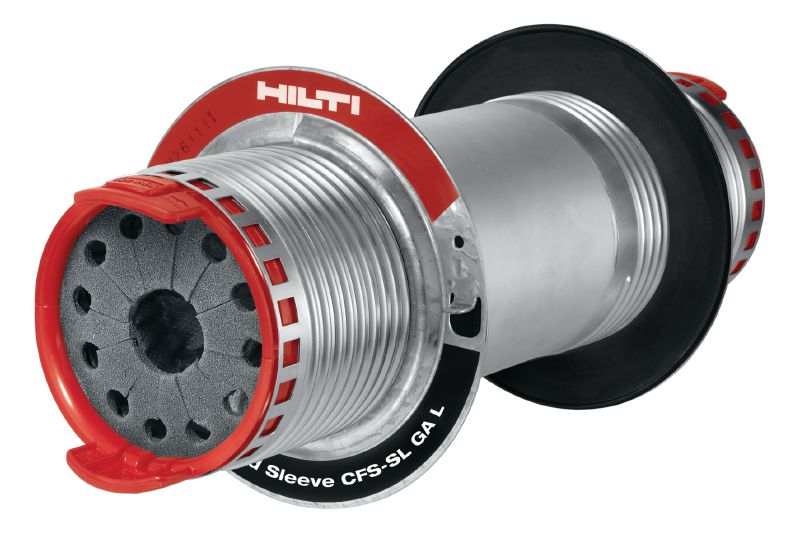

Firestop Sleeve CFS-SL GA L
CFS-SL GA Gangplate application person
CFS-SL GA Firestop Sleeve gasket application

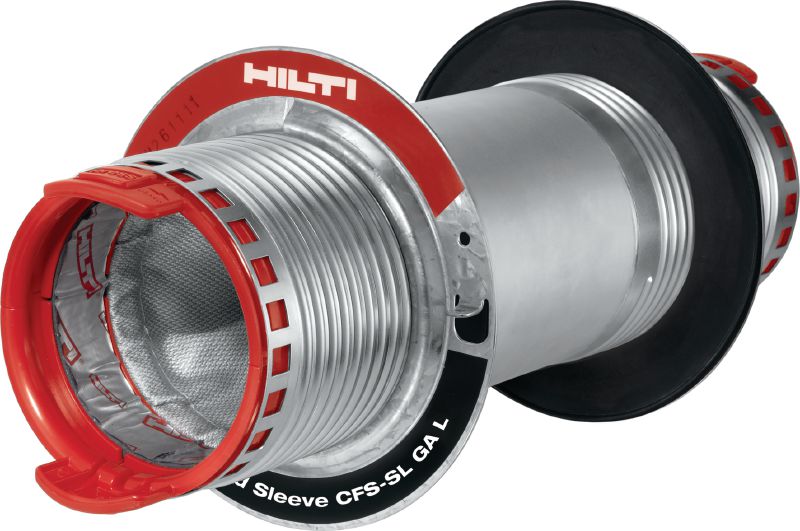

Firestop sleeve closed
CFS-SL GA Firestop sleeve closing

Pathway device for high-traffic cabling with optimal airflow control

  • Maximum wall thickness: 11-13/16 in
  • Product Class: Ultimate
  • Outside diameter (flange): 6.7 in
ultimate

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$615.00
$615.00 / 1 Each

Technical Data

Maximum wall thickness
11-13/16 in
Product Class
Ultimate
Outside diameter (flange)
6.7 in
Application temperature range
23 - 122 °F
Storage and transportation temperature range
23 - 122 °F
Temperature resistance range
-22 - 167 °F

Documents

Brochure
Documentation
Schematic
Technical information
Test Report
Sustainability Documentation
Operating Instruction
pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]

Features & Applications

Features

  • Functional and compliant when properly installed
  • Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
  • Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
  • Superior smoke tightness and airflow control thanks to its twisting mechanism
  • Smoke gaskets eliminate need for sealant or putty

Applications

  • Sealing penetrations for single cables and cable bundles
  • Suitable for small to medium-sized circular openings in walls and ceilings
  • For use on drywall, concrete, masonry and sandwich panel
  • The ideal solution when cable configurations are regularly changed, such as in data centers, server rooms, hospitals, event halls or production plants
