CP 648-E firestop endless wrap strips

Configurator
Technical Data
Documents
Features & Applications
Related Products

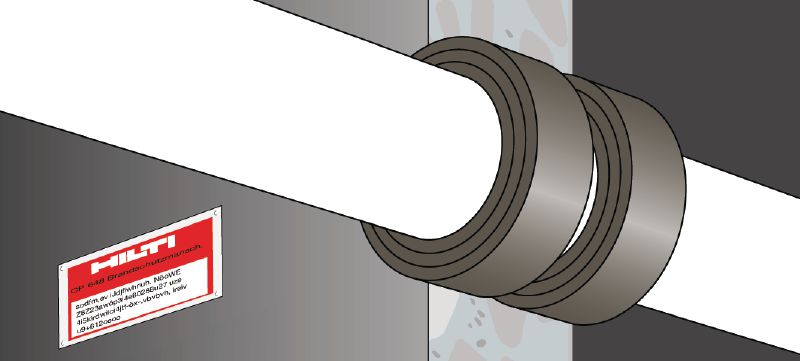

CP648 E Firestop picto,illustration,wrap strip,endless
11820.tif
CP 648 pipe wo ID plate
CP648 E Firestop picto,illustration,wrap strip,endless

Intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations

  • Base materials: Concrete, Masonry, Gypsum
  • LEED VOC: 7.6 g/l
  • Expansion ratio (unrestricted, up to): 1:19
ultimate

Customers also searched for plastic pipe, collar, flexible or tape.

Choose options

Nominal pipe diameter
  • 1 in
  • 1-3/4 in
Width
  • 1 in
  • 1-25/32 in
Length
  • 393-11/16 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $457.00

Technical Data

Base materials
Concrete, Masonry, Gypsum
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (Approx.)
410 °F
Can be painted
No
Length
393-11/16 in
Product Class
Ultimate
Application temperature range
23 - 122 °F
Storage and transportation temperature range
23 - 122 °F
Temperature resistance range
-4 - 212 °F
Application
Other

Documents

Documentation
Certificate
Schematic
Approval document
Specification Text
Technical information
Operating Instruction
Sustainability Documentation
pdf Material Information Statement for Firestop Products, English [ 80.3 KB ]

Features & Applications

Features

  • Quicker and easier installation – no hooks, anchors or drilling
  • Installed inside the base material – ideal when space and access are limited
  • Endless solution – one product for most penetrant sizes

Applications

  • An intumescent, flexible firestop wrap strip for combustible pipe penetrations
  • Concrete, masonry floor and gypsum wall assemblies

For approval or certificate information, please see individual items.
