CFP-ES Endo-Shield

Configurator
Technical Data
Documents
Features & Applications
Related Products

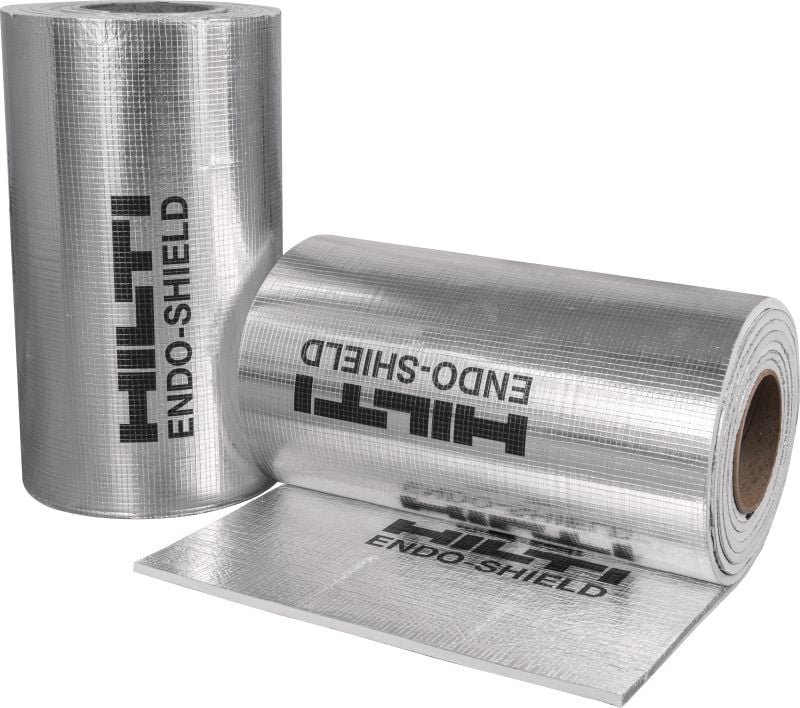

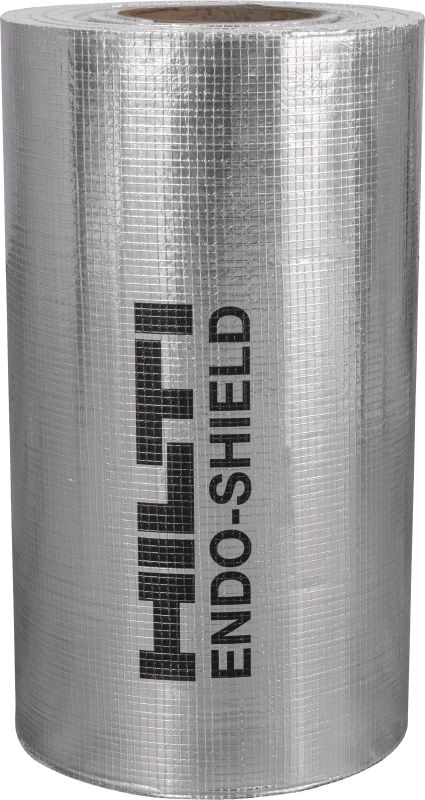

CFP-ES endo-shield still life shot.
CFP-ES endo-shield still life shot.

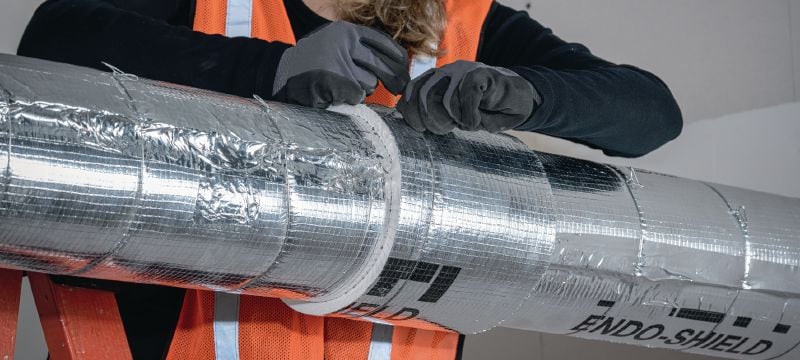

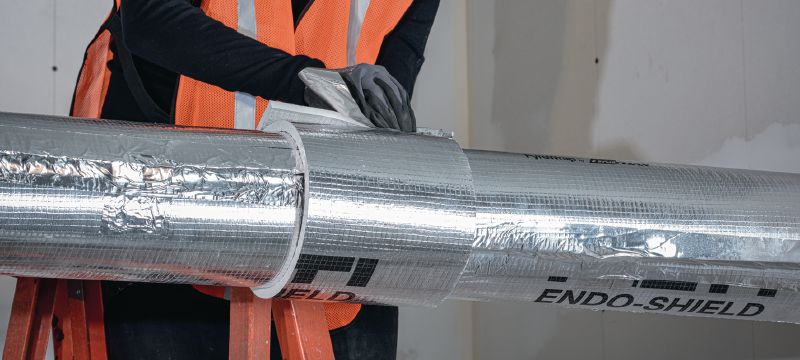

Female jobsite worker wrapping and applying CT CFP endo-shield

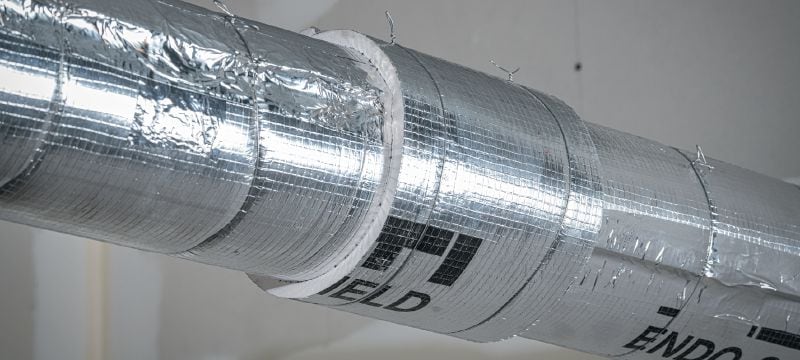

CFP-ES endo-shield application shot.

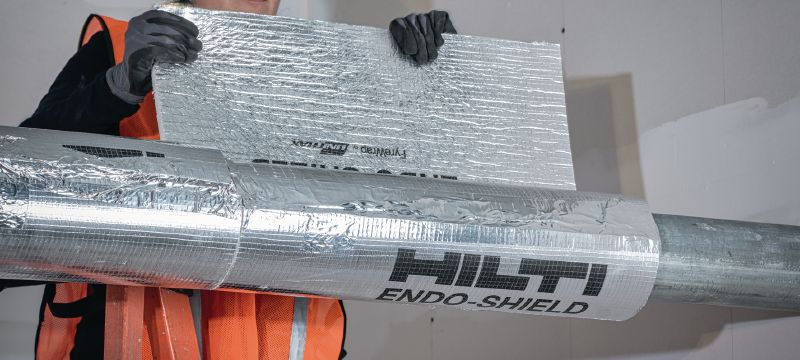

Female jobsite worker wrapping and applying CT CFP endo-shield

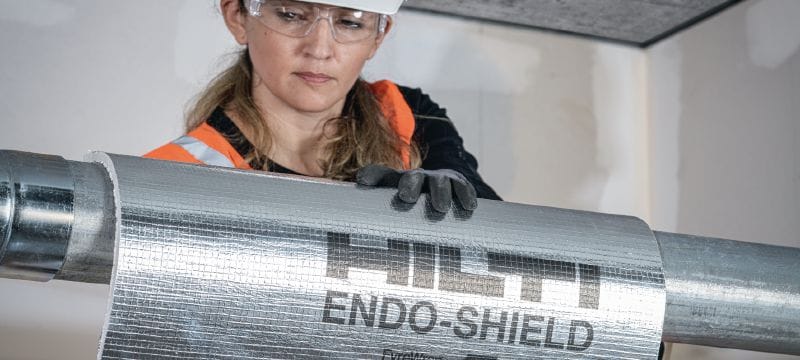

Female jobsite worker preparing CFP-ES endo-shield
Female jobsite worker wrapping and applying CT CFP endo-shield
Female jobsite worker wrapping and applying CT CFP endo-shield

High-temperature endothermic mat for passive fire protection of critical cable circuits, fuel lines, communication systems and many other MEP systems

  • Thickness: 0.5 in
  • Weight: 54.4 lb
  • Application temperature range: 14 - 122 °F

Customers also searched for endothermic wrap, fire protection, electrical protection, endoshield or circuit protection.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $730.00

Technical Data

Thickness
0.5 in
Weight
54.4 lb
Application temperature range
14 - 122 °F
Application temperature range (with sealant)
35 - 104 °F
Color
silver/white
Density
32.6 lb/ft³
Storage and transportation temperature range
-4 - 122 °F
Material Type
Low Bio persistent fibers (non- carcinogenic)

Documents

Technical information
Schematic
Certificate
CAD/BIM Typicals
Approval document
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Product Data Sheet (US_CA_ENG) for CFP-ES ENDO-SHIELD, English [ 319.3 KB ]
pdf CFP-ES Endo-Shield Application Guide_EN, English [ 11.7 MB ]

Features & Applications

Features

  • Hilti Endo-Shield is the industry’s first LBP (Low Bio Persistent) endothermic mat for passive fire protection. Low bio persistent materials allow fibers to easily clear from the lungs compared to ceramic fibers, resulting in a safer non-carcinogenic product for the installer
  • Faster, easier fire protection – high flexibility and low weight makes Hilti endothermic mat a more efficient solution, especially for small diameter pipes
  • Helps to lower total installed cost – this simpler method can translate to significant labor and time savings on-site compared to traditional fire protection solutions
  • Safer jobsites – Hilti endothermic mat is made using non-carcinogenic LPB fibers, removing a common safety hazard for installers
  • Extensive third-party performance verification – tested to ASTM E1725 for circuit integrity and UL1489 for fuel pipe protection

Applications

  • Fire protection of critical infrastructure, circuits and Distributed Antenna Systems (DAS) which should remain operational under fire conditions
  • Protecting fuel oil piping from fire – such as for backup generators
  • Fire protection of large membrane penetrations – such as recessed electrical boxes/panels in rated barriers, fire extinguisher cabinets or medical gas box outlets
  • Increasing the T rating of conduit, EMT or pipe penetrations – such as through floors in electrical, data or mechanical rooms

For approval or certificate information, please see individual items.
