X-U 15 / 20 MXSP Steel nails

Configurator
Technical Data
Documents
Features & Applications
Related Products
L026945_X_U_15_MX.tif

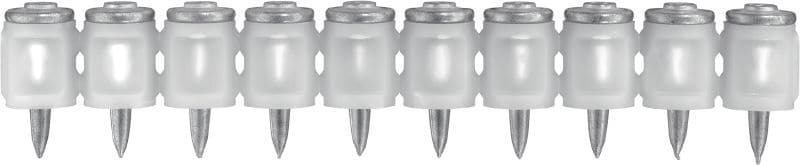

Collated nail for fastening to steel using powder-actuated nailers

  • Base materials: Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Minimum thickness of base material (steel): 1/4 in
premium

Customers also searched for heavy duty steel nail, steel fastener, magazine nail for steel, steel attachments or high performance steel fastener.

Choose options

Fastener shank length
  • 9/16 in
Pack size
  • 1 pc
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $799.00

Technical Data

Base materials
Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
1/4 in
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
0.14 in
Point type
Ballistic point, knurled
Approvals
COLA, ICC-ES
For use with (tools)
DX 351, DX 5, DX 6
Product Class
Premium

Documents

Technical information
Approval document
Sustainability Documentation
Operating Instruction
Material safety datasheet
pdf Product Technical Guide Excerpt for X-P Premium Concrete Fasteners and X-U Universal Knurled Shank Fasteners, English [ 1.2 MB ]
pdf Product Technical Guide Excerpt for General Application Fasteners, English [ 663.7 KB ]
pdf Product Technical Guide Excerpt for Drywall Track Fastening Systems, English [ 480.1 KB ]

Features & Applications

Features

  • Strips of 10 collated nails – for extremely high productivity and easier fastener loading
  • Recommended for use on hard steel
  • Stepped and knurled shank for the highest application limit
  • Highest hardness allows penetration of hard materials without bending
  • "Screw" effect for a secure hold and high loading capacity on steel

Applications

  • Tacking composite deck on steel ≥ 6 mm
  • Tagging labels
  • Fastening to steel

For approval or certificate information, please see individual items.
