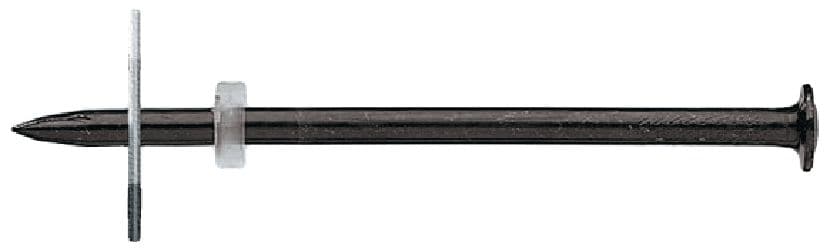

X-CF S23 Concrete nails with washer

Single nail with steel washer for use with powder actuated tools on concrete

  • Base materials: Concrete (soft), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanized zinc coated <20 µm

Technical Data

Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Washer size
29/32 in
Point type
Cut point
Approvals
COLA, ICC-ES
For use with (tools)
DX 2, DX 5, DX 6

Documents

Features & Applications

Features

  • 23 mm steel washer – clamps wood to concrete
  • Suitable for economical wood installation with Hilti's powder-actuated tools and cartridges

Applications

  • Attaching 2x4s (non-punctuated) to concrete

For approval or certificate information, please see individual items.
