X-CP S23 Sill plate nails (with washer)

Configurator
Technical Data
Documents
Features & Applications
Related Products
ca00470.tif
X-CP

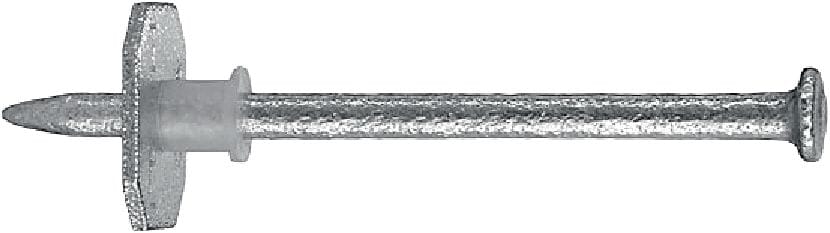

Single nail for fastening sill plate to concrete using powder-actuated nailers

  • Base materials: Concrete (soft)
  • Minimum thickness of base material (concrete): 80 mm
  • Environmental Conditions: Dry indoor
premium

Choose options

Fastener shank length
  • 2-13/16 in
  • 2-7/8 in
Pack size
  • 1 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $71.25

Technical Data

Base materials
Concrete (soft)
Minimum thickness of base material (concrete)
80 mm
Environmental Conditions
Dry indoor
Material
Hardened steel
Fastener shank diameter
3.7 mm
Washer size
29/32 in
Point type
Cut
For use with (tools)
DX 2, DX 5, DX 6
Product Class
Premium

Documents

Technical information
Approval document
Operating Instruction
Material safety datasheet
pdf Product Technical Guide Excerpt for Sill Plate Fastening Systems, English [ 324.2 KB ]

Features & Applications

Features

  • Sill plate fasteners with 0.905" (23 mm) 16 gauge washer for faster and more reliable installation
  • Additional plastic washer to minimize coating damage by the washer during installation
  • Economical solution for installation with Hilti's powder-actuated tools and cartridges
  • Washer clearly stamped and marked for easier inspection in installed condition
  • Large steel washer minimizes wood damage

Applications

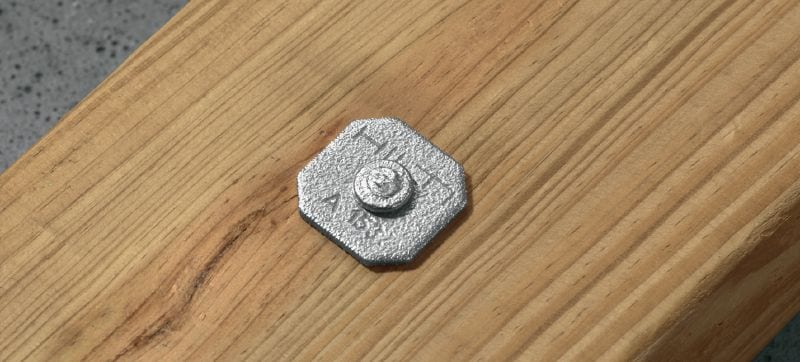

  • Attaching wood sill plates to concrete
  • Fastening chemical pressure-treated lumber to concrete
  • Fastening 2 x 4 lumber to concrete

For approval or certificate information, please see individual items.
