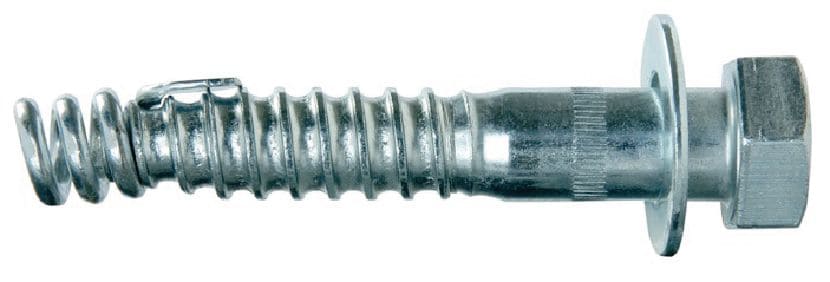

HCA Coil anchor
Economical coil anchor for temporary fastening in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Base materials: Concrete (uncracked)
Customers also searched for tilt wall bracing or screw anchor.
Choose options
Anchor size - D
- 3/8 in
- 1/2 in
- 5/8 in
- 3/4 in
Anchor length - L
- 2-1/4 in
- 3 in
- 3-1/2 in
- 4 in
- 4-1/2 in
- 5 in
- 5-1/2 in
- 6 in
- 7 in
- 8 in
- 10 in
Pack size
- 1 pc
- 10 pc
- 20 pc
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $211.00
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Base materials
Concrete (uncracked)
Type of fixing
Through-fastening
Reusable (and removable)
Yes
Cleaning procedures
Manual Cleaning
PROFIS Software
No
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Multiple-use design offers practical and cost-effective fastening solution
- Easily removable because only the coil remains in the hole
- Hex bolt head style for convenient installation with either SIW 22T-A/SIW 18T-A impact wrench or torque wrench
Applications

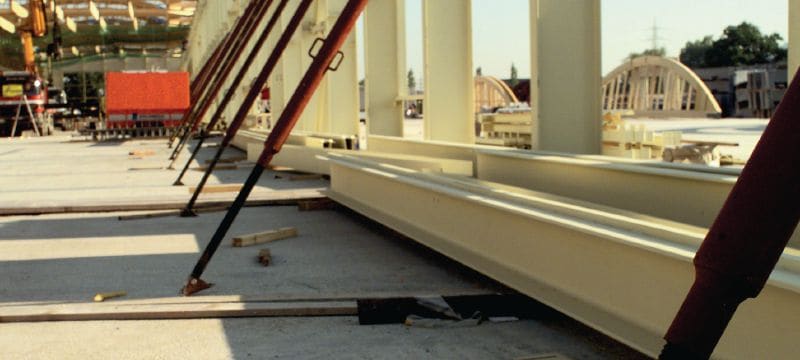

- Fastening braces to support tilt-up and formwork
- Non-specified, temporary fastenings
For approval or certificate information, please see individual items.
Related Products
Ultimate SDS Plus (TE-C) hammer drill bit for anchor drilling into reinforced concrete (imperial)
Economical, multiple-use replacement coils for reusing HCA coil anchors in a new drill hole
