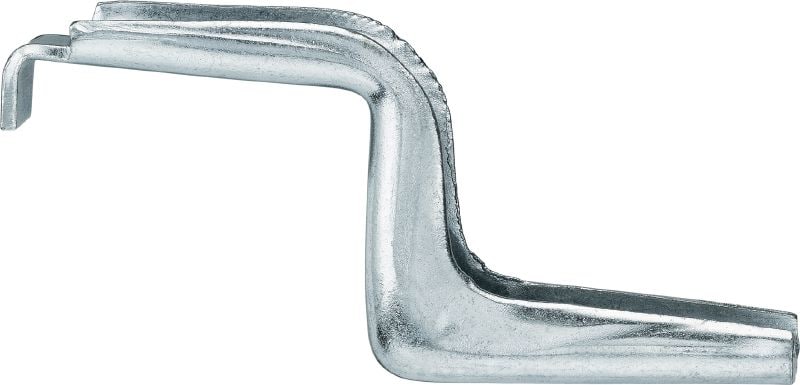

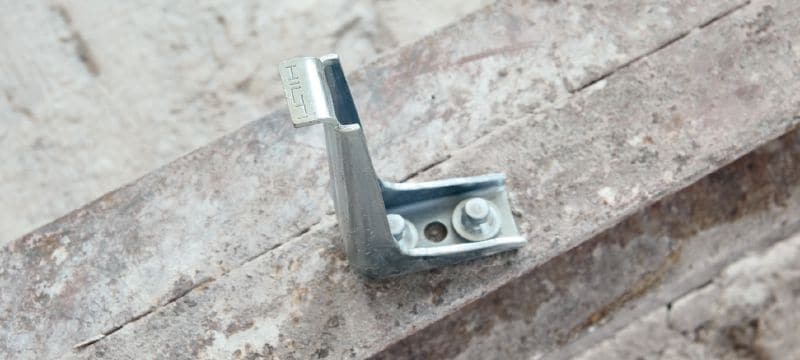

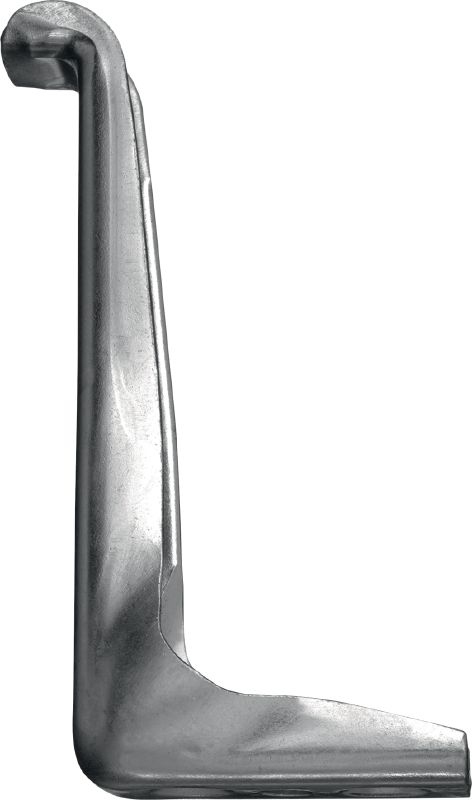

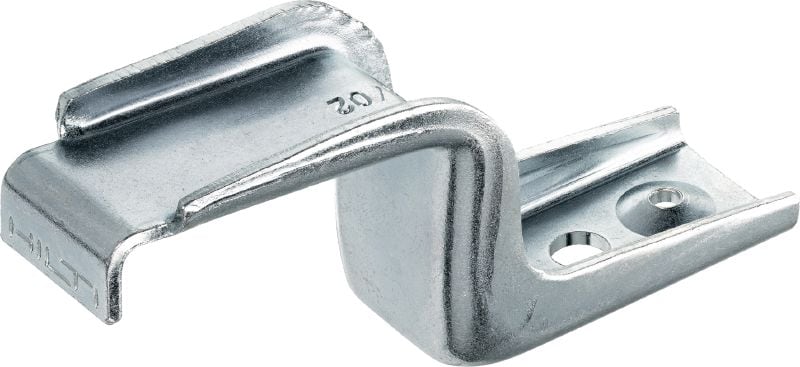

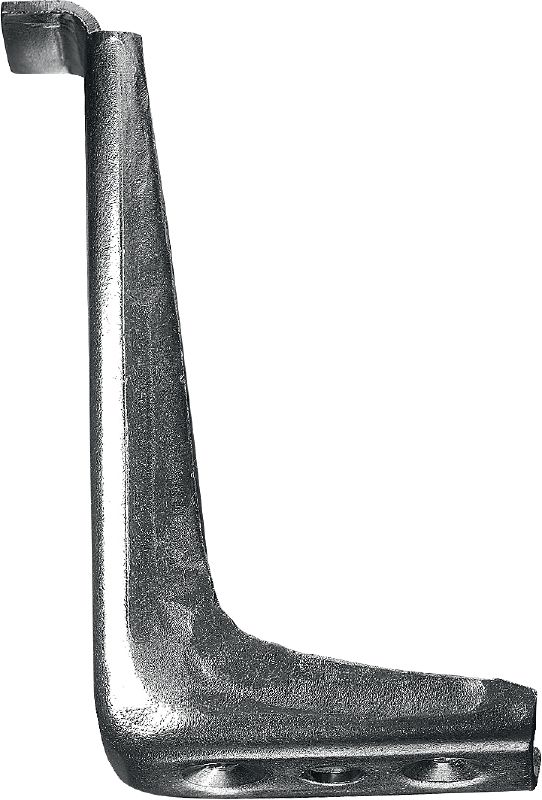

Shear connector for composite beam constructions

  • Application: Metal deck

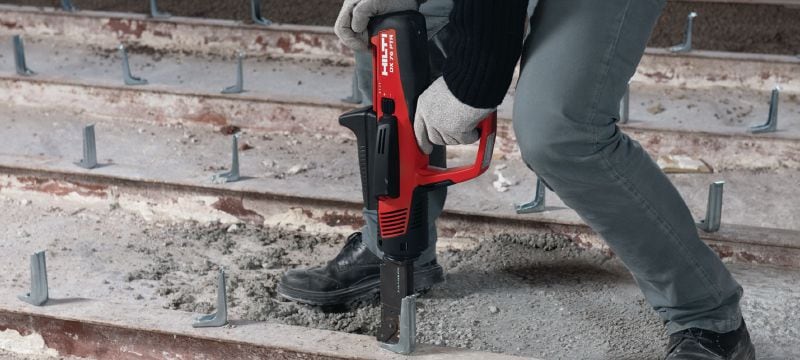

  • For use with (tools): DX 76
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Customers also searched for floor deck shear connectors or powder actuated shear connectors.

Choose options

Height
  • 3.1 in
  • 3.7 in
  • 4.4 in
  • 5 in
  • 5.6 in
Fastener shank length
  • 1 in
Length
  • 60 mm
  • 63 mm
Pack size
  • 120 pc
  • 125 pc
  • 200 pc
  • 250 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $748.00

Technical Data

Application
Metal deck
For use with (tools)
DX 76
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Approvals
DIBt, SCI, Socotec, TZUS
Base materials
Steel
Product Class
Ultimate

Documents

Features & Applications

Features

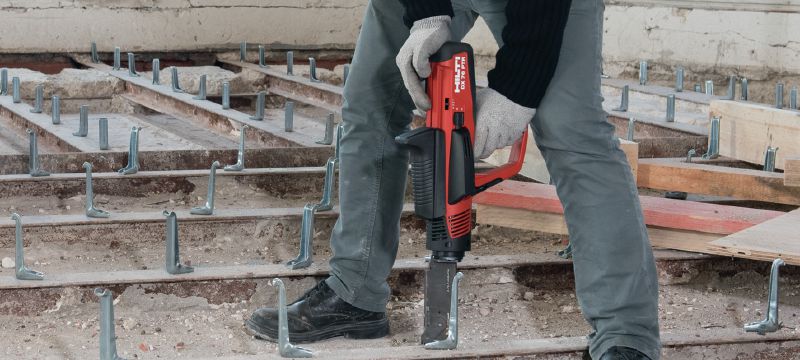

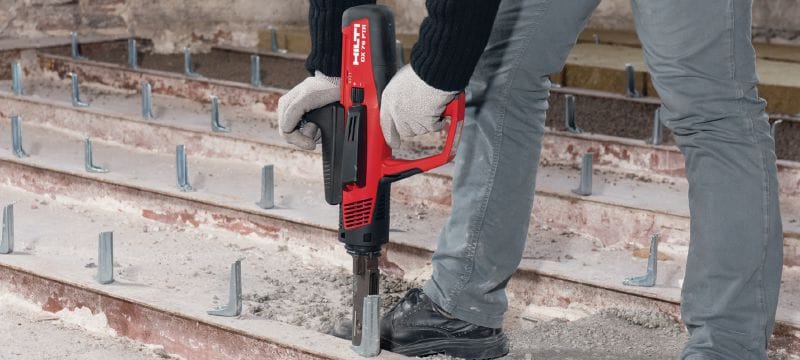

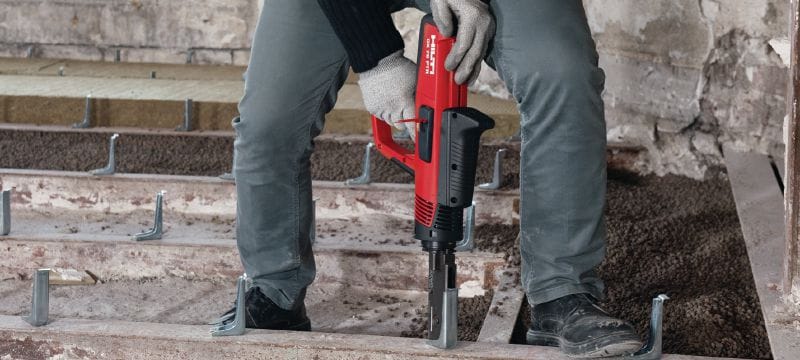

  • Economical alternative to stud welding – no expensive equipment required
  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables

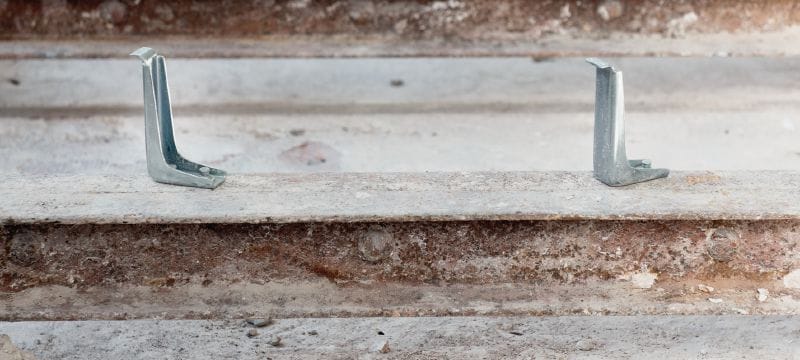

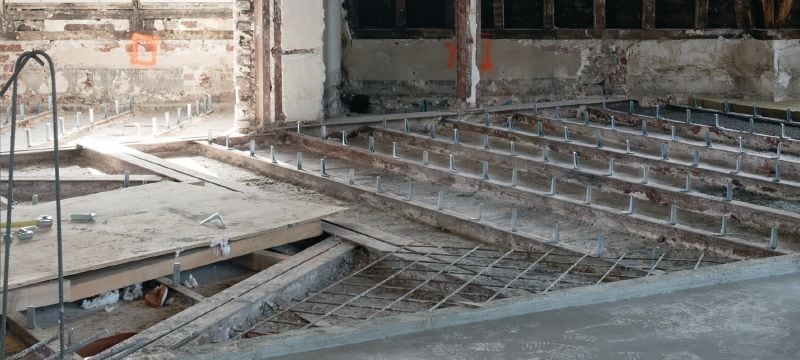

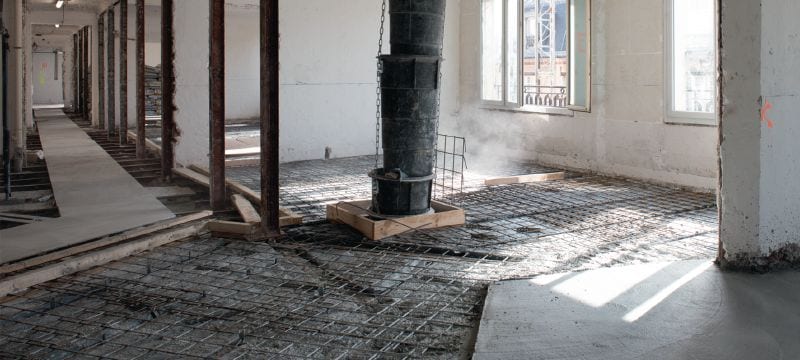

  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick set-up and usable in all weather conditions

Applications

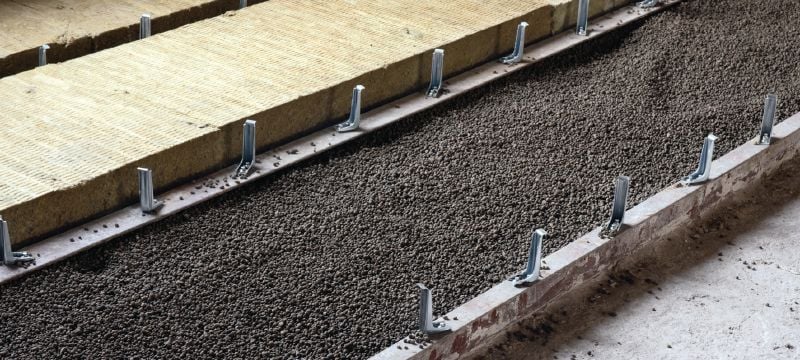

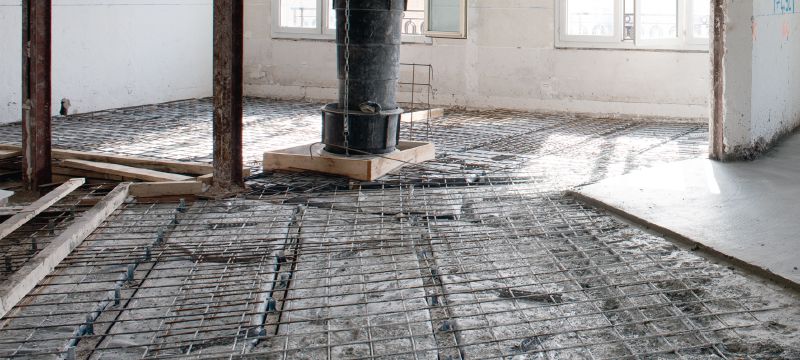

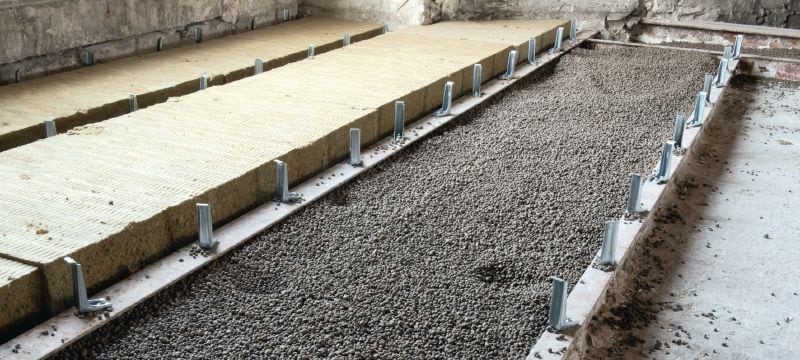

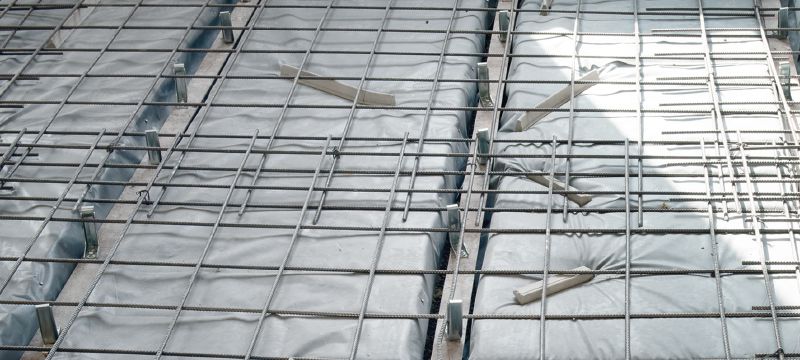

  • Holding concrete slabs to steel structures to resist shear forces and increase shear loading capacity in composite structures
  • Can be used on galvanized and painted beams

For approval or certificate information, please see individual items.
