DX 76 Powder-actuated tool
Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks
- Dimensions (LxWxH): 17.7 x 4 x 13.9 in
- Weight: 9.6 lb
- Fastener Intake: Collated
Technical Data
Dimensions (LxWxH)
17.7 x 4 x 13.9 in
Weight
9.6 lb
Fastener Intake
Collated
Fastener length range
0.75 - 0.83 in
Cartridge type
6.8/18 M10
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
609 J
Power regulation
Yes
Piston type
X-76-P-ENP
Documents
Features & Applications
Features
- Outstanding ergonomic design – padded, non-slip cycling grip and excellent balance means less fatigue during use
- Built-in safety mechanisms – for safer and more reliable operation
- Easy to clean and maintain on jobsites
- Ruggedly built to withstand extreme use
- Adjustable power regulator – precise control for more reliable fastenings
Applications
- Fastening composite metal decks to steel structures with a minimum thickness of 6 mm (1/4") for composite decking

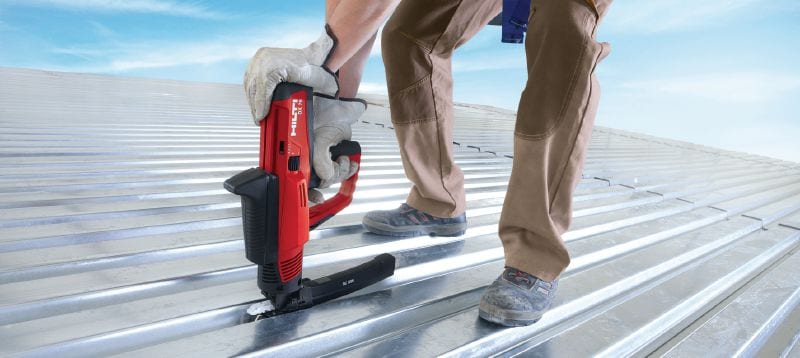

- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

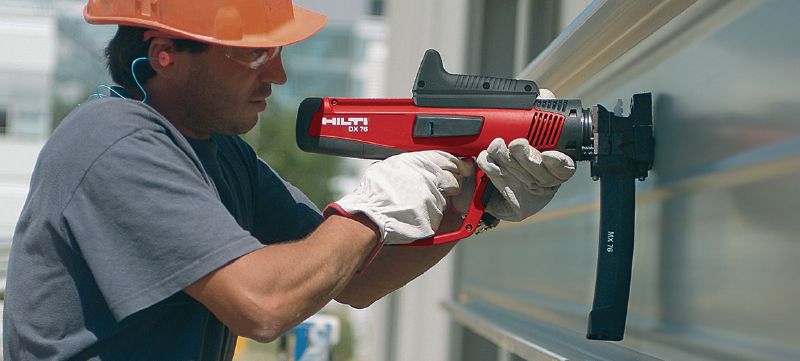

- Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
- Fastening grating elements to steel structures using grating accessories
- Fastening shear connectors on steel structures with HVB accessories
For approval or certificate information, please see individual items.
