HVU2 Anchor capsule

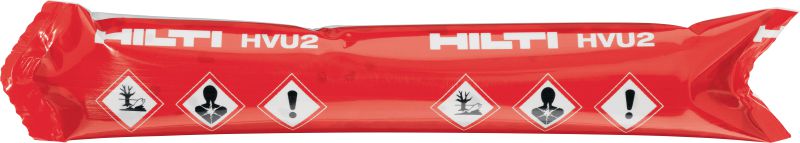

Ultimate performance foil adhesive capsules for heavy duty anchoring in concrete. New template with GHS signs

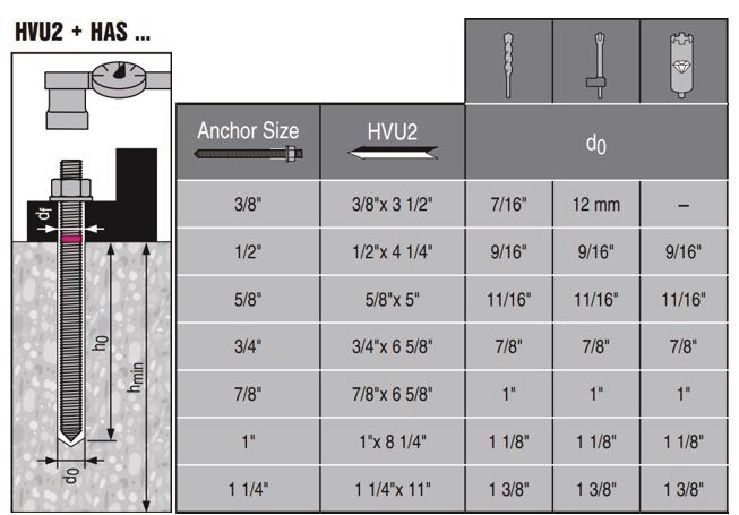

Selector of the HVU2 anchor capsule + HAS to help the customer choose the right product online.

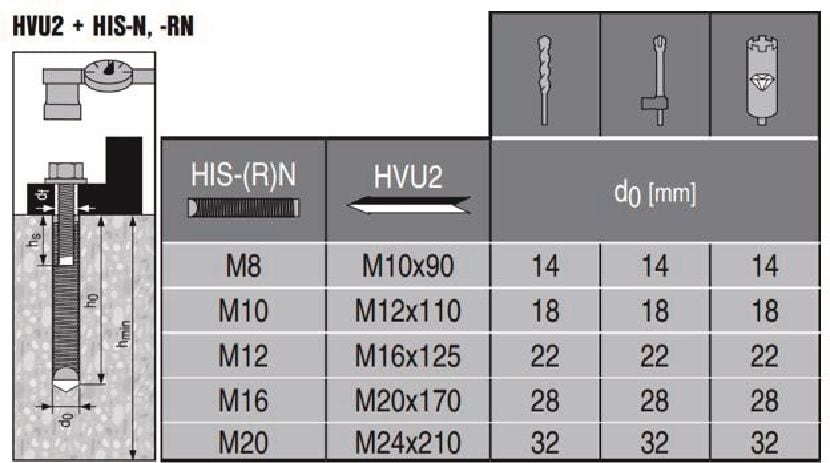

Selector of the HVU2 anchor capsule + HIS to help the customer choose the right product online.

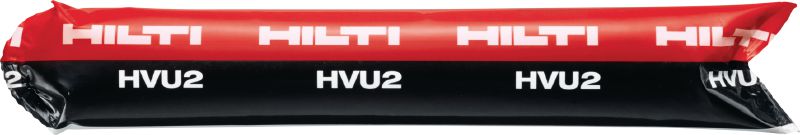

HVU2 capsule anchor system picture

High performing foil capsule for heavy-duty applications in concrete in combination with HAS-B, HAS-E & HAS-R threaded rods and HIS-N internally threaded rods (sold separately)

  • Anchoring elements: HAS-U threaded rods, HIS-N internally threaded rods
  • Approvals / Test reports: ETA, Fire, Seismic
  • Base material condition (as per approval): Dry

Choose options

Anchor size - D
  • 3/8"
  • 1/2"
  • 5/8"
  • 3/4"
  • 7/8"
  • 1"
  • 1 1/4"
Standard embedment depth
  • 3.5 in
  • 4.25 in
  • 5 in
  • 6.625 in
  • 8.25 in
  • 11 in
Return Policy
  • No Returns
Pack size
  • 1 pc
  • 4 pc
  • 5 pc
  • 8 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Anchoring elements
HAS-U threaded rods, HIS-N internally threaded rods
Approvals / Test reports
ETA, Fire, Seismic
Base material condition (as per approval)
Dry
IBC compliance
IBC 2015, IBC 2018
PROFIS Software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 248 °F
Storage and transportation temperature range
41 - 77 °F
Seismic loading
Yes
Installation direction
All
Cleaning procedures
Manual Cleaning, Non Cleaning

Documents

pdf ETA 16/0515 HVU2 capsule, English, German, Polish [ 5.6 MB ]
pdf ICC ESR-4372 for Hilti HVU2 Adhesive Capsule System In Cracked and Uncracked Concrete , English [ 2.1 MB ]

Features & Applications

Features

  • Suitable for cracked concrete and in seismic conditions – even in diamond cored holes included in ESR-4372 for sizes 1/2" to 1 1/4"
  • Soft foil capsules are much tougher and more resilient than glass capsules – little to no risk of breakage
  • Can be installed using impact drivers, drill drivers and hammer drills

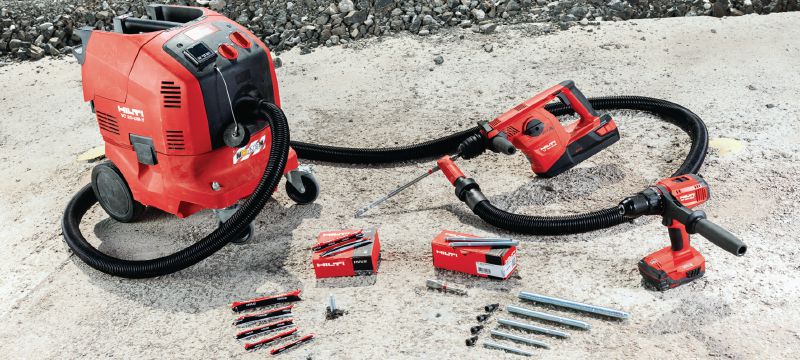

  • Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
  • High performance in seismic and static conditions in cracked and uncracked concrete

Applications

  • Anchoring steel structures (e.g. racking, guard rails, fences and gates)
  • Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
  • Anchoring applications requiring seismic qualification
  • Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
  • Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)

For approval or certificate information, please see individual items.
