HAC-V Front-of-slab rebar channel

r9196970, 9192357, HAC Anchor Channel with Rebar for Front of Slab Applications w/o foam

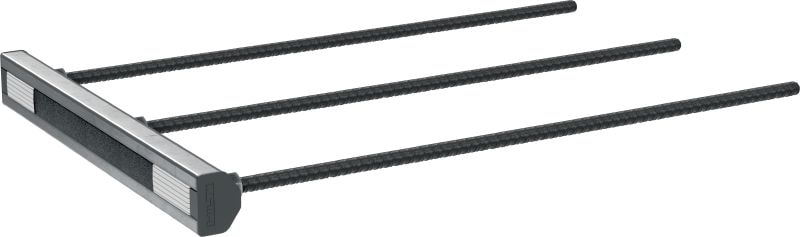

HAC-V Rebar XTS isometric

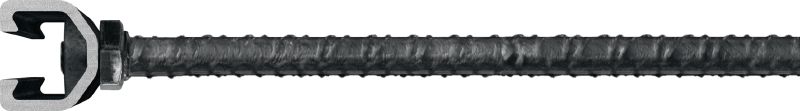

HAC-V Rebar XT isometric

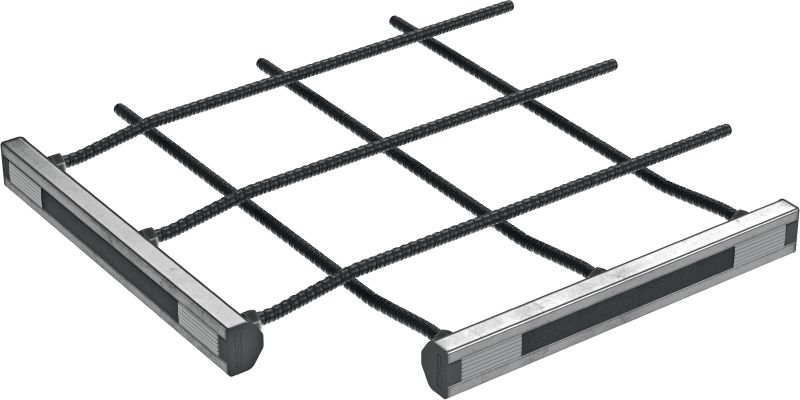

HAC-V Rebar XT isometric

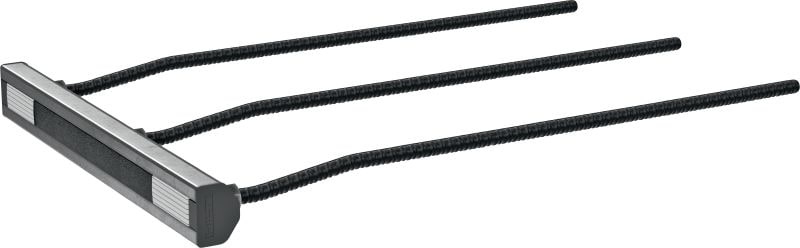

HAC-V Rebar XT sideview

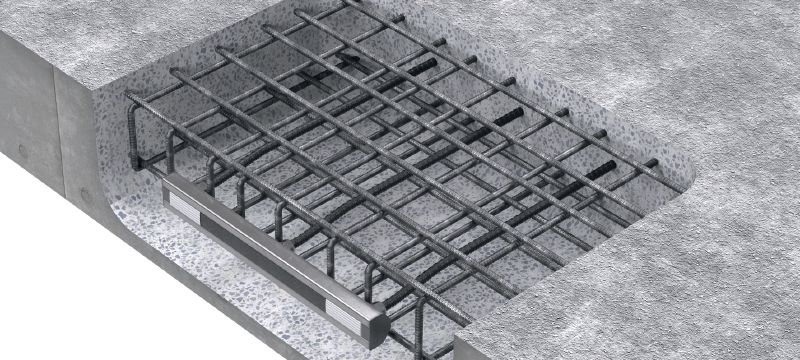

Position of HAC-V Rebar XTS in thin concrete slab for thin slab application.

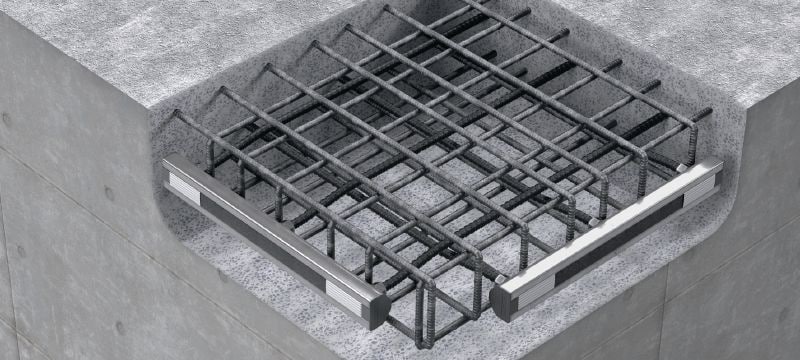

Example of corner application HAC-V Rebar XT in corner of slab

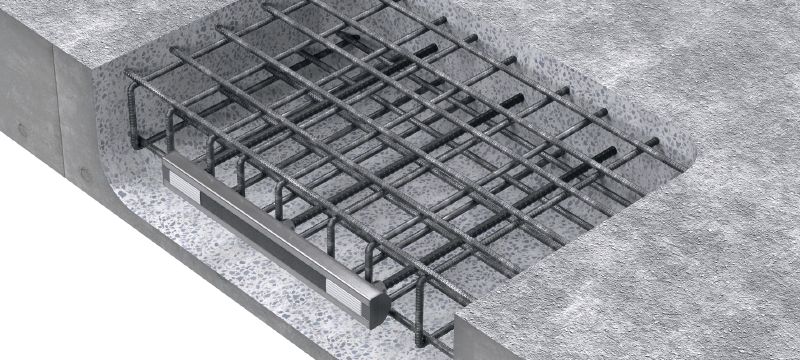

Example of HAC-V Rebar XT in thin concrete slab application.

Cast-in anchor channels for front-of-slab applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanized
  • Channel profile: HAC-V 50, HAC-V-T 50, HAC-V-T 70, HAC-V 70
  • PROFIS Software: Yes

Choose options

Material, corrosion
  • Carbon Steel, Hot-Dip Galvanized
Channel profile
  • HAC-V 50, HAC-V-T 50, HAC-V-T 70, HAC-V 70
Length
  • 11.81 in
  • 13.78 in
  • 15.75 in
  • 17.72 in
  • 21.65 in
  • 24.02 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanized
Channel profile
HAC-V 50, HAC-V-T 50, HAC-V-T 70, HAC-V 70
PROFIS Software
Yes

Documents

pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]

Features & Applications

Features

  • Safety-tested system of standard HAC anchor channels in combination with rebar
  • Efficient and intuitive to design with PROFIS Anchor Channel software – a powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements
  • Two separate corner channels cater to the needs of various building angles
  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
  • Engineering support available – use PROFIS Anchor Channel software to streamline the design process, or contact your local Hilti team for project-specific advice

Applications

  • Front-of-slab applications for curtain wall façades in concrete
  • Front-of-slab applications in composite slabs

For approval or certificate information, please see individual items.
