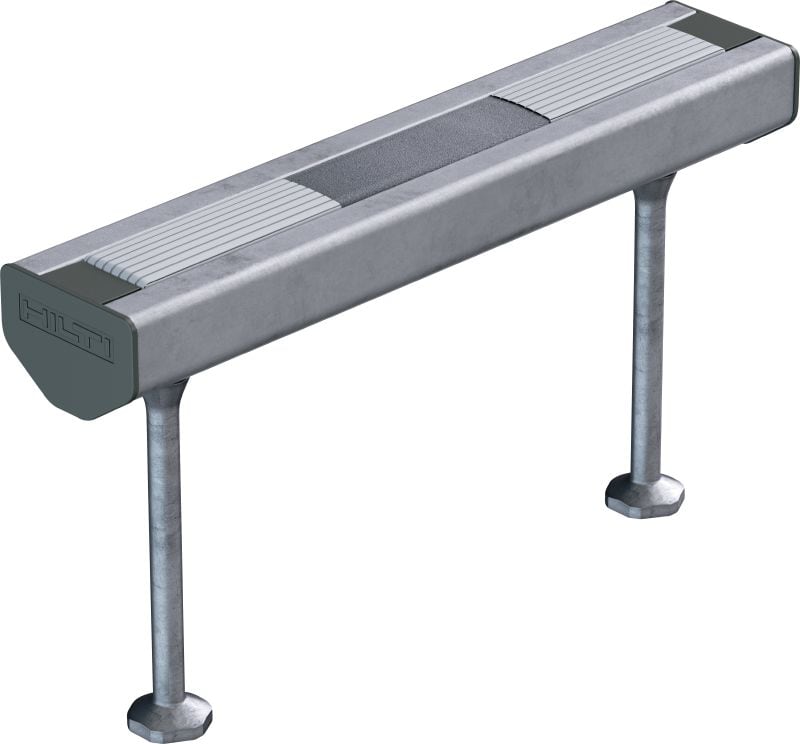

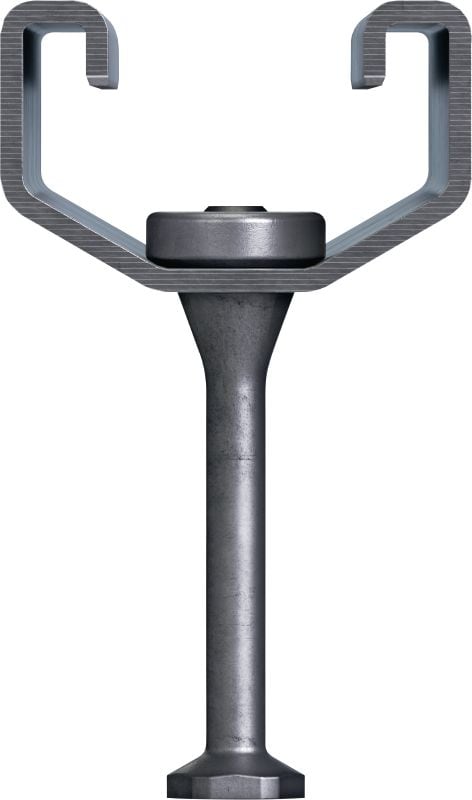

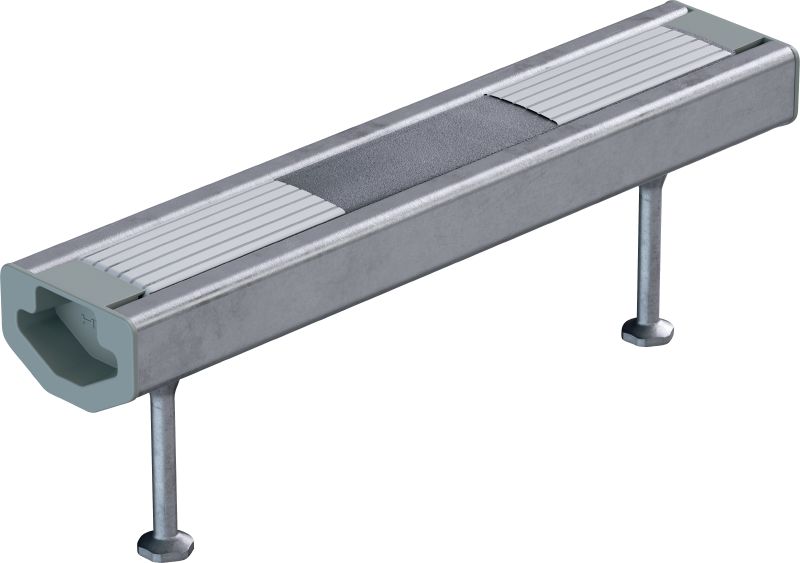

Standard HAC-V Anchor channel

Configurator
Technical Data
Documents
Features & Applications
Related Products

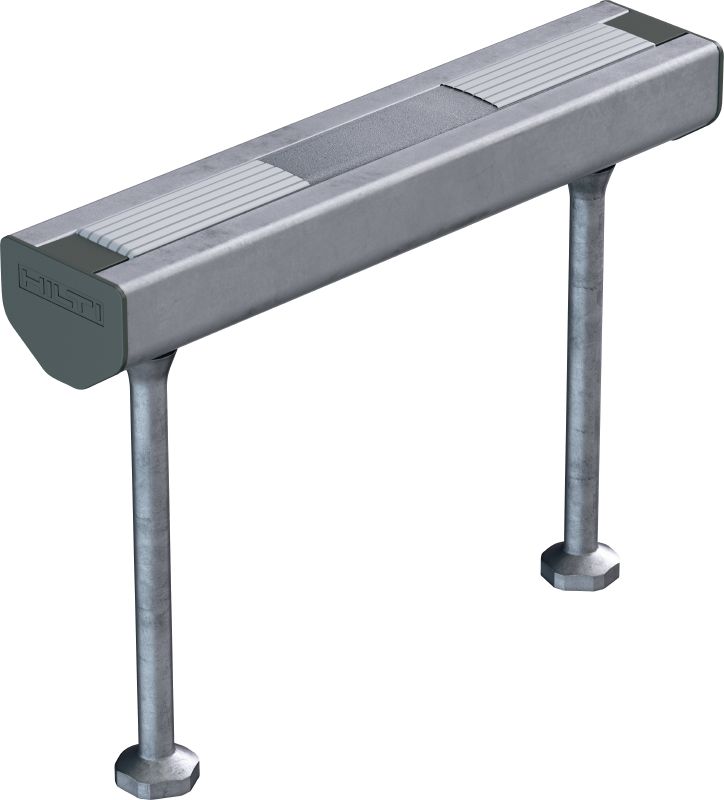

HAC-V 50 anchor channel hef 144mm
HAC-V 35 anchor channel hef 91mm

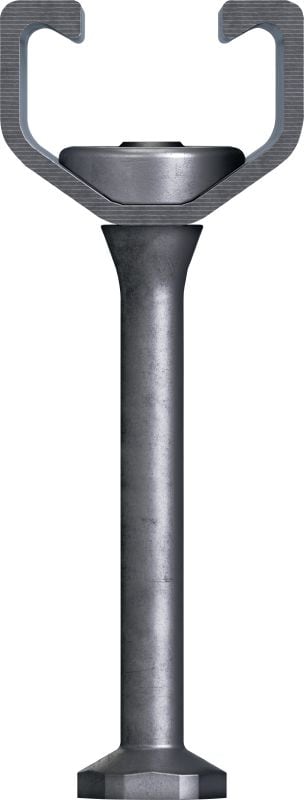

HAC-V-T 30 serrated anchor channel

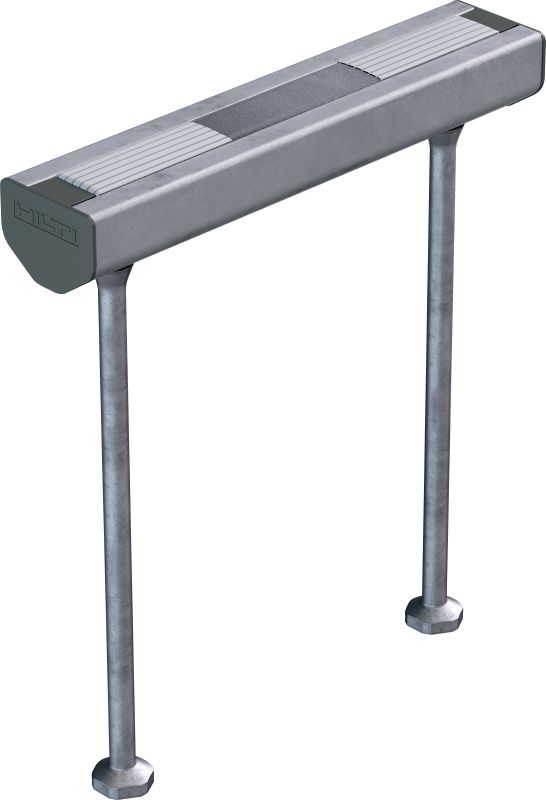

HAC-V 60 anchor channel hef 149mm

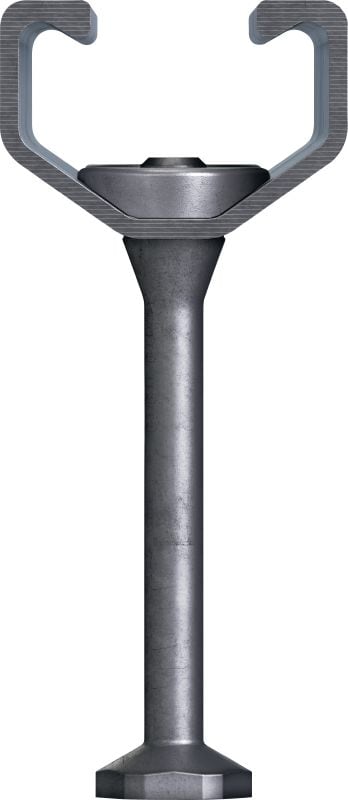

HAC-V-T 30 serrated anchor channel
HAC-V 50 anchor channel hef 106mm
HAC-V 40 anchor channel

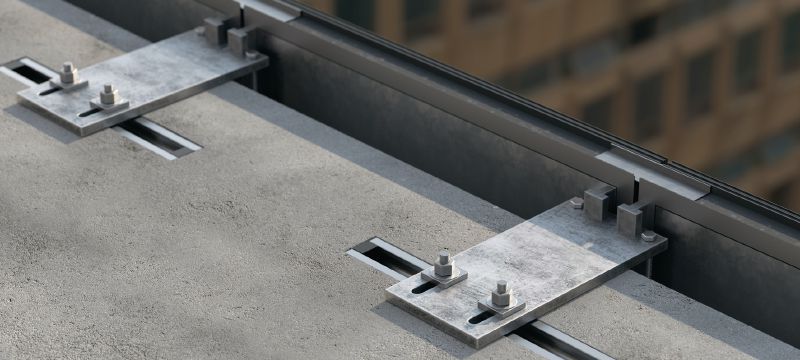

Curtain Wall application with anchor channels

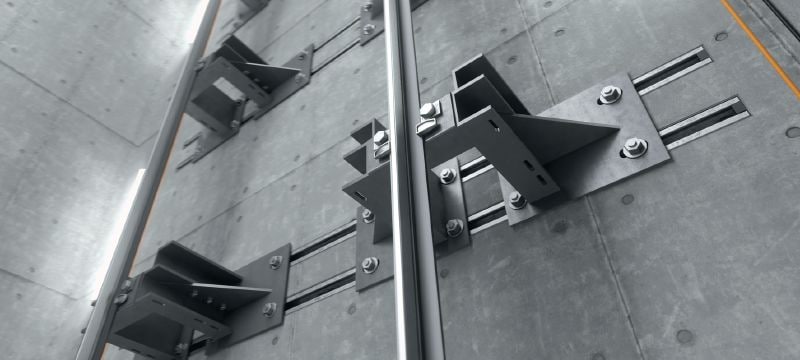

Fastening of elevator brackets with anchor channels

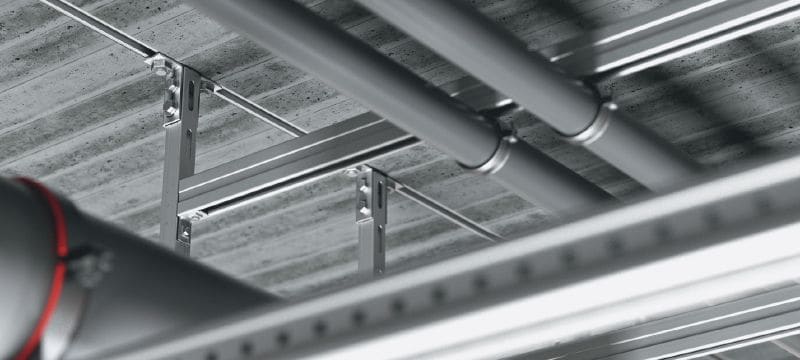

Fastening of ceiling appliances with anchor channels

Cast-in anchor channels with upgraded load capacity and multiple embedment depths for economical fastening of curtain wall façades

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanized
  • Channel profile: HAC-V 50, HAC-V 70, HAC-V 40, HAC-V 35, HAC-V 60
  • PROFIS Software: Yes

Choose options

Channel profile
  • HAC-V 35
  • HAC-V 40
  • HAC-V 50
  • HAC-V 60
  • HAC-V 70
Length
  • 5.91 in
  • 7.87 in
  • 9.84 in
  • 11.81 in
  • 13.78 in
  • 15.75 in
  • 17.72 in
  • 21.65 in
  • 24.02 in
  • 31.5 in
  • 41.34 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $22.50

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanized
Channel profile
HAC-V 50, HAC-V 70, HAC-V 40, HAC-V 35, HAC-V 60
PROFIS Software
Yes

Documents

Approval document
HSE Information
Technical information
CAD/BIM Typicals
Brochure
Documentation
Operating Instruction
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]

Features & Applications

Features

  • Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
  • More economical – higher load capacity and multiple embedment depth options so you can use smaller cast-in channels as needed
  • Engineering support available – use PROFIS Anchor Channel software to streamline the design process, or contact your local Hilti team for project-specific advice
  • Faster, safer, easier – automate setting T bolts by using the Hilti Adaptive Torque system, helping you improve consistency and save time when setting hundreds of bolts
  • ICC-ES approval document for static and seismic available (ICC-ESR 3520)

Applications

  • Fastening curtain wall façades in concrete slabs
  • Fastening in elevator shafts, such as fixing guiderails, sliding doors or divider beams
  • Fastening overhead MEP installations and equipment
  • Fastening building appliances (e.g. ventilation, heating)

For approval or certificate information, please see individual items.
