KCCM-MD S Kwik Cast Connect (multi-thread) cast-in-place anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

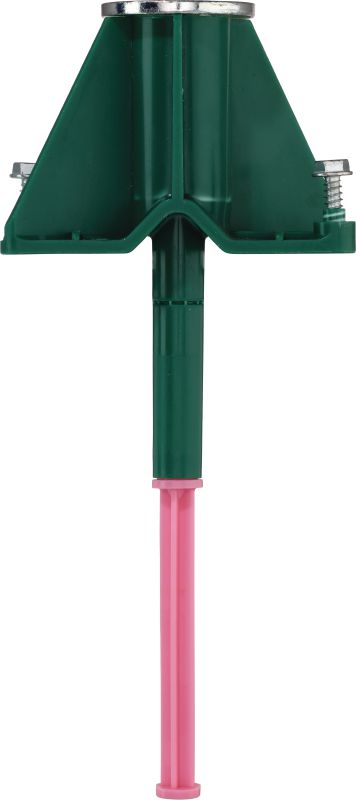

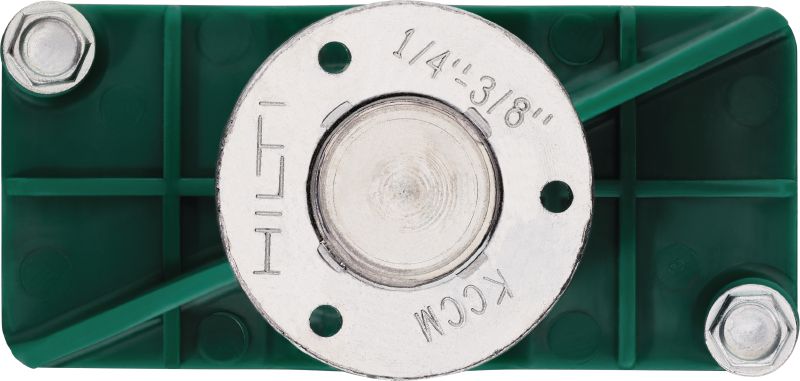

Still life picture of the green KCCM-MD S Kwik-Cast Connect (multi-thread ) cast-in-place anchor, short plate

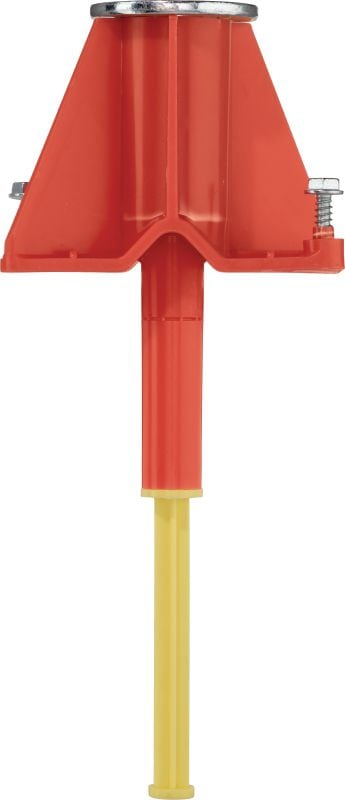

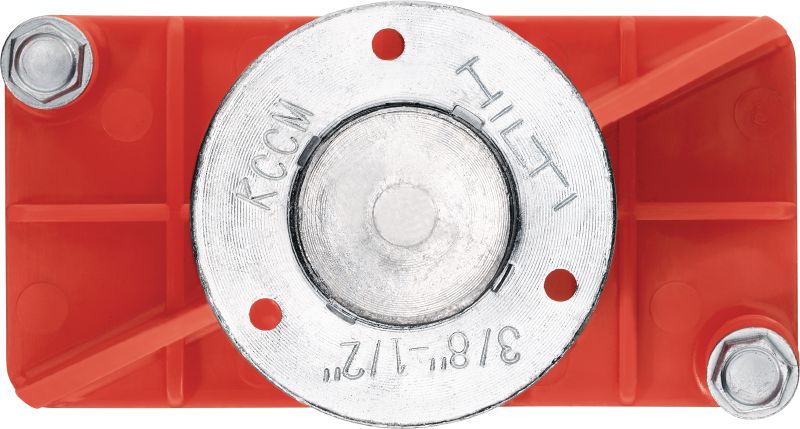

Still life picture of the orange KCCM-MD S Kwik-Cast Connect (multi-thread ) cast-in-place anchor, short plate
Still life picture of the green KCCM-MD S Kwik-Cast Connect (multi-thread ) cast-in-place anchor, short plate
Still life picture of the orange KCCM-MD S Kwik-Cast Connect (multi-thread ) cast-in-place anchor, short plate

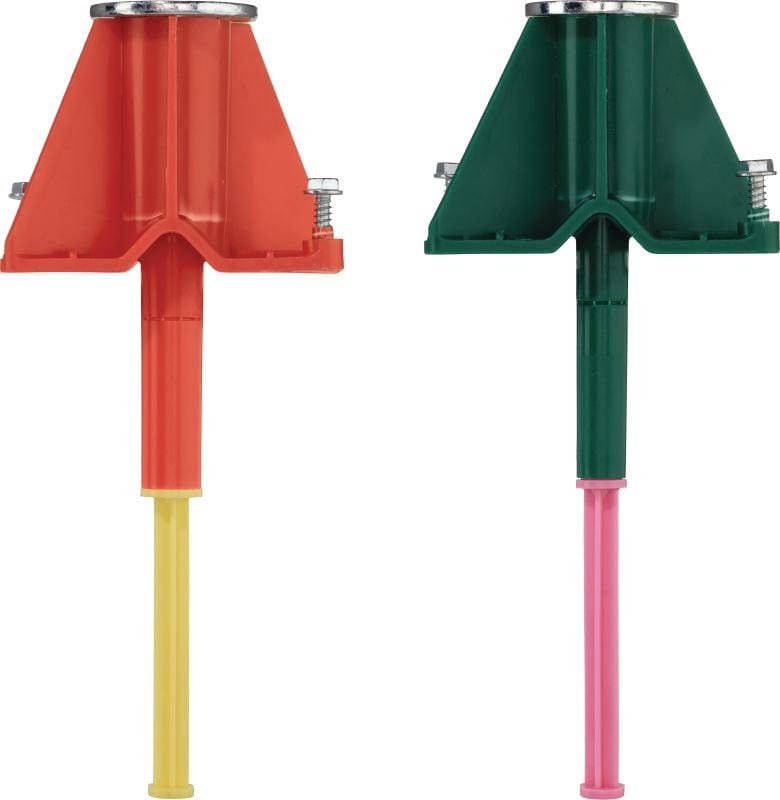

Combination photo of still life of the green and orange KCCM-MD S Kwik-Cast Connect (multi-thread ) cast-in-place anchor, short plate

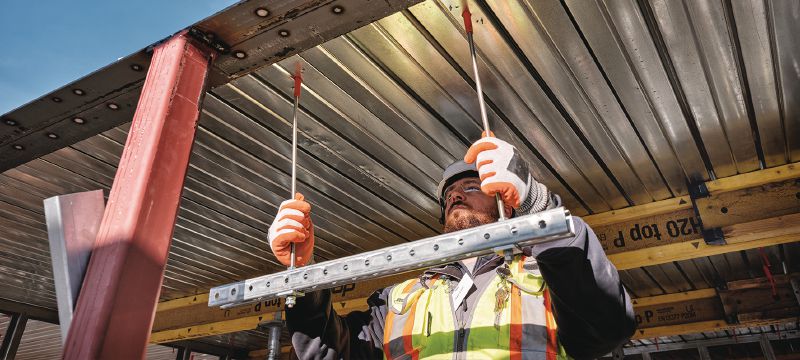

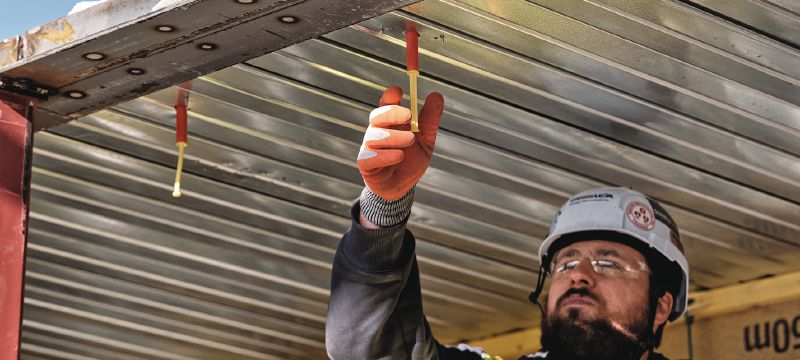

Cropped application image of Construction worker installing threaded rod into KCCM-MD push-to-connect anchors on a metal deck. Golden, CO. 2024.
Cropped application image of Construction worker installing threaded rod into KCCM-MD push-to-connect anchors on a metal deck. Golden, CO. 2024.
Cropped application image of Construction worker using an SID 6-22 + KCM-MD Kwik Cast combo bit to install KCCM-MD S anchors on a snowy metal deck jobsite. Golden, CO. 2024.
Cropped application image of Construction worker using an SID 6-22 + KCM-MD Kwik Cast combo bit to install KCCM-MD S anchors on a snowy metal deck jobsite. Golden, CO. 2024.

Ultimate-performance short plate push-to-connect, cast-in-place anchor with multi-thread for concrete on metal deck with approvals

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Internally threaded, Push-to-Connect (attaching threaded rods by simply pushing it in)
  • Material composition: Carbon steel, Polypropylene

Choose options

Anchor size - D
  • 1/4 in & 3/8 in
  • 3/8 in & 1/2 in
Color (anchor housing)
  • Dark orange
  • Green
Color (plug)
  • Pink
  • Yellow
Pack size
  • 1 pc
  • 40 pc
  • 45 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $305.50

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally threaded, Push-to-Connect (attaching threaded rods by simply pushing it in)
Material composition
Carbon steel, Polypropylene
PROFIS Software
Yes

Documents

Approval document
Certificate
Technical information
Documentation
Operating Instruction
pdf ICC-ES_ESR-4145_Kwik-Cast (KCM-KCC-KCCM), English [ 3.1 MB ]

Features & Applications

Features

  • Optimized for productivity – quick push-to-connect system offers faster installation speed compared with internally threaded cast-in anchors
  • Less time on deck – small drilling diameter and pre-assembled self-tapping screws help reduce installation time
  • 2-in-1 connection – multi-thread configuration offers two rod diameter options in one anchoring point
  • Less re-work – color-coded plastic plugs help protect inner threads from concrete and Monokote® fireproofing
  • Compatible accessories – combine with KCM-MD Combo Bit, 2-in-1 step bit and nut setter for quick and easy installation

Applications

  • Ideal for pre-assembled / pre-fabricated hanger assemblies
  • Pre-installed fastening points for suspending pipes, electrical conduits, cable trays, HVAC ducts and equipment, medical equipment and other overhead elements

For approval or certificate information, please see individual items.
