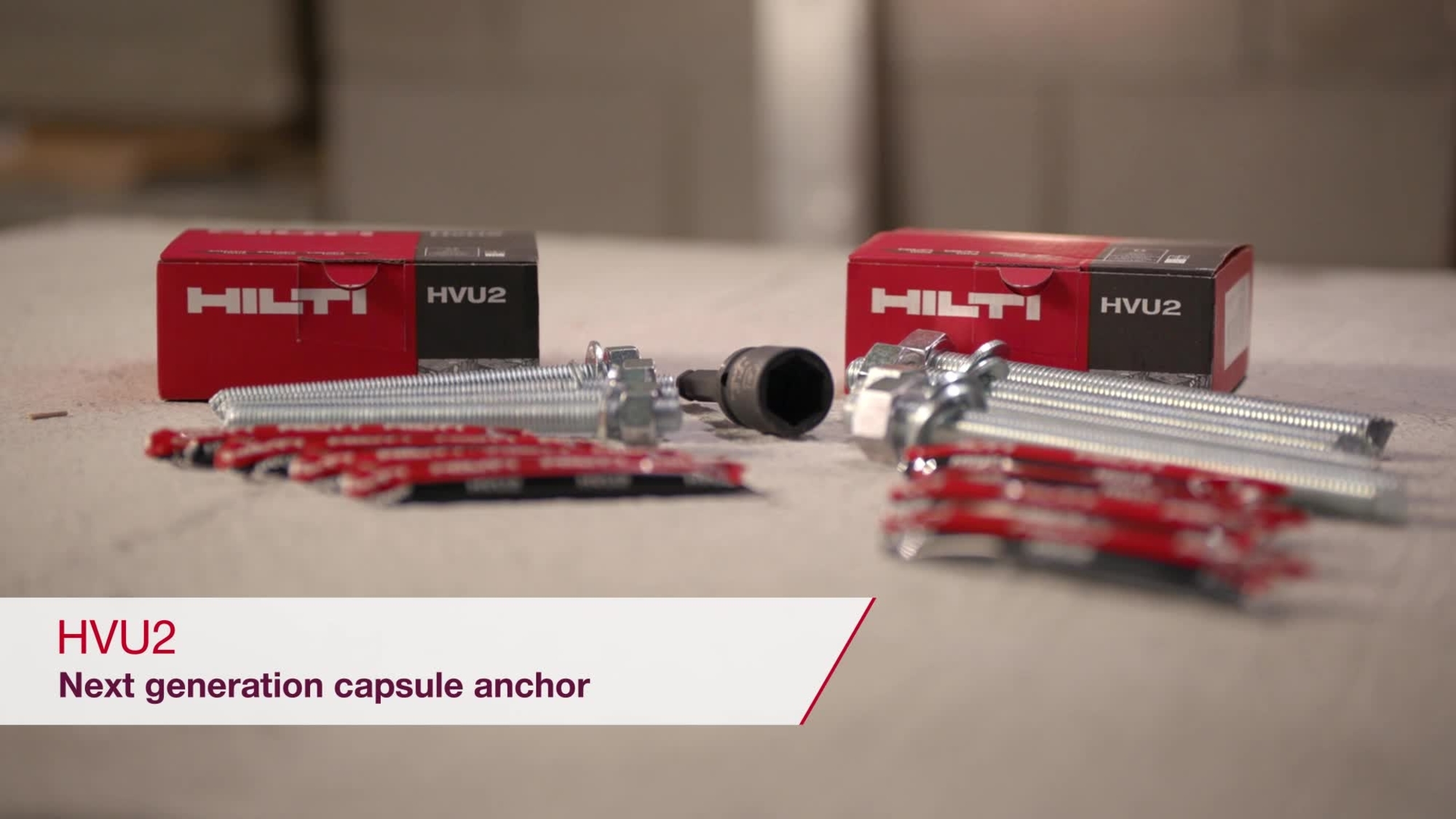

High performing foil capsule for heavy-duty applications in concrete in combination with HAS-B, HAS-E & HAS-R threaded rods and HIS-N internally threaded rods (sold separately)

  • Anchoring elements: HIS-N internally threaded rods
  • Approvals / Test reports: ICC-ES report (concrete), Seismic
  • Base material condition (as per approval): Dry, Wet

Technical Data

Anchoring elements
HIS-N internally threaded rods
Approvals / Test reports
ICC-ES report (concrete), Seismic
Base material condition (as per approval)
Dry, Wet
IBC compliance
IBC 2015, IBC 2018
PROFIS Software
Yes
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 248 °F
Storage and transportation temperature range
41 - 77 °F
Seismic loading
Yes
Installation direction
All
Cleaning procedures
Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning

Documents

Features & Applications

Features

  • Suitable for cracked concrete and in seismic conditions – even in diamond cored holes included in ESR-4372 for sizes 1/2" to 1 1/4"
  • Soft foil capsules are much tougher and more resilient than glass capsules – little to no risk of breakage
  • Can be installed using impact drivers, drill drivers and hammer drills
  • Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
  • High performance in seismic and static conditions in cracked and uncracked concrete

Applications

  • Anchoring steel structures (e.g. racking, guard rails, fences and gates)
  • Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
  • Anchoring applications requiring seismic qualification
  • Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
  • Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)

For approval or certificate information, please see individual items.
