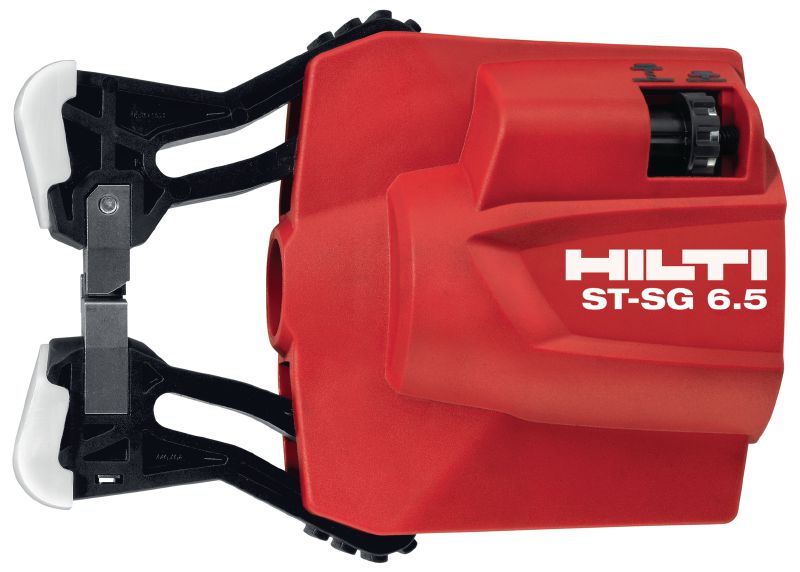

ST-SG Screw guide

Screw guide ST-SG 6.5 #425545

Configurator
Technical Data
Features & Applications
Related Products
Fassade, sandwich panel, siding & decking
ST 1800-A22/A18

Screw guide for the ST 1800 screw driver – for fastening sandwich panel screws

  • Length: 5.3 in
  • Screw diameter d: 0.26 in
  • Screw length - min: 2.17 in

Choose options

Contact Force
  • 6.74 lbf
Screw length - min
  • 2.17 in
Screw-in depth
  • Adjustable
Weight
  • 0.9 lb
Washer diameter max
  • 1.14 in
Washer thickness max
  • 0.47 in
Fastener shank diameter
  • 5.2 mm
Screw diameter d
  • 0.26 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$231.75
$231.75 / 1 Each

Technical Data

Length
5.3 in
Screw diameter d
0.26 in
Screw length - min
2.17 in
Washer thickness max
0.47 in
Weight
0.9 lb

Features & Applications

Features

  • Greater convenience as screws can be driven using only one-hand
  • Greatly reduced risk of scratching the outside skin of the sandwich panel, optimum compression of the washer
  • Help to avoid dents in the outside skin of the sandwich panel for better aesthetics
  • Less risk of the screw point skidding across the surface causing scratches
  • Higher productivity and greater convenience, very easy to use

Applications

  • Driving long composite panel screws (5.5 and 6.5 mm diameter) on steel structures
  • Driving screws using the ST 1800/ST 1800-A/ST 2000 screwdriver
  • Fastening sandwich panels to steel substructures
  • Sandwich panel screw guide for 5.5 mm diameter sandwich panel screws
