MFT-FOX HT M Bracket

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001412_v3.tif
LCG001409_v1.tif
LCG001395_v3.tif
LCG001421_v4.tiff

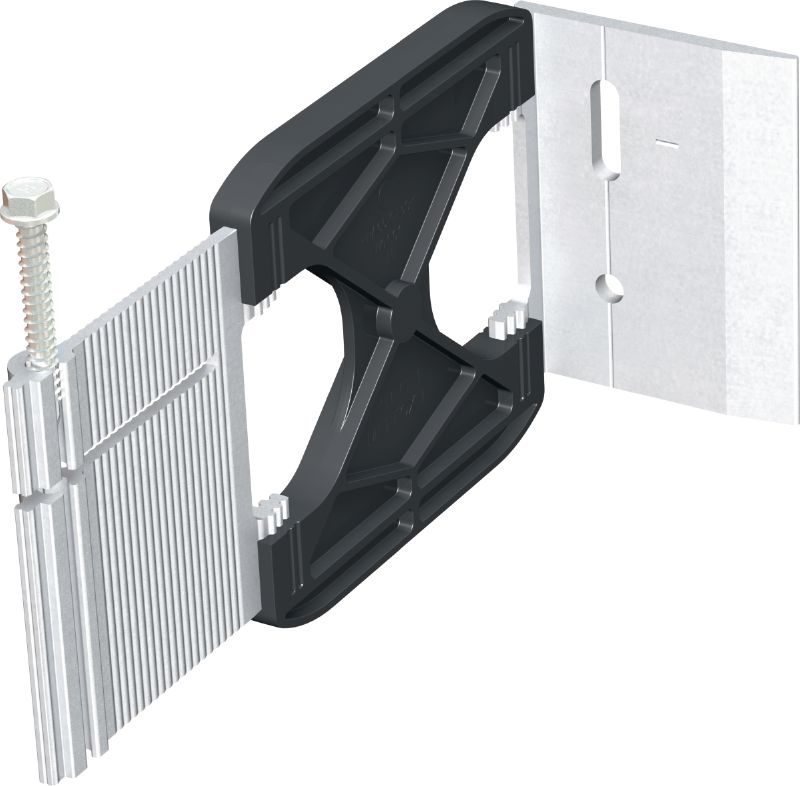

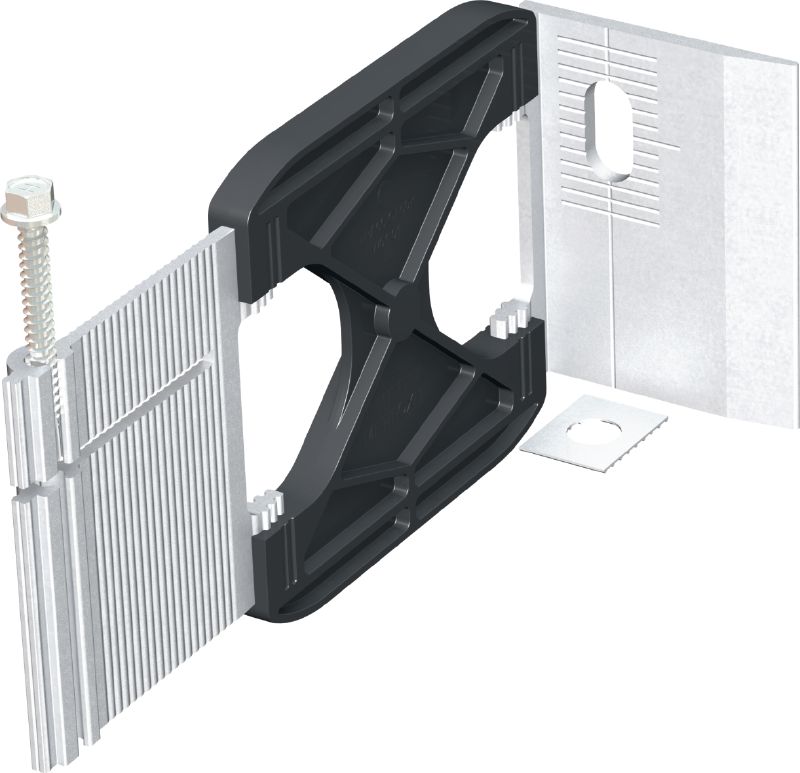

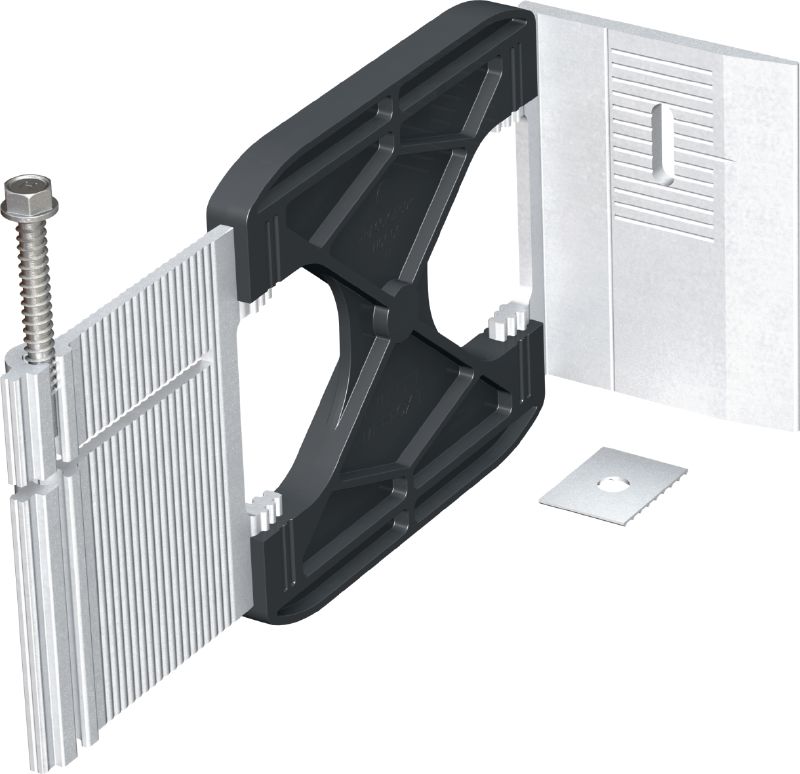

MFT-FOX HT M 5

Horizontal fiberglass bracket - Medium

  • Material composition: Polyamide, EN AW-6063 T66
  • Width: 62 mm
  • Height: 80 mm

Customers also searched for Rainscreen Bracket or Cladding.

Choose options

Length
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
Hole diameter - D
  • 5 mm
  • 6.5 mm
  • 11 mm
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $466.00

Technical Data

Details
Technical illustrations
Material composition
Polyamide, EN AW-6063 T66
Width
62 mm
Height
80 mm

Documents

Approval document
Reference document
Technical information
Schematic
Test Report
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-21/0174 EN, English [ 1.3 MB ]
pdf FOX-T Passive House Component, English [ 81.1 KB ]

Features & Applications

Features

  • Thermal bridge-free solution
  • Glass-fiber reinforced plastic and aluminium compound for low thermal conductivity and high load performance
  • Labor saving - Pre-assembled A4 screw for easy fastening of support profiles
  • Up to 40 mm adjustability of the support profile
  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)

Applications

  • Suitable for low-energy buildings
  • Suitable for low-energy buildings, Passivhaus and Minergie standard

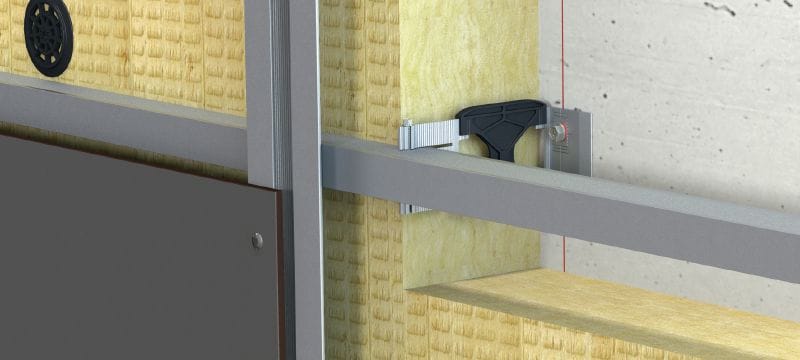

  • One-layer system with horizontally mounted support profiles
  • Two-layer system with horizontally and vertically mounted substructure profiles

For approval or certificate information, please see individual items.
