HRD-H Plastic screw anchor

HRD-H Plastic Frame Anchor #423871

Configurator
Technical Data
Documents
Features & Applications
Related Products
34331.tif

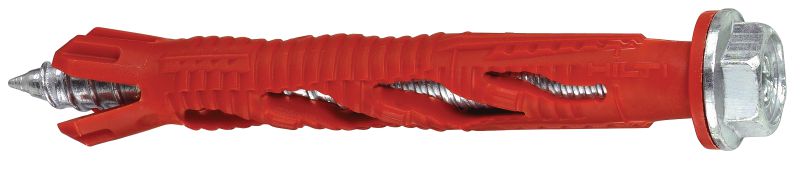

HRD 10 x 80, Hex head and plastic washer
20884.tif
L050458.tiff

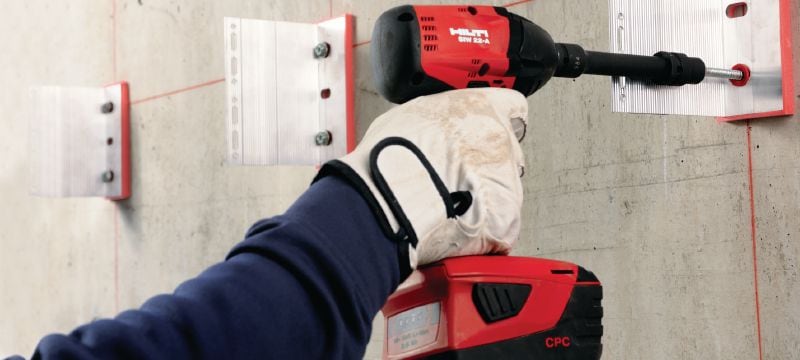

bracket fastening SIW 6AT

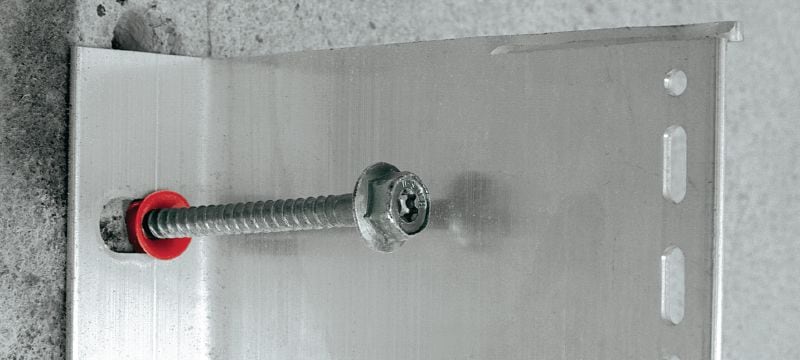

Cropped application image of bracket fastening HRD

Pre-assembled plastic anchor for concrete and masonry with screw (carbon steel, hex head)

  • Head configuration: Hex head
  • Material, corrosion: Carbon steel, zinc-plated
  • Wrench size: 0.51 in

Choose options

Anchor size - D
  • 10 mm
Anchor length - L
  • 80 mm
Pack size
  • 50 pc
 Product options
Quantity
Box
Total Pieces
50
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$99.25
$99.25 / 1 Box

Technical Data

Head configuration
Hex head
Material, corrosion
Carbon steel, zinc-plated
Wrench size
0.51 in
Bit size
T40

Documents

Technical information
Approval document
Operating Instruction
pdf Tech_HRD_redundant_2023_en, English [ 1.2 MB ]
pdf Technical data sheet for HRD frame anchor, English [ 691.3 KB ]
pdf Product Technical Guide Supplement for HRD-H Plastic Frame Anchor, French, English [ 587.1 KB ]
pdf Product Technical Guide Supplement for HRD-H Plastic Frame Anchor, English, English [ 1 MB ]

Features & Applications

Features

  • Unbeatable versatility – flexible embedment depth (approved at 50 mm and 70 mm) makes these plastic anchors suitable for a vast range of fastenings and base materials
  • Multiple versions available – choose from multiple screw heads and corrosion resistance options depending on your project’s needs
  • Time-saving on the jobsite – these concrete plastic anchors arrive ready to use with the screw pre-assembled in the wall plug
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

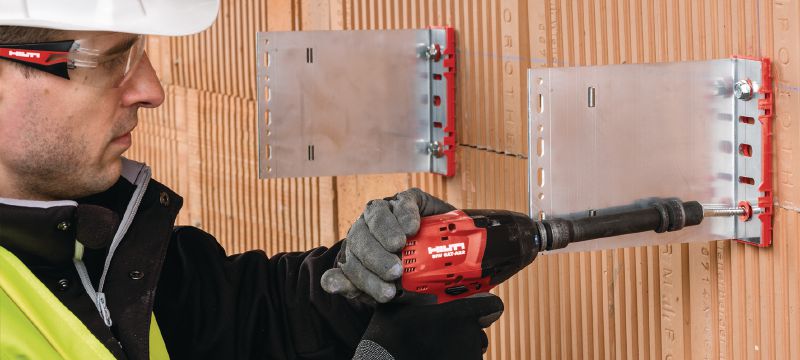

  • Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry
  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Suitable for fastening fixtures up to 150 mm thick (60-200 mm anchor length available)
