How do I design baseplate for unique anchor bolt holes?

Question

Posted by Elijah Roachover 3 years ago

A customer has a design they are needing an anchor recommendation for. The baseplate has a unique anchor hole design. How can I create this in PROFIS?

anchoring bolt,baseplate design and chor design

Crane Drawing.pdf435.15 KB

1 Reply

Posted by Samantha Burtover 3 years ago

Hilti Verified

Hi Elijah,

Please utilize the "Change to 2D" function, located within the center of the PROFIS Engineering model, to create custom anchor and baseplate layouts.

Feel free to send any additional questions, including the .pe file, to hnatechnicalservices@hilti.com.
Best,
Sam

PE Custom Anchor Layout.jpg92.3 KB

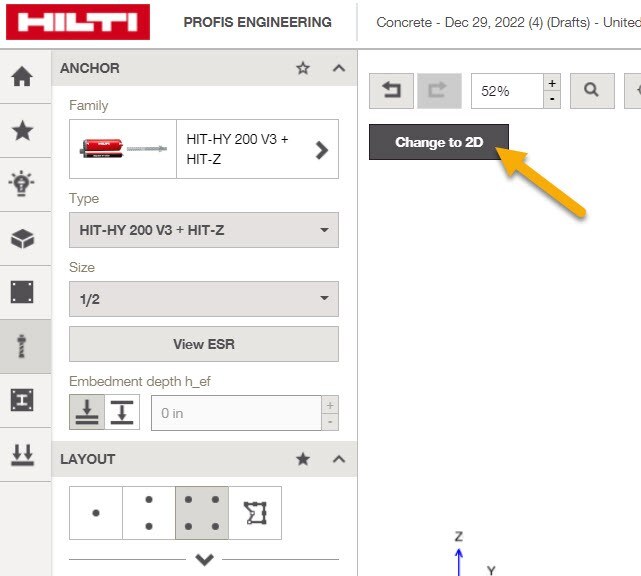

PE Change to 2D.jpg50.1 KB
