Doing BasePlate check Without Profile

Question

Posted by Ali Esmaeilialmost 4 years ago

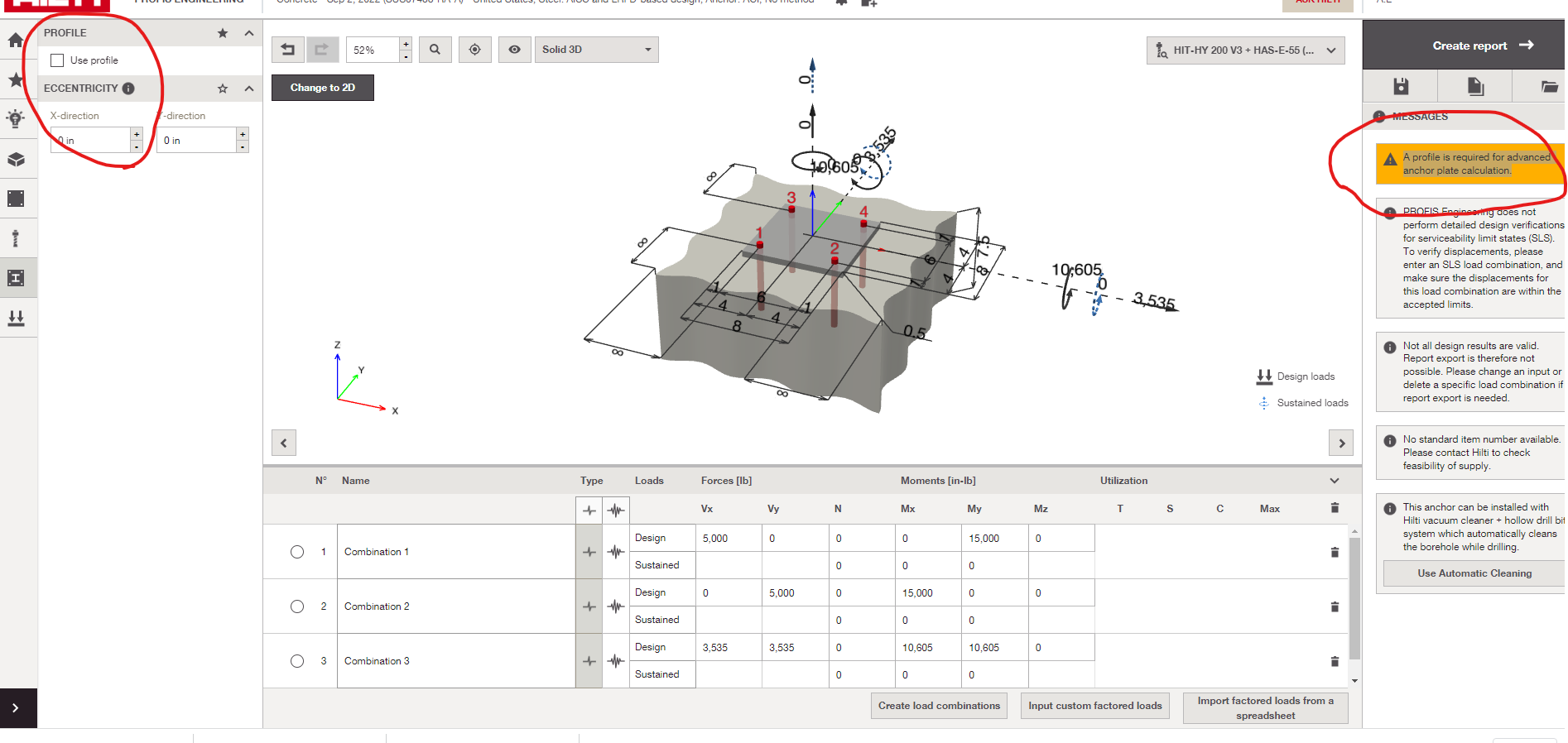

Hi. I have my hand calculations for the base plate profile and don't want Hilti Check it again. But unchecking the use profile box this message pops up.
A profile is required for advanced anchor plate calculation.
I am wondering how can I remove my profile with using advanced calculation or how can I chance to regular calculation for my base plate without profile?

baseplate,Profile removal,changing from advanced anchor calculation to regular

ASK-Hilti.png174.52 KB

1 Reply

Posted by Emily almost 4 years ago

Hilti Verified

Hi Ali,

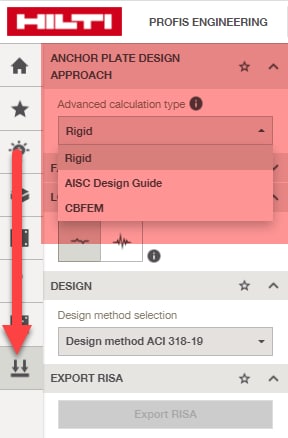

Select "rigid" as your anchor plate design approach under the loads tab and the anchor design can be calculated without a profile. See image attached.

Regards,
Emily

ask hilti rigid.png26.58 KB
