HSS Annular cutter

Configurator
Technical Data
Features & Applications
Related Products

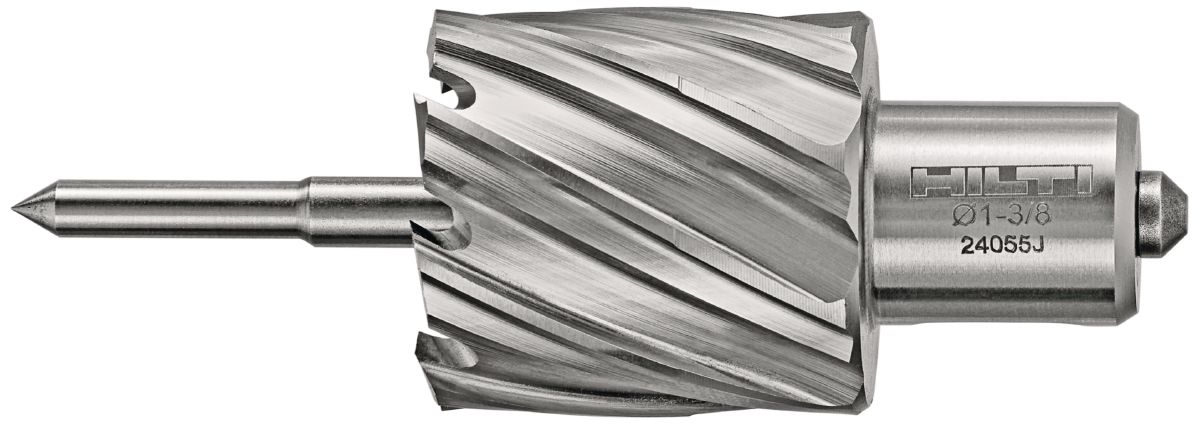

Still life image of Annular cutter with 3/4" weldon connection for SF 30M-22.

HSS Annular cutter with pilot pin and a quick-release 3/4 Weldon shank, for drilling 7/16"-1 3/8" diameter holes with a drilling depth of up to 2" in steel

  • Product Class: Premium
  • Connection end: 3/4" Weldon
  • Base material: Metal, Stainless steel, Steel
premium

Customers also searched for Annular Cutters, Cutter, Mag Drill Bit, SF 30M or Magnetic Drill.

Choose options

Diameter
  • 7/16 in
  • 1/2 in
  • 9/16 in
  • 5/8 in
  • 11/16 in
  • 3/4 in
  • 13/16 in
  • 7/8 in
  • 15/16 in
  • 1 in
  • 1-1/16 in
  • 1-1/8 in
  • 1-3/16 in
  • 1-1/4 in
  • 1-3/8 in
Length
  • 2 in
Working length
  • 2 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $43.00

Technical Data

Product Class
Premium
Connection end
3/4" Weldon
Base material
Metal, Stainless steel, Steel

Features & Applications

Features

  • Quick-release shank – enables faster and easier chuck changes with no tools required to attach and release the annular cutter
  • Longer lasting – made from durable high speed steel with a cutting teeth hardness of 64 HRC (800 HV)
  • Smoother drilling – apply the right drilling speed and oil for optimal performance

Applications

  • Core drilling with the SF 30M-22 mag drill up to a diameter of 1-3/8” and a cutting depth of up to 2"
  • Drilling holes into high alloyed and unalloyed steel and heat-treated steel ≤1100 N/mm²
  • Drilling into stainless steel ≤700 N/mm²
  • Note: lubrication is required when drilling with HSS annular cutters

For approval or certificate information, please see individual items.
