SPX Turbo A Diamond grinding cup wheel

Configurator
Technical Data
Documents
Features & Applications
Related Products

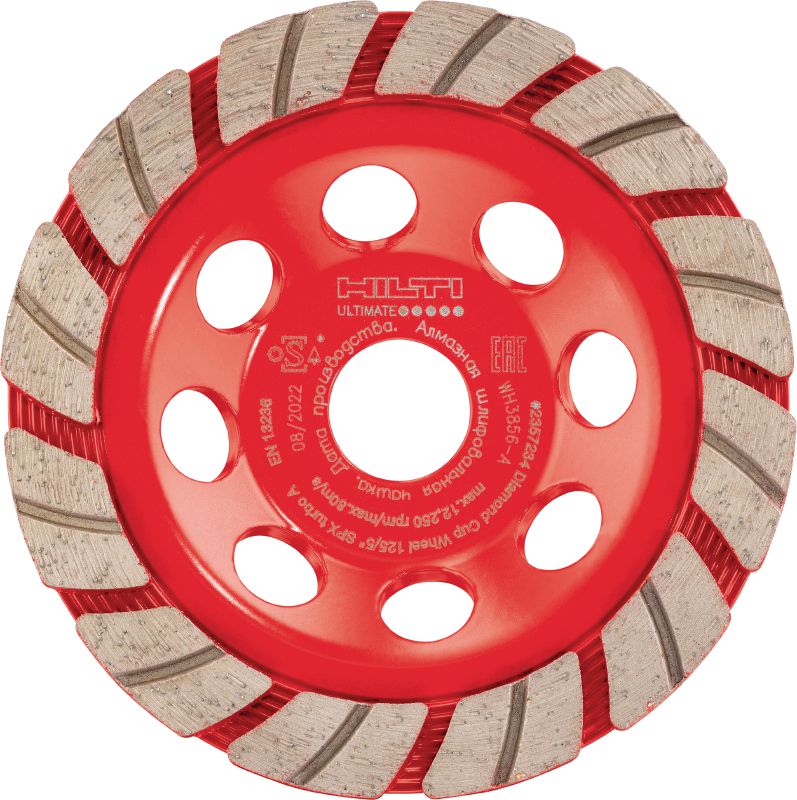

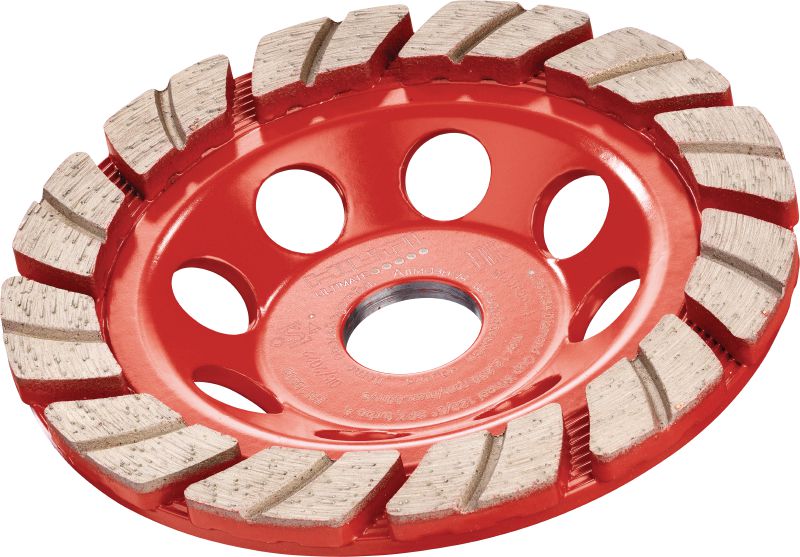

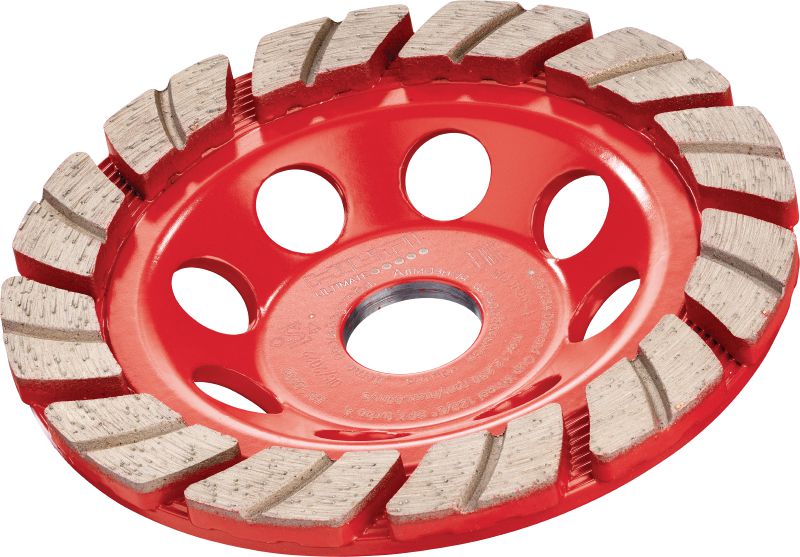

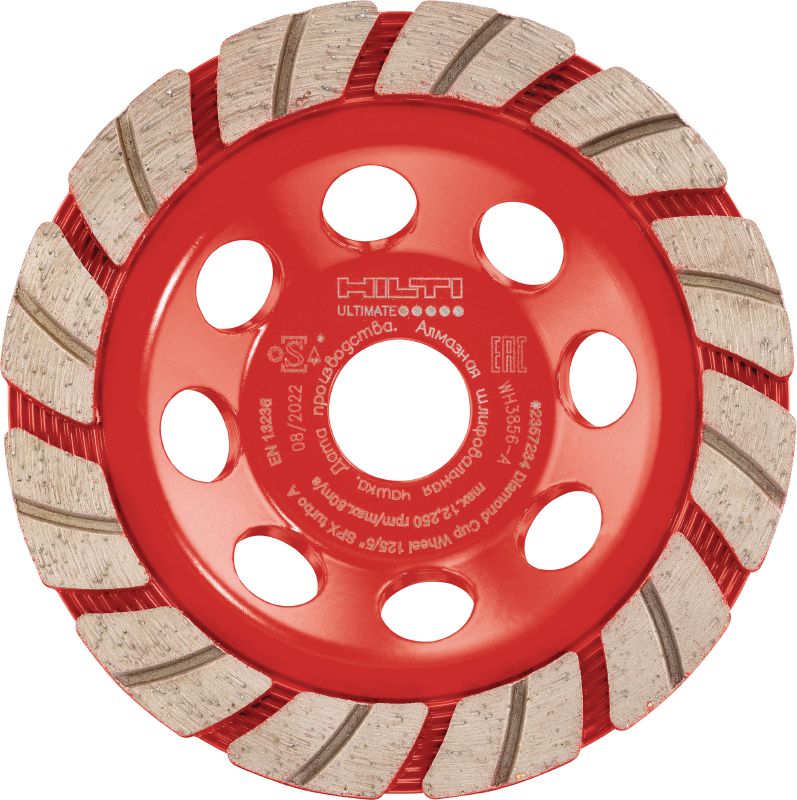

Diamond grinding cup wheel SPX turbo A
Diamond grinding cup wheel SPX turbo A

Ultimate diamond cup wheel for highly efficient and scratch-free grinding of concrete, screed and natural stone

  • Base material: Concrete, Abrasive concrete, Natural stone, Screed
  • Product Class: Ultimate
  • Diameter: 5 in
ultimate

Choose options

Diameter
  • 5 in
Pack size
  • 1 pc
    $220.00 / 1 Each
    Best price
  • 6 pc
    $1,047.00 / 1 Box
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $220.00

Technical Data

Base material
Concrete, Abrasive concrete, Natural stone, Screed
Product Class
Ultimate
Diameter
5 in
Arbor size
22.225 mm
Segment height
5.3 mm

Documents

Brochure
Material safety datasheet
Operating Instruction

Features & Applications

Features

  • Ultimate grinding efficiency – specially shaped segments and larger, high-quality abrasive diamonds help you to remove more material per battery charge
  • Scratch-free finish – premium, extra-fine diamonds make it easier to create a smooth final surface
  • Improved dust extraction – larger ventilation holes help to prevent dust clogging the abrasive surface, prolonging the lifespan of every cup wheel
  • Longer-lasting – these cup wheels are built from the highest-grade materials using durable contact welding
  • Minimized vibration – every Hilti diamond cup wheel is individually checked and balanced before leaving the plant

Applications

  • Grinding concrete walls and ceilings to remove formwork marks
  • Finishing grinding of concrete and natural stone
  • Grinding chamfers into concrete edges

For approval or certificate information, please see individual items.
