TE-Y-GB (SDS Max) Cruciform drill bit

Configurator
Technical Data
Documents
Features & Applications
Related Products

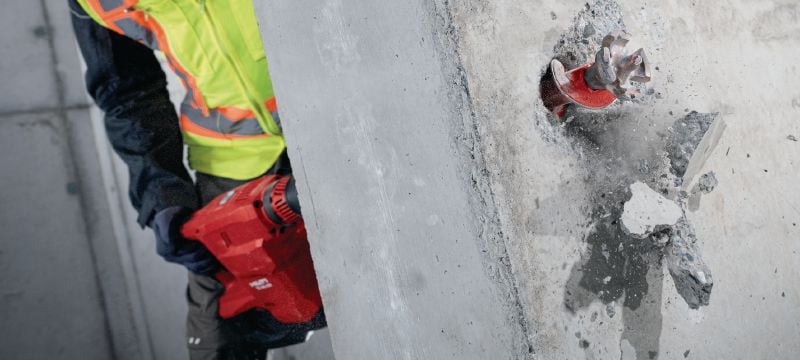

Breach bit for concrete and masonry
Breach bit for concrete and masonry

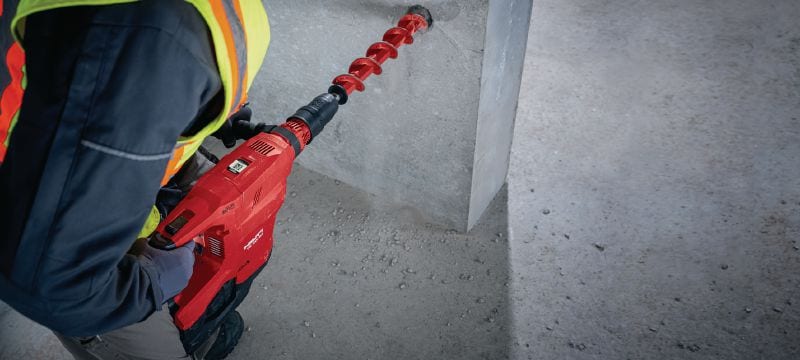

TE-Y-GB drilling into concrete with TE 60-22 (G04)
TE-Y-GB drilling into concrete with TE 60-22 (G04)

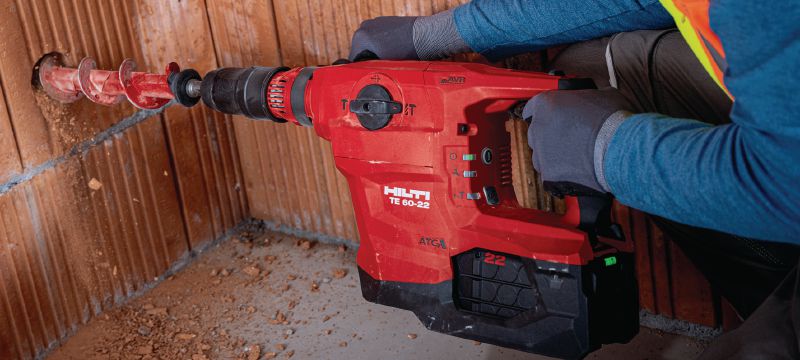

TE-Y-GB drilling into brick masonry with TE 60-22 (G04)

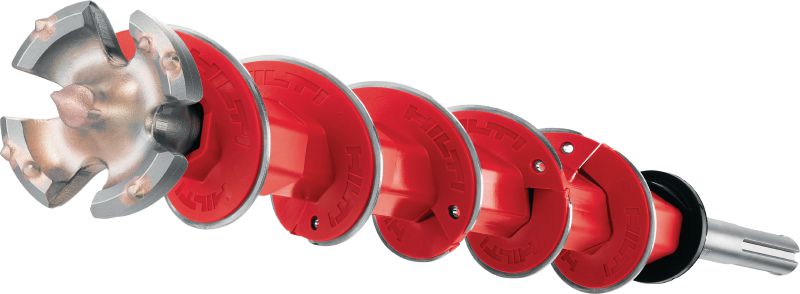

SDS Max (TE-Y) cruciform hammer drill bit for larger-diameter drilling into concrete and masonry

  • Base material: Concrete, Masonry, Brick, Limestone
  • Working mode: Hammer drilling
  • Product Class: Ultimate
ultimate

Choose options

Diameter
  • 2-1/2 in
  • 3-1/8 in
Working length
  • 17-3/4 in
  • 18 in
Length
  • 23-7/32 in
  • 23.6 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,209.00

Technical Data

Base material
Concrete, Masonry, Brick, Limestone
Working mode
Hammer drilling
Product Class
Ultimate

Documents

pdf Operating Instruction TE-Y-GB, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 2.7 MB ]

Features & Applications

Features

  • Extreme durability – brazed hard metal-carbide-tipped head means you can drill more with the same cruciform bit
  • Fast, smooth drilling – large helix engineered to efficiently transport dust away from the tip of the drill bit
  • Easily replaceable helix – you can further prolong the lifespan of these cruciform drill bits by replacing worn helix segments on the jobsite
  • Various lengths available – choose from multiple working lengths of steel core with 6 or 9 exchangeable helix segments, to best suit drilling through- or blind holes
  • Helix segments and lockring are available as spare parts

Applications

  • Drilling larger-diameter penetrations in concrete and masonry
  • Through-hole drilling in concrete and masonry
  • For use in a wide range of heavy power tools with a TE-Y (SDS Max) connection end

For approval or certificate information, please see individual items.
