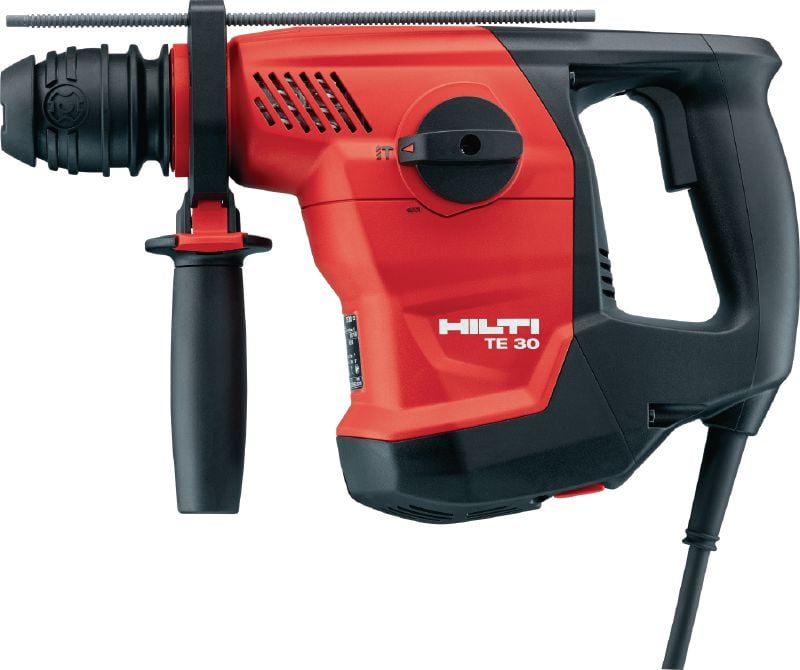

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling

  • Weight according EPTA-Procedure 01/2003 without battery: 9 lb
  • Optimum Hammer drilling range: 13/32 - 25/32 in
  • Single impact energy: 2.7 ft-lbs

Customers also searched for corded hammer drillelectric hammer drillconcrete hammer drillhammer drill or SDS plus hammer drill.

Choose options

Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $799.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
9 lb
Optimum Hammer drilling range
13/32 - 25/32 in
Single impact energy
2.7 ft-lbs
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
5/32 - 1-3/32 in
Hammer drilling RPM
1100 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
14.4 m/s² 1
A-weighted emission sound pressure level
95 dB (A) 2
Dimensions (LxWxH)
14.2 x 4.4 x 8.9 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing
  • OSHA 1926.1153 Table 1 compliant when used with the TE DRS-D dust removal system and a Hilti vacuum cleaner

Applications

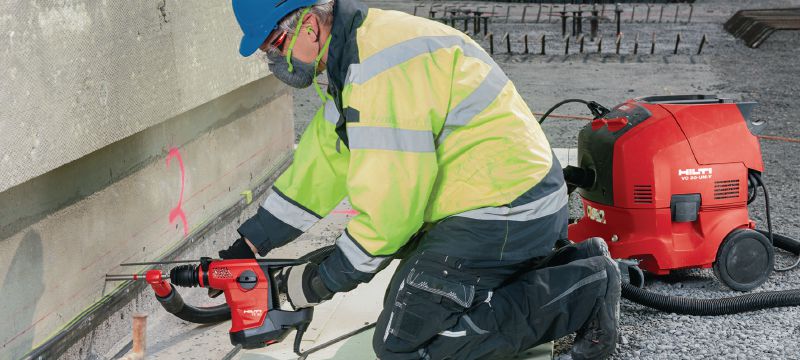

  • Drilling holes for anchors and rebar connections as well as through-holes in concrete and masonry: possible diameter range 4-28 mm, recommended diameter range 10-20 mm
  • Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
  • Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.
