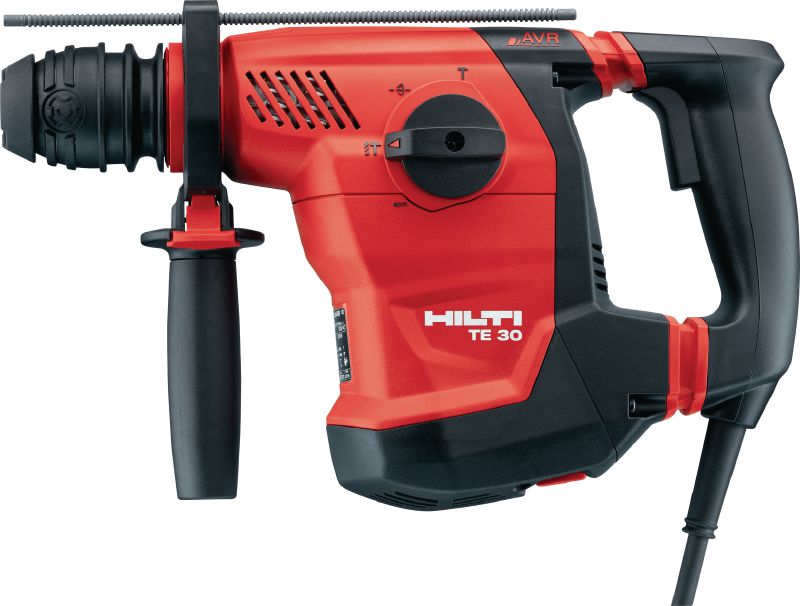

TE 30-AVR Rotary hammer

Name: TE 30-AVR Rotary hammer
Brand: Hilti
SKU: r6848759
Price: 939 USD

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $939.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

9.3 lb

Optimum Hammer drilling range

13/32 - 25/32 in

Single impact energy

2.7 ft-lbs

Working mode

Hammer drilling, Drilling, Chisel setting, Chiseling

Hammer drilling diameter range

3/16 - 1-3/32 in

Hammer drilling RPM

1100 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Active Vibration Reduction (AVR), Chiseling, Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

9.7 m/s² ¹

Triaxial vibration for chiseling into concrete

8.8 m/s² ²

A-weighted emission sound pressure level

95 dB (A) ³

Dimensions (LxWxH)

14.6 x 4.4 x 8.9 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (EN) [ 732.3 KB ]

Download

pdf Material safety datasheet Hilti Grease (ES) [ 737.2 KB ]

Download

Features & Applications

Features

Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
Quick-change chucks – changing bits is fast and tool-free
Extra-long lifetime thanks to a highly robust chuck, motor components and casing

Applications

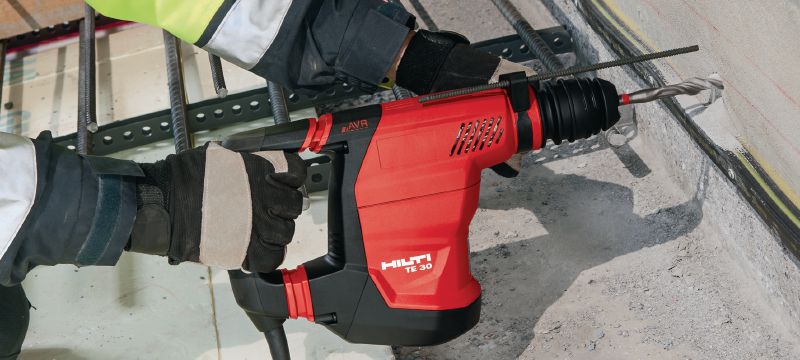

Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm

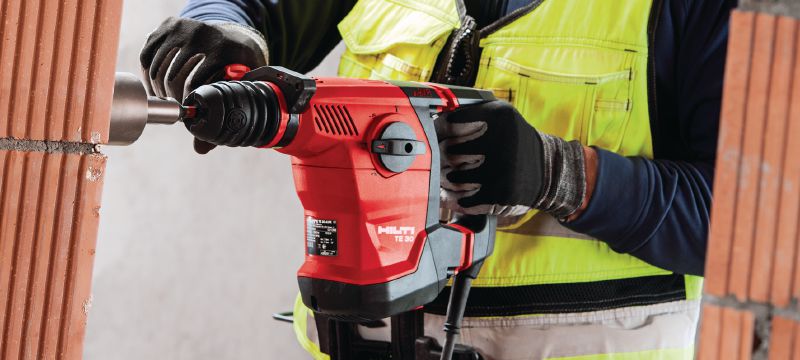

Chiselling in brick and block, corrective chiseling and surface finishing on concrete
Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.
