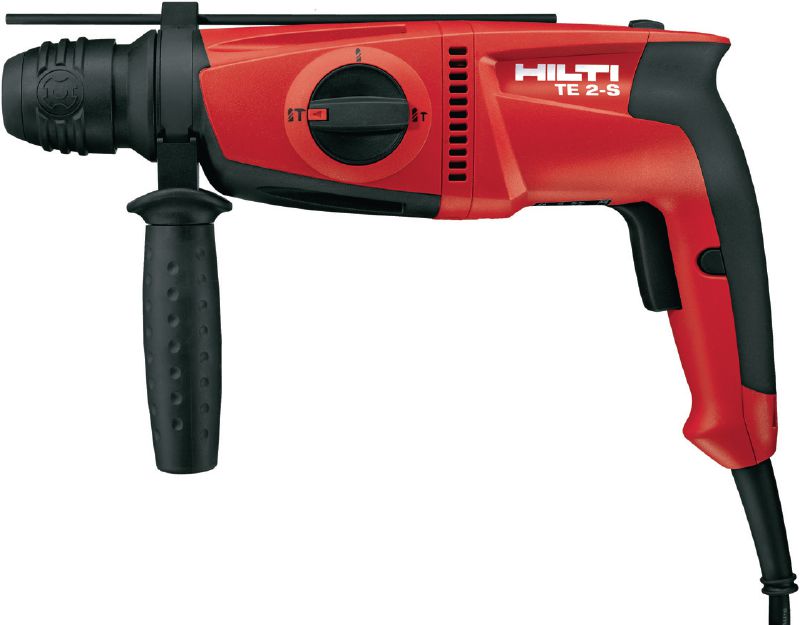

TE 2-S Rotary hammer

Name: TE 2-S Rotary hammer
Brand: Hilti
SKU: r3683
Price: 269 USD

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $269.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

6 lb

Optimum Hammer drilling range

5/32 - 15/32 in

Single impact energy

1.3 ft-lbs

Working mode

Hammer drilling, Drilling, Fine hammer drilling

Hammer drilling diameter range

5/32 - 7/8 in

Hammer drilling RPM

1200 rpm

Full hammering frequency

4600 impacts/minute

Functionality

Power reduction, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.1 m/s² ¹

Triaxial vibration for chiseling into concrete

13.5 m/s² ²

A-weighted emission sound pressure level

91 dB (A) ³

Dimensions (LxWxH)

13.9 x 3.5 x 8 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Documents

Documentation

Material safety datasheet

Operating Instruction

pdf OSHA 1926.1153, Section VII (1), English [ 584.4 KB ]

Download

Features & Applications

Features

Three-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and precision hammer drilling
Sturdy motor with high load rating for maximum reliability
Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
Electronic switch for precise drilling
360° side handle adjusts easily for preference or use in tight spaces

Applications

Daily hammer drilling in concrete, masonry and natural stone
Precision hammer drilling feature for drilling into concrete and masonry, as well as brittle materials like tile and stone
Ocassional drilling in steel, wood and plastics using optional chuck adaptor
Driving screws using optional bit holder
Reverse feature assists in the removal of stuck drill bits

For approval or certificate information, please see individual items.
