Compact dual-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling

  • Weight according EPTA-Procedure 01/2003 without battery: 6 lb
  • Optimum Hammer drilling range: 5/32 - 15/32 in
  • Single impact energy: 1.3 ft-lbs

Customers also searched for SDS plus rotary hammerconcrete hammer drillhilti hammer drillhammer drill or SDS plus hammer drill.

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
6 lb
Optimum Hammer drilling range
5/32 - 15/32 in
Single impact energy
1.3 ft-lbs
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
5/32 - 7/8 in
Hammer drilling RPM
1200 rpm
Full hammering frequency
4600 impacts/minute
Functionality
Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.1 m/s² 1
A-weighted emission sound pressure level
94 dB (A) 2
Dimensions (LxWxH)
13.9 x 3.5 x 8 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Two-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling
  • Sturdy motor with high load rating for maximum reliability
  • Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
  • Electronic switch for precise drilling
  • 360° side handle adjusts easily for preference or use in tight spaces

Applications

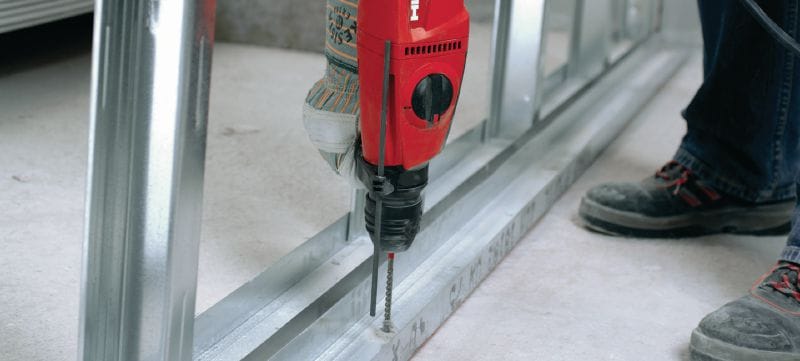

  • Daily hammer drilling in concrete, masonry and natural stone
  • Ocassional drilling in steel, wood and plastics using optional chuck adaptor
  • Driving screws using optional bit holder
  • Reverse feature assists in the removal of stuck drill bits
  • Drilling in solid metal Ø 3-13 mm / sheet metal up to Ø 20 mm

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • After no-cost period repair costs are capped
  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • No registration or proof of purchase ever required
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
