TE 6-CL Rotary hammer

Powerful D-grip SDS Plus (TE-C) rotary hammer drill with chipping function

  • Weight according EPTA-Procedure 01/2003 without battery: 7.5 lb
  • Optimum Hammer drilling range: 1/4 - 5/8 in
  • Single impact energy: 1.7 ft-lbs

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
7.5 lb
Optimum Hammer drilling range
1/4 - 5/8 in
Single impact energy
1.7 ft-lbs
Working mode
Hammer drilling, Drilling, Chiseling, Chisel setting
Hammer drilling diameter range
5/32 - 1-3/32 in
Hammer drilling RPM
960 rpm
Full hammering frequency
4680 impacts/minute
Functionality
Chiseling, Depth gauge, Reverse mode, Removable chuck
Triaxial vibration value for hammer drilling into concrete (ah,HD)
17.3 m/s² 1
Triaxial vibration for chiseling into concrete
10.1 m/s² 2
A-weighted emission sound pressure level
92 dB (A) 3
Rated input power
890 W
Dimensions (LxWxH)
12-13/16 x 3-11/16 x 8-13/16 in
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Built for speed and longevity – re-engineered to deliver higher drilling performance from an even more reliable, longer-lasting rotary hammer
  • Consistent power output – the 8.5 Amp motor delivers the performance you need to get demanding drilling jobs done faster, even if the power supply fluctuates
  • Powerful chiseling performance – with easy adjustment of chisel positioning
  • Multi-mode SDS Plus rotary hammer – for hammer drilling, rotary-only drilling and chiseling
  • Rapid maintenance – power cords or carbon brushes can be replaced with minimal downtime

Applications

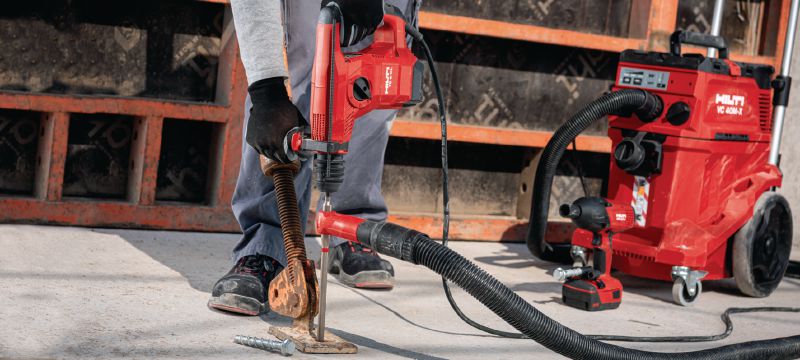

  • Drilling and hammer drilling in concrete, masonry and stone
  • Drilling anchor holes and formwork assembling
  • Concrete chiseling and slag removal
  • Chiseling of small channel openings into concrete and masonry
  • Precision chiseling in masonry

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management

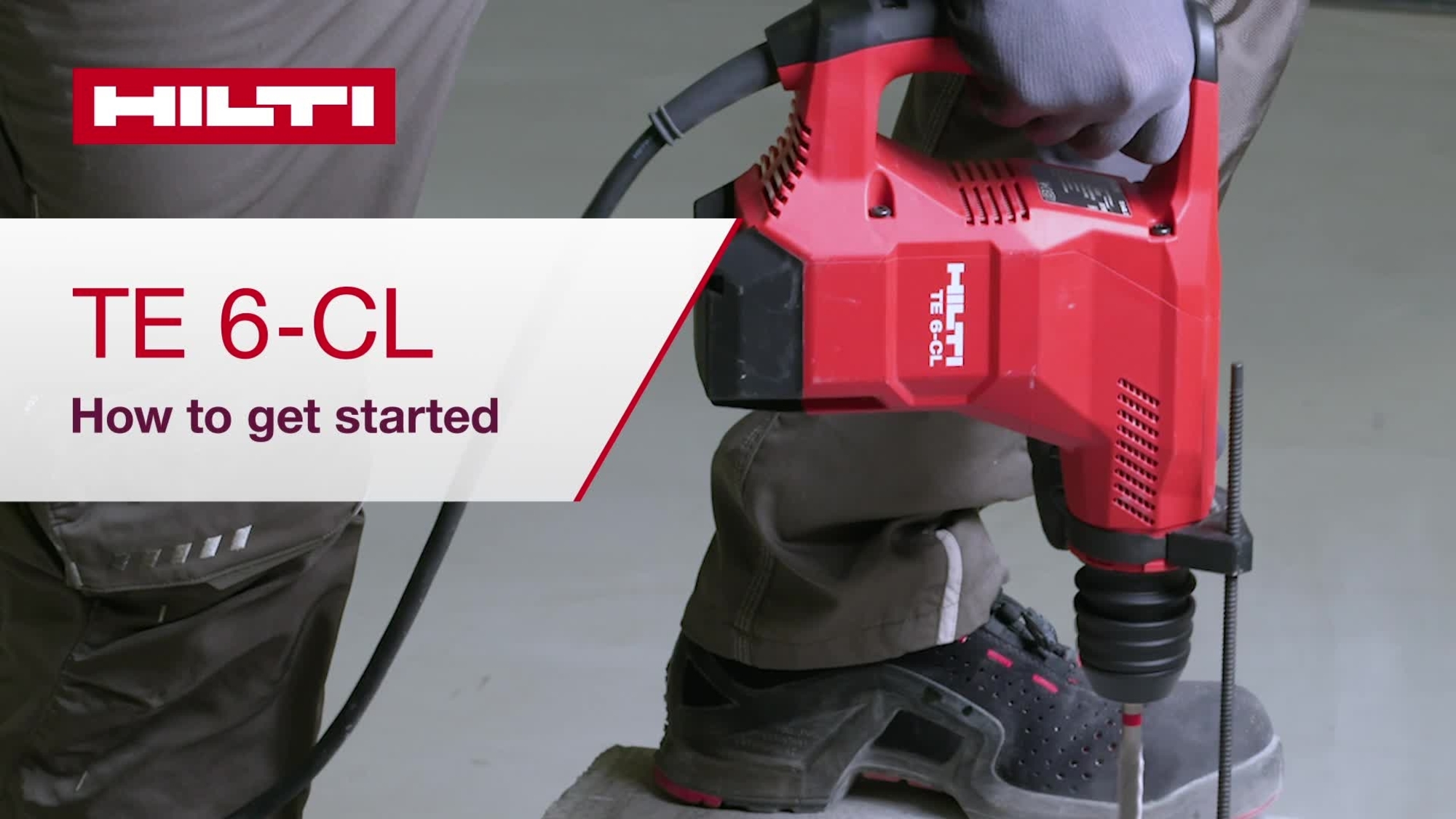

Product Videos
