Nuron

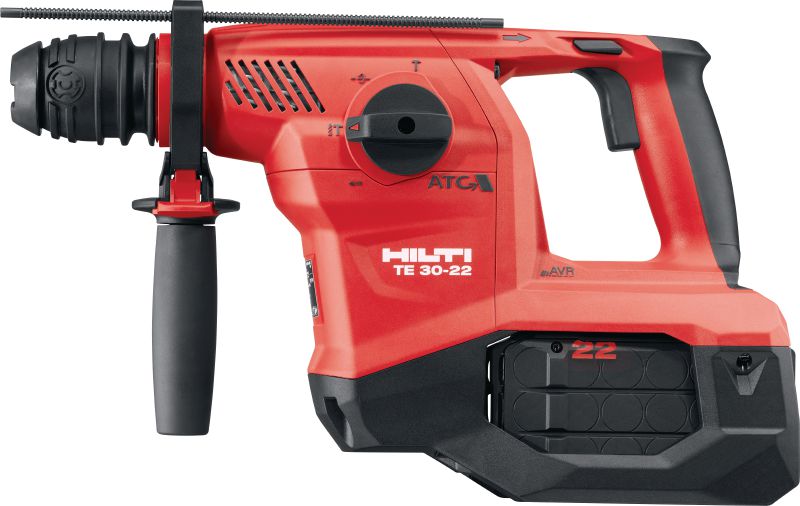

TE 30-22 Cordless rotary hammer

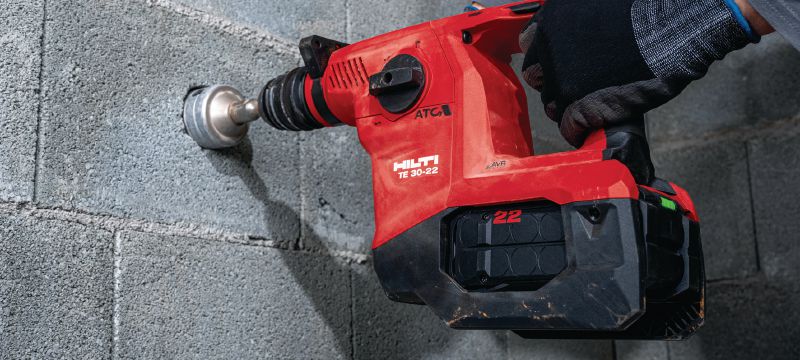

Powerful cordless SDS Plus (TE-C) rotary hammer with Active Vibration Reduction and Active Torque Control for concrete drilling and chiseling (Nuron battery platform)
- Weight according EPTA-Procedure 01/2003 without battery: 8.6 lb
- Optimum Hammer drilling range: 13/32 - 31/32 in
- Single impact energy: 2.8 ft-lbs
Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or Nuron battery platform.
Technical Data
Weight according EPTA-Procedure 01/2003 without battery
8.6 lb
Optimum Hammer drilling range
13/32 - 31/32 in
Single impact energy
2.8 ft-lbs
Hammer drilling diameter range
3/16 - 1-3/32 in
Hammer drilling RPM
777 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Chipping, Depth gauge, Removable chuck, Reverse mode, Torque clutch
Triaxial vibration for chiseling into concrete
8.5 m/s² 1
A-weighted emission sound power level
102 dB (A) 2
A-weighted emission sound pressure level
94 dB (A) 3
Dust removal system available
TE DRS-D, TE DRS-C
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Exceptional drilling speed – drills through rebar up to 200% faster than predecessors
- More run time per charge – drills up to twice as long as comparable SDS Plus rotary hammers thanks to the combination of brushless motor and revolutionary Nuron batteries
- Versatility – with a wider optimal drilling range and extensive range of chisel bits and hole saws available, TE 30-22 is an extremely versatile tool with a wide range of capabilities for any jobsite
- Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams
- Uncompromised cordless performance – our most powerful and versatile SDS Plus cordless rotary hammer drill ever, still weighing just 12.6 lbs (including B 22-255 battery)
Applications
- Drilling holes for rebar doweling
- Virtually dust-free drilling (TE DRS-C or TE DRS-D vacuum cleaner connector required)
- Light-duty chiseling – such as tile scraping, channel cleaning and surface correction

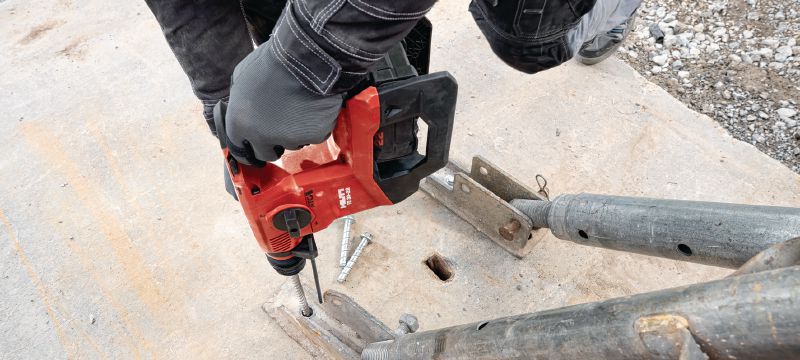

- Setting anchors and driving screws (optional TE-C bit holder required)
- Drilling anchor holes and through-holes in concrete and masonry (recommended diameter range 3/8” to 1-1/8")
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Product warranty against parts and manufacturing irregularities for 20 years
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- 1 or free, in and out of the repair center the same day or repair is free of charge
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
- Loan tools during repair to reduce downtime.
- Temporary tools for peak times and special applications help to reduce investments.
- Theft coverage helps to reduce financial risk and unexpected expenses.
Related Products
Ultimate SDS Plus (TE-C) hollow hammer drill bit for virtually dust-free drilling in concrete
Self-sharpening SDS Plus (TE-C) pointed chisel bits for demolishing concrete and masonry
Ultimate SDS Plus (TE-C) hammer drill bit for anchor drilling into reinforced concrete (metric)
SDS Plus (TE-C) rotary hammer core bit for cutting holes in masonry
