Nuron

NUN 54-22 Cordless 6-Ton cable crimper and cutter

Cordl. crimper NUN 54-22 #2252533

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

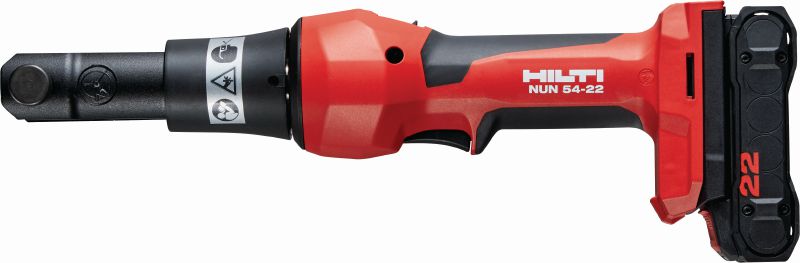

2D Picture of NUN 54-22 Universal 6-Ton crimper without battery

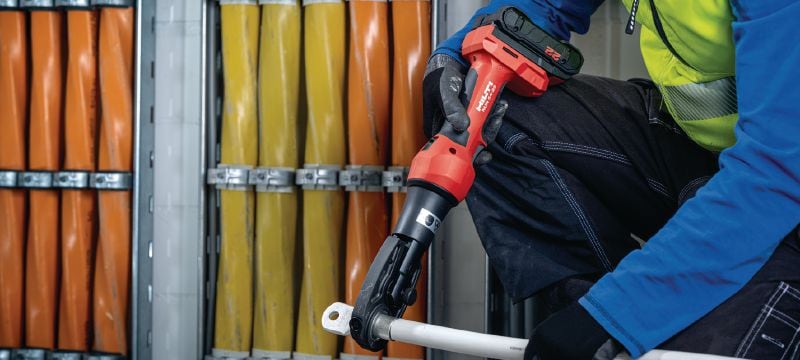

Application picture of universal cutter and crimper NUN 54-22 with B22-55 battery crimping large-size copper wire in server room

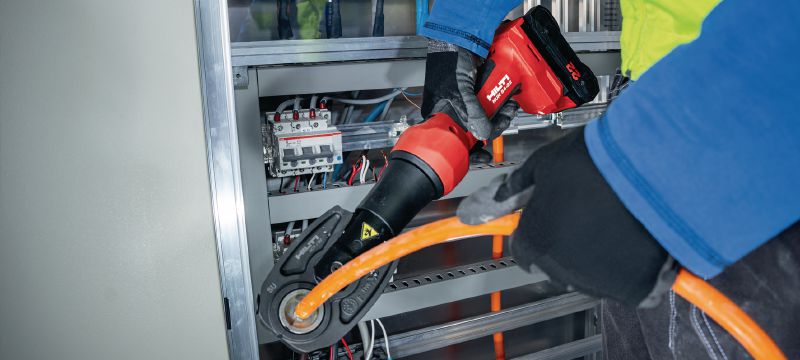

Application picture of universal cutter and crimper NUN 54-22 with B22-55 battery crimping medium-size copper wire in panel environment

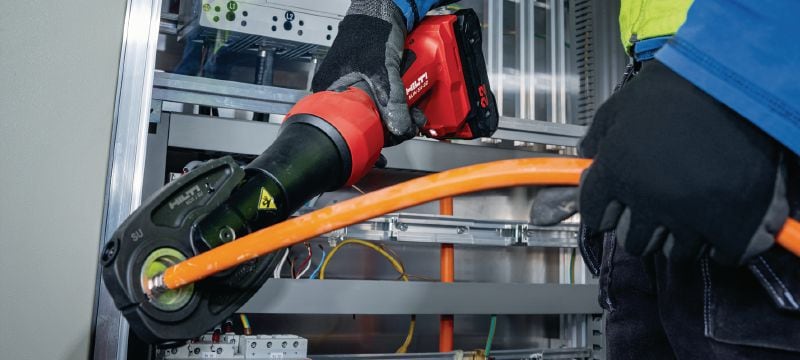

Application picture of universal cutter and crimper NUN 54-22 with B22-55 battery crimping medium-size copper wire in panel environment
Application picture of universal cutter and crimper NUN 54-22 with B22-55 battery cutting medium copper wire

Universal 6-Ton cordless cable crimper and cutter with interchangeable jaws (Nuron battery platform)

  • Crimping force: 5.4045 t
  • Cutting capacity: 3/8 guy wire (HS)", 477 kcmil ACSR (Hawk), 600 kcmil Cu cable / 1-1/4", 750 kcmil Al cable / 1-1/4"", 9/32 guy wire (EHS)", Al Class 1: Max. outer diameter 33 mm, Al Class 2: Max. outer diameter 33 mm, Cu Class 1: Max. outer diameter 33 mm, Cu Class 2: Max. outer diameter 33 mm, Guy Wire (EHS): Max. outer diameter 7 mm, Guy Wire (HS): Max. outer diameter 9.5 mm
  • Dimensions (LxWxH): 4.6 x 3 x 14.9 in

Customers also searched for cordless crimping tool, cordless crimpers, cordless cable crimpers, cordless hydraulic crimpers or Nuron battery platform.

Customize your kit

Tool Body
Tool body with cardboard box
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$2,359.00

Technical Data

Crimping force
5.4045 t
Cutting capacity
3/8 guy wire (HS)", 477 kcmil ACSR (Hawk), 600 kcmil Cu cable / 1-1/4", 750 kcmil Al cable / 1-1/4"", 9/32 guy wire (EHS)", Al Class 1: Max. outer diameter 33 mm, Al Class 2: Max. outer diameter 33 mm, Cu Class 1: Max. outer diameter 33 mm, Cu Class 2: Max. outer diameter 33 mm, Guy Wire (EHS): Max. outer diameter 7 mm, Guy Wire (HS): Max. outer diameter 9.5 mm
Dimensions (LxWxH)
4.6 x 3 x 14.9 in
Battery System
Nuron
Rated voltage
21.6 V
Head rotation
350 °
Approx. cycle time
4 s

Documents

pdf Operating Instruction NUN 54-22 (02), English, Spanish, French, Portuguese [ 3.5 MB ]

Features & Applications

Features

  • Minimize downtime and liability risks – Hilti 6 ton crimpers/cutters can access our yearly certification and free tool inspection services
  • One-for-all versatility – one hydraulic tool compatible with three interchangeable jaws for industry-standard 6-Ton tubular dies (including DIN and NF)
  • Improved crimping quality – extensive tests following IEC, DIN, NF and UL standards
  • Highest productivity – scissor-style jaws enable one-handed cutting and crimping, while the auto-retract function and long-lasting ACSR/Cu/Al blades help you to save time on every cable termination
  • On the Nuron battery platform – cordless hydraulic tools without compromise thanks to longer-lasting batteries, higher quality jaws and a range of services to keep you productive, today and tomorrow

Applications

  • Crimping NFC 20-130 copper compression cable lugs from 10-300 mm²
  • Crimping capacity from 10-240 mm² for copper and aluminum conductors
  • Cutting capacity of up to 33 mm (outer diameter) for copper and aluminum cables
  • Cutting capacity of up to 9 mm (HS) and 7.5 mm (EHS) guy wire (outer diameter)
  • Crimping overhead conductors with W-dies

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
