NCR 120C-22 12-Ton crimper (coated)

NCR 120C-22 12-Ton Crimper (Coated) #2431796

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

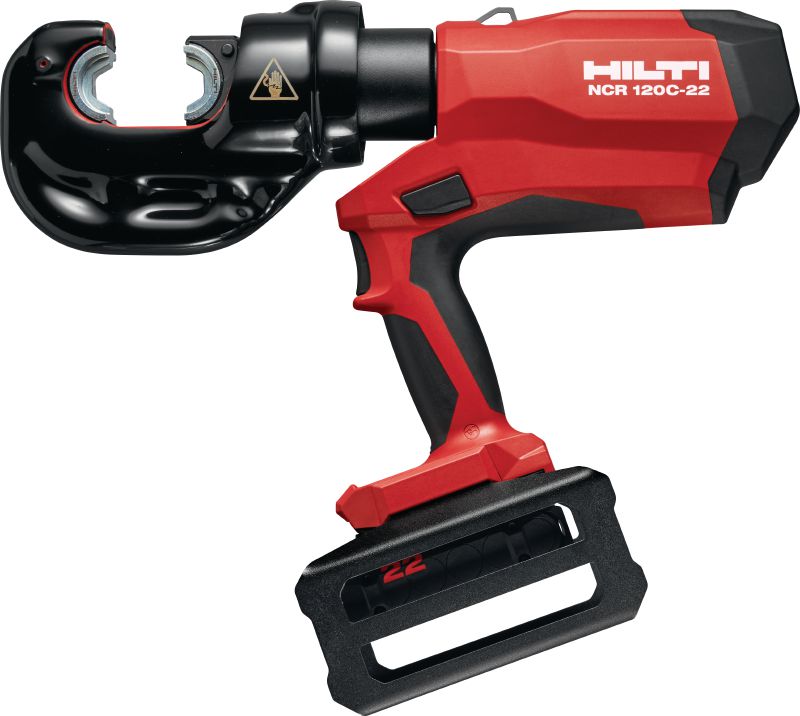

Still life picture of the cordless 12-ton crimper NRC 120C-22

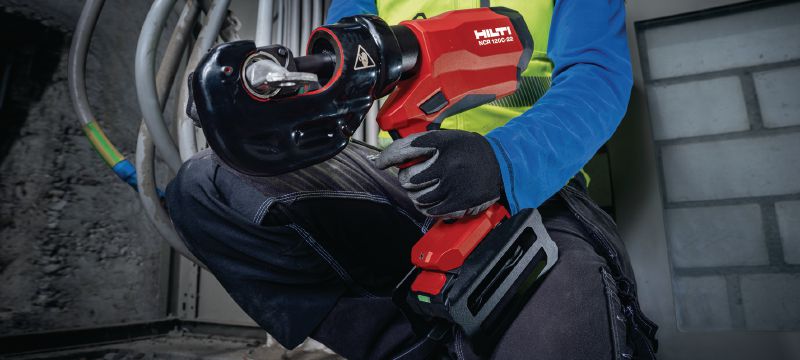

Application picture of NCR 120C-22 hydraulic crimper with B22-55 battery crimping large-size copper wire

Cordless 12-Ton crimper with PVC coated head for crimping cables up to 750 kcmil │ 400 mm² (Nuron battery platform)

  • Crimping force: 12.2366 t
  • Crimping capacity: 10-400 mm² Al (fine stranded), 10-400 mm² Al (stranded), 10-400 mm² Cu (fine stranded), 10-400 mm² Cu (stranded), 750 kcmil Al, 750 kcmil Cu
  • Dimensions (LxWxH): 14.6 x 4.1 x 16.7 mm

Customers also searched for cordless crimping tool, cordless crimpers, cordless cable crimpers, cordless hydraulic crimpers or Nuron battery platform.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$5,319.00
$5,319.00 / 1 Each

Technical Data

Crimping force
12.2366 t
Crimping capacity
10-400 mm² Al (fine stranded), 10-400 mm² Al (stranded), 10-400 mm² Cu (fine stranded), 10-400 mm² Cu (stranded), 750 kcmil Al, 750 kcmil Cu
Dimensions (LxWxH)
14.6 x 4.1 x 16.7 mm
Battery System
Nuron
Rated voltage
21.6 V
Head rotation
350 °
Approx. cycle time
9 s

Documents

pdf Operating Instruction NCR 120-22, English, Spanish, French, Portuguese [ 3.3 MB ]

Features & Applications

Features

  • Minimize downtime and liability risks – Hilti 12 ton crimpers can access our yearly certification and free tool inspection services
  • Verified crimp quality – extensive 3rd party tests following IEC, DIN, NF and UL standards
  • Boost productivity – extra-large crimping capacity, auto-retract function and manual retract stop helps you save time on repetitive crimping tasks
  • Comprehensive safety features – electronic trigger lock and audiovisual signals to better protect the operator while crimping
  • On the Nuron battery platform – cordless hydraulic tools without compromise thanks to longer-lasting batteries verified tool quality and a range of services to keep you productive, today and tomorrow

Applications

  • Crimping copper and aluminum conductors from 10-400 mm²
  • Crimping insulated cable lugs and connectors and insulated pin terminals from 10-150 mm²
  • Crimping tubular cable lugs and connectors for fine stranded conductors from 10-150 mm²
  • Crimping compression cable lugs (DIN 46235) and connectors (DIN 46237, part 1) from 10-300 mm²
  • Crimping copper and aluminum cables up to 750 kcmil

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
