Nuron

SID 8-22 7/16“ Impact Driver

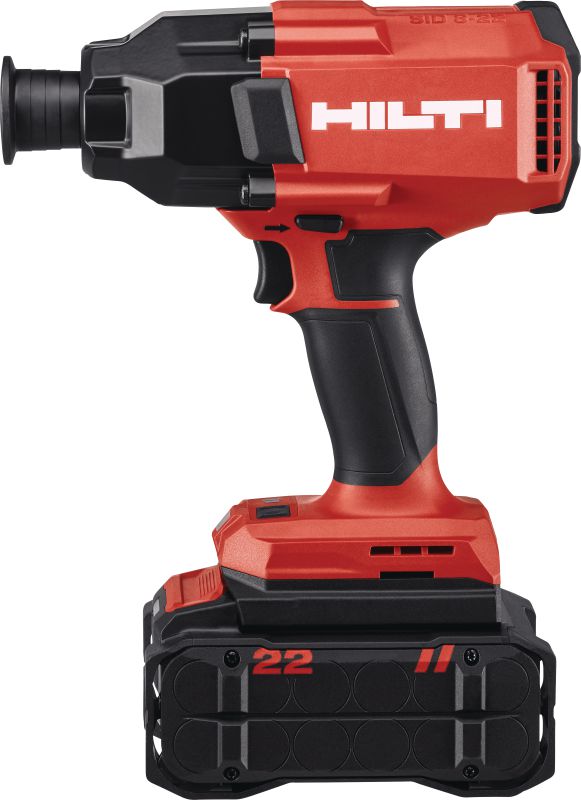

Still life image of the impact driver SID 8-22 with B 22-170 battery.
Cropped image of lineman using SID 8-22 in a bucket truck for energy and industry. Produced by W1, Fort Worth, TX in August 2023.
Cropped image of lineman using SID 8-22 drilling into power pole in a bucket truck for energy and industry. Produced by W1, Fort Worth, TX in August 2023.
Still life image of the impact driver SID 8-22 with B 22-170 battery.
Cropped image of lineman using SID 8-22 in a bucket truck for energy and industry. Produced by W1, Fort Worth, TX in August 2023.
Cropped image of lineman using SID 8-22 drilling into power pole in a bucket truck for energy and industry. Produced by W1, Fort Worth, TX in August 2023.

Ultimate class cordless impact driver for large diameter drilling and fastening

  • Feature: Powerful high efficiency hammering mechanism
  • Chuck type: 7/16" hexagonal
  • No load RPM: gear 1: 1700 rpm; gear 2: 1200 rpm

Customers also searched for cordless impact driver, cordless impact drill, battery impact driver, Nuron impact driver or Nuron battery impact driver.

Technical Data

Feature
Powerful high efficiency hammering mechanism
Chuck type
7/16" hexagonal
No load RPM
gear 1: 1700 rpm; gear 2: 1200 rpm
Maximum torque
4425 in-lb (1); 8850 in-lb (2) 1
Full hammering frequency
3400 impacts/minute
Number of gears
2
Dimensions (LxWxH)
7.3 x 2.9 x 7.8 in
Tool body weight
6.2 lb
A-weighted emission sound pressure level
98 dB (A) 2
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Work faster and smarter – get up to 50% faster driving speed, with two speeds and lower torque for greater control
  • Smaller and more ergonomic design – more compact body allows for greater ease and comfort
  • Work anytime – powerful LED light on the impact driver illuminates your jobsite day and night

Applications

  • Ideal for heavy-duty wood drilling and fastening for utility poles and structural wood bolt connections
  • Drilling, fastening and bolting hardware in wood utility poles and timber

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
