Nuron

SID 4R-22 Right-angle impact driver

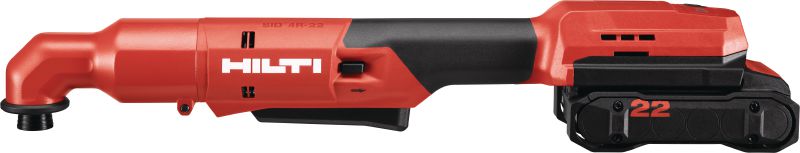

Still life image of the right angle impact driver SID 4R-22 with B22-55 battery.

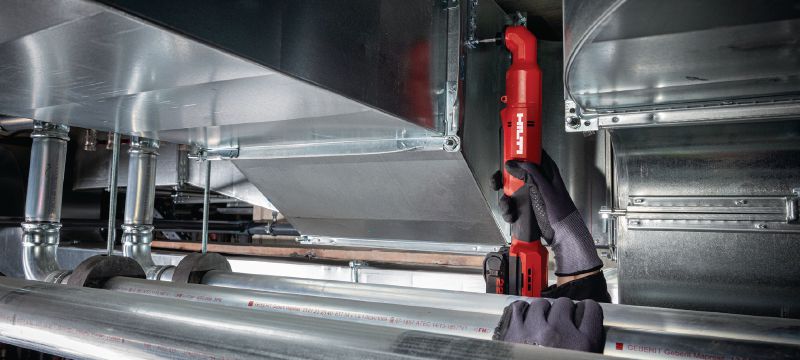

Application image of the right angle impact driver SID 4R-22 with B22-55 battery and with bit. Mechanical ventilation application.
Application image of the right angle impact driver SID 4R-22 with B22-55 battery and with bit. Wood framing application.

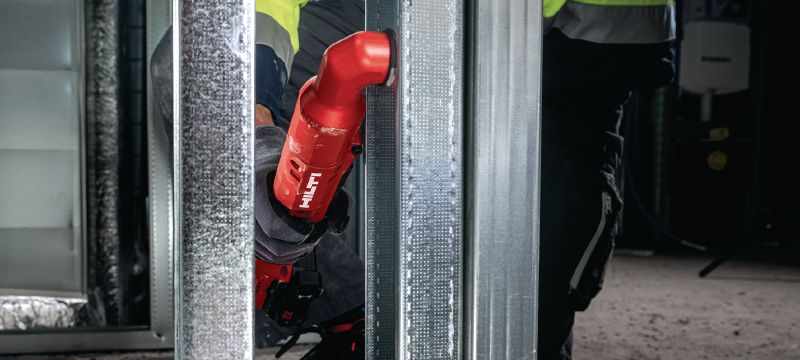

Application image of the right angle impact driver SID 4R-22 with B22-55 battery. Metal framing application.
Application image of the right angle impact driver SID 4R-22 with B22-55 battery. Metal framing application.

Compact, cordless right-angled impact driver for reaching tough to access applications

  • Feature: LED light
  • Chuck type: 1/4" hexagonal click-in
  • No load RPM: gear 1: 1600 rpm; gear 2: 2250 rpm

Customers also searched for cordless impact driver, cordless impact driver, battery impact driver, Nuron impact driver or Nuron battery impact driver.

Customize your kit

Tool Body
Tool body with cardboard box
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$249.00

Technical Data

Feature
LED light
Chuck type
1/4" hexagonal click-in
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
Maximum torque
274 in-lb (1); 867 in-lb (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
Dimensions (LxWxH)
17.2 x 2.7 x 3.1 in
Tool body weight
2.6 lb
A-weighted emission sound pressure level
97 dB (A) 2
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SID 4R- 22 (01) (ENESFRPTEN-USES-USFR-USPT-USARBGCNCSDADEELETFIHEHRHUITJAKKKOLTLVNLNOPLRORUSKSLSVTRUKZHSR), English, Spanish, French, Portuguese, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, Estonian, Finnish, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 5.5 MB ]

Features & Applications

Features

  • Reach even further into confined spaces with the longer grip and in-line battery interface
  • Quick change ¼” hex chuck allows for the easy input of bits
  • Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
  • Strong LED light provides more powerful illumination of the work area

Applications

  • Self-drilling screws – optimized for drilling through metal, then driving threads to completion
  • Wood screws – agile cordless impact driver for attaching wood to your project
  • Masonry screws – two gears so torque can be reduced for masonry screws

For approval or certificate information, please see individual items.
