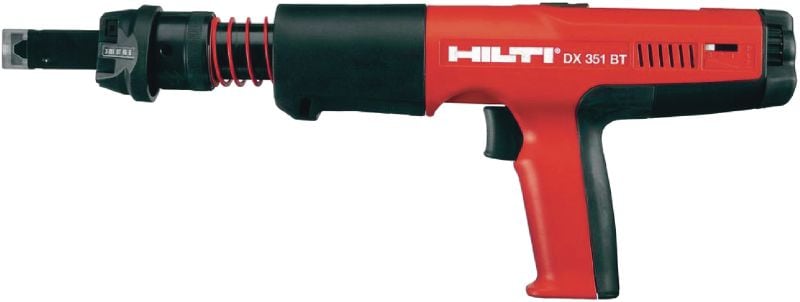

DX 351-BTG Powder-actuated tool

Powder-actuated tool DX 351-BT G #377616

Configurator
Technical Data
Documents
Features & Applications
Related Products
5742.tif
X-BT, DX 351-BT
X-FCM-R
X-FCM-R

Fully automatic, high-productivity and compact powder actuated tool for fastening X-BT threaded stud

  • Dimensions (LxWxH): 17 x 2.2 x 6.5 in
  • Weight: 5 lb
  • Fastener Intake: Threaded stud

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$3,539.00
$3,539.00 / 1 Each

Technical Data

Dimensions (LxWxH)
17 x 2.2 x 6.5 in
Weight
5 lb
Fastener Intake
Threaded stud
Fastener length range
0.84 - 0.84 in
Cartridge type
.27 caliber short
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
85 J
Power regulation
Yes
Piston type
X-351-BTG M8P

Documents

Material safety datasheet
Operating Instruction
Instruction for use
pdf Material safety datasheet Spray 66/300 ML (EN) [ 161.2 KB ]
pdf Material safety datasheet Spray 66/300 ML (ES) [ 164 KB ]

Features & Applications

Features

  • Quicker, easier and more reliable fastening solution which eliminates steel base material finishing work
  • Ideal for use on high-strength coated steel 8 mm or thicker
  • Total mobility and complete independence from an electrical power supply
  • Virtually no reworking required - steel corrosion protection remains intact
  • Cordless solution

Applications

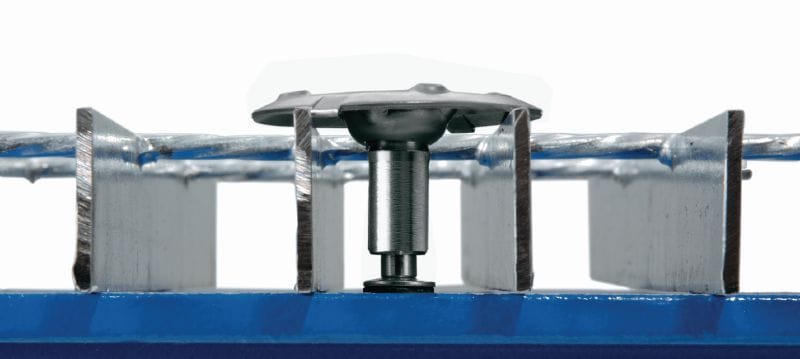

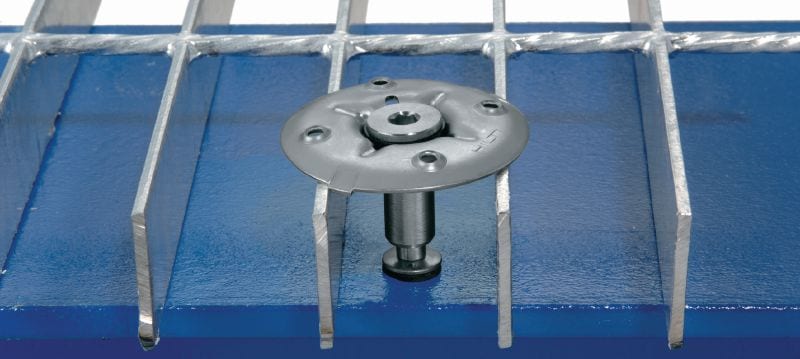

  • Fastening threaded X-BT grating studs to min. 8 mm thick coated steel substrates without through penetration of the steel
  • Fastening to coated steel in corrosive environments with 8 mm (M8) threaded studs
  • Fastening light-duty electrical, such as cables, conduit connectors, cable trays
  • Installing junction boxes, lighting, switch boards
  • Fastening light-duty mechanical, such as pipe hangers, struts
