Nuron

BX 4-IF-22 Cordless concrete nailer (IF edition)

BX 4-22 Battery-Powered Nailer #2374485

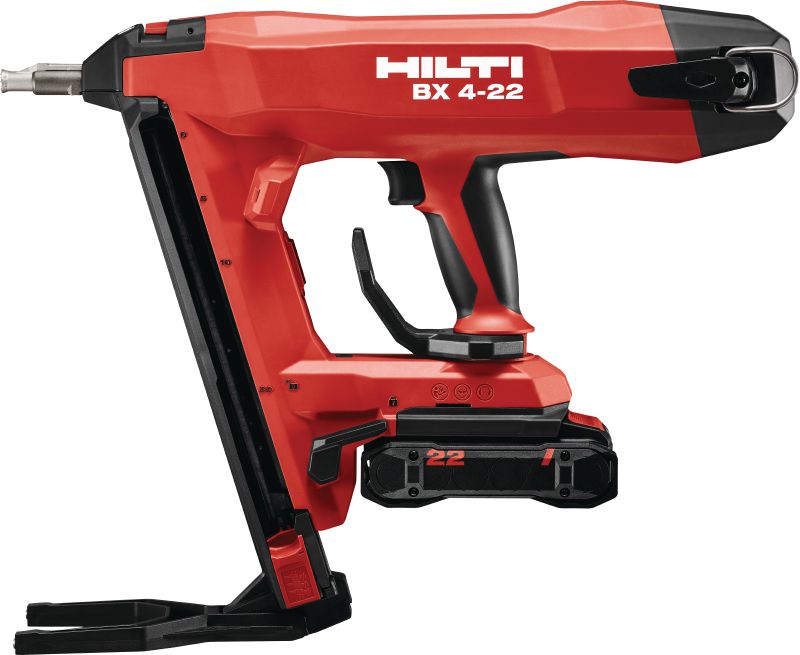

Still life picture of the tool BX 4-22 X without battery and BX 4 magazine X- M30 B4
Construction worker doing metal profile application on the floor using the BX4-22 with the B22-85 battery

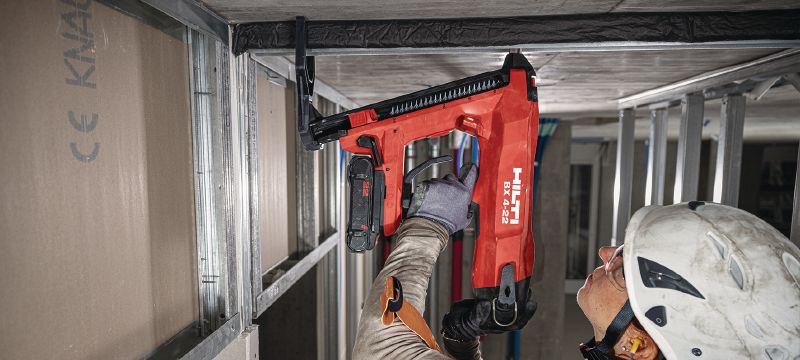

Cropped application picture of a construction worker doing a roof overhead application using the BX 4-22 with support leg mounted and the B22-85 battery
Cropped application picture of a construction worker doing a roof overhead application using the BX 4-22 with support leg mounted and the B22-85 battery
Cropped application picture of construction worker checking data and holding the tool BX 4-22
Still life picture of the tool BX 4-22 X without battery and BX 4 magazine X- M30 B4
Construction worker doing metal profile application on the floor using the BX4-22 with the B22-85 battery
Cropped application picture of a construction worker doing a roof overhead application using the BX 4-22 with support leg mounted and the B22-85 battery
Cropped application picture of a construction worker doing a roof overhead application using the BX 4-22 with support leg mounted and the B22-85 battery
Cropped application picture of construction worker checking data and holding the tool BX 4-22
Promotional video showing the features and benefits of the battery-powered nailer, the BX 4-22. This asset is the W1 version using "battery-powered" instead of "cordless" and has a standard Hilti outro for HOL. (16x9, EN) (W1)

Nuron battery-powered cordless nailer for fastening drywall track and light-duty materials to concrete, steel, and masonry

  • Dimensions (LxWxH): 18.7 x 5.9 x 15.2 in
  • Fastener Intake: Nails on strip
  • Fastener length range: 0.55 - 1.77 in

Customers also searched for battery powered nailer, Nuron battery platform, cordless concrete and steel nailer, cordless nailer or direct fastening tool.

Customize your kit

Tool Body
Tool body with case Includes: 1x X-M30 B4 Nail magazine assy, 1x X-FG B4-IF Fastener guide ctd., 1x BX 4-22 Tool case assy
How many kits do you want to order?
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$1,009.00

Technical Data

Dimensions (LxWxH)
18.7 x 5.9 x 15.2 in
Fastener Intake
Nails on strip
Fastener length range
0.55 - 1.77 in
Rated voltage
21.6 V

Documents

Features & Applications

Features

  • Developed for drywall contractors – battery-powered, our next generation nailer helps you lay track without the noise, recoil, maintenance, costs, and user certifications of gas-actuated fastening
  • Uncompromised cordless performance – drive up to 1000 nails per hour thanks to revolutionary Nuron batteries and the more efficient brushless motor
  • Smart features – nail refill indicator, automatic tool priming upon pick-up, and active troubleshooting via the ON!Track app help reduce downtime on site
  • Engineered for better handling – balanced grip, short stroke, and LED light help you work more comfortably when driving hundreds of nails per day
  • More adaptable fastening – angled magazines for improved accessibility, and detachable magazines in different sizes for increased application range

Applications

  • Fastening wall ties/brick ties to concrete, solid masonry or steel
  • Fastening membranes, mesh and sheeting to concrete
  • Fastening cables and conduits to concrete and steel (optional ME nailer nose recommended)
  • Fastening drywall track to concrete and steel (max. nail length 39 mm)
  • Fastening drywall track to concrete and steel (max. nail length 1-5/8”)

Services

Service icon for Tool Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
