FX 3-A Stud Fusion machine

Configurator
Technical Data
Documents
Features & Applications
Related Products

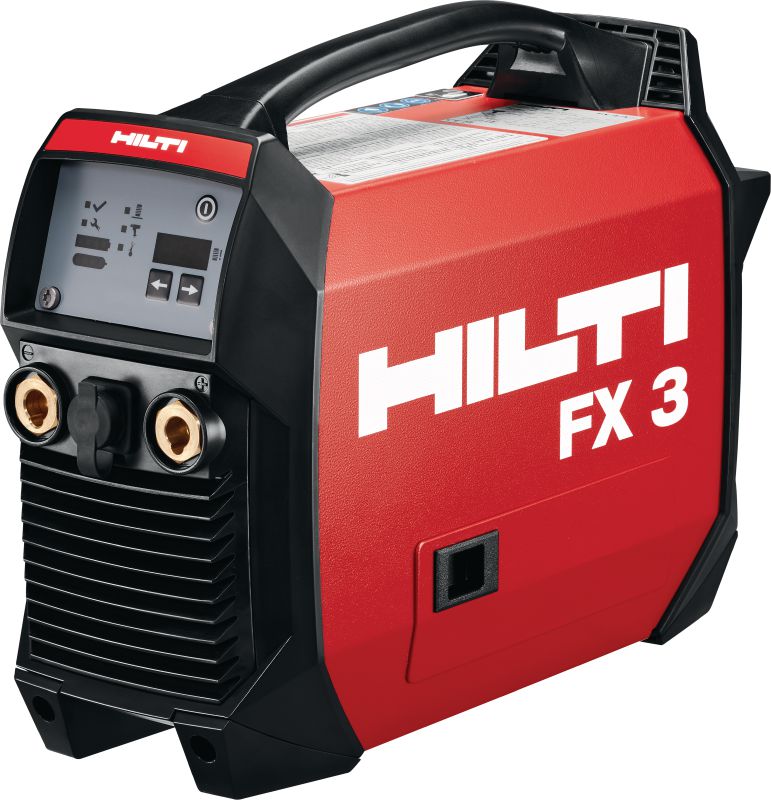

CSF unit without holding strap, gas can door closed

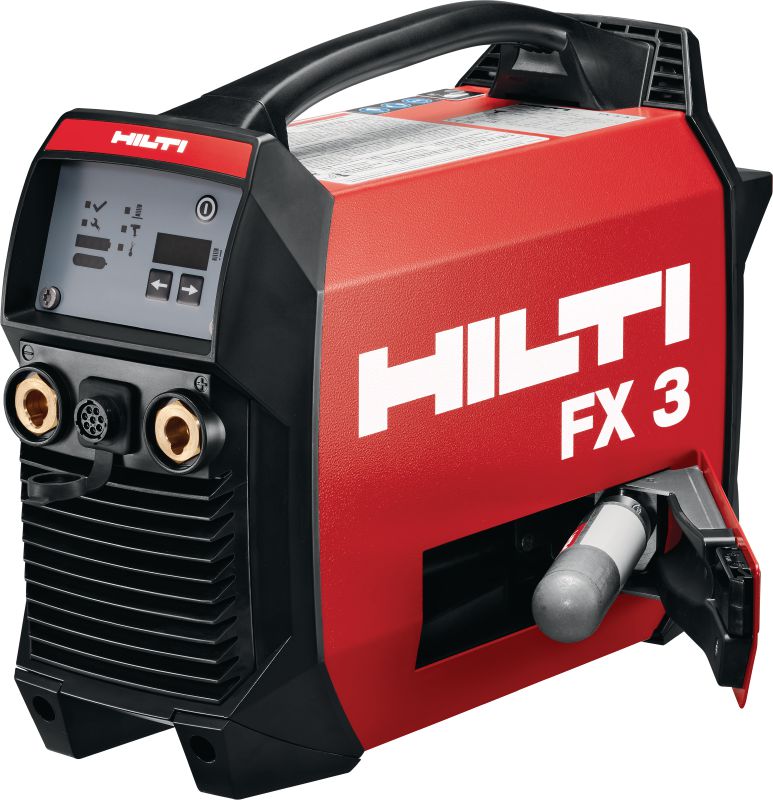

CSF unit without holding strap, gas can opened

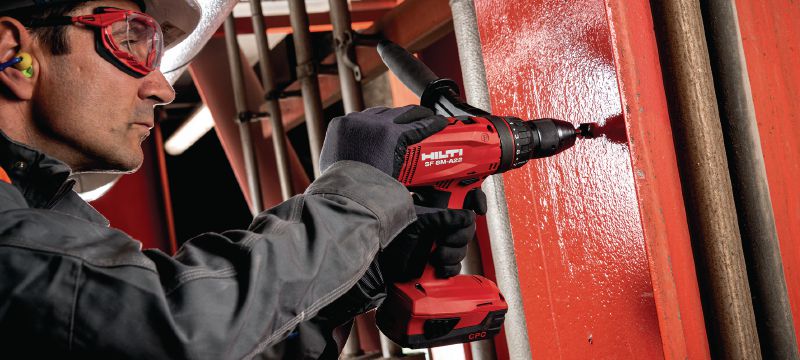

Cropped version of the application image showing the SF 8M coated surface preparation for CSF.

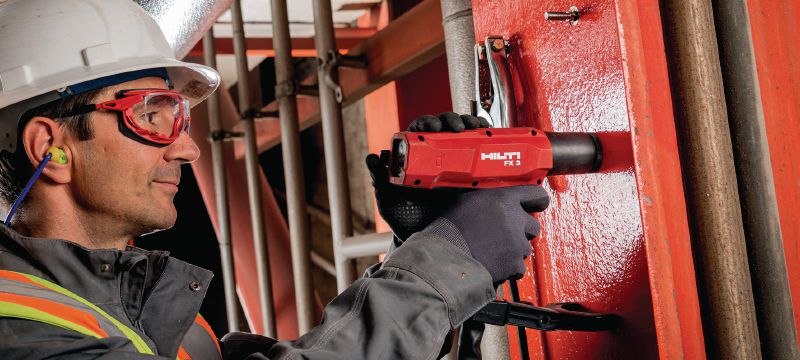

Cropped version of the application image showing the FX 3-HT welding with CSF.
F-BT fastener installation on steel with Cordless Stud Fusion operator

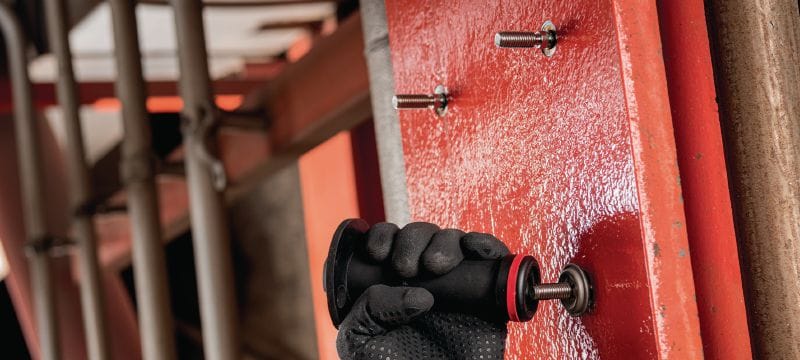

Cropped version of the application image showing sealing washer setting on F-BT-MR SN stud with X-WST F3-BT.

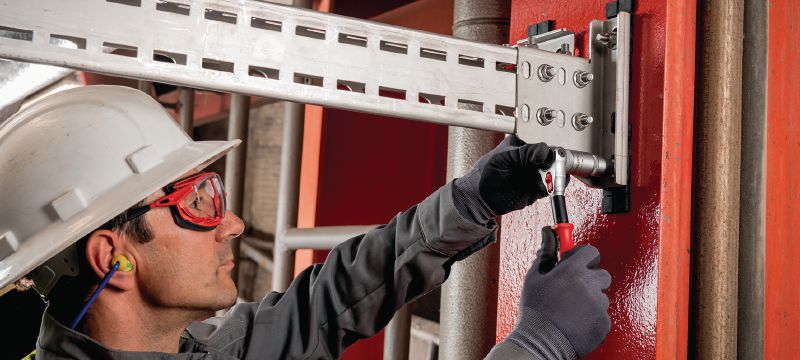

Cropped version of the application image showing the mekano modular support installation with F-BT stud.

Compact and easily portable power supply base unit for fusion welding F-BT threaded studs to steel

  • Application: Fastening to steel
  • Battery voltage compatibility: FX 3-A
  • Certificates: CE

Customers also searched for stud fusion units.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Application
Fastening to steel
Battery voltage compatibility
FX 3-A
Certificates
CE
Charger type
C53
Operating Temperature Range
5° C - 40° C
Power (max.)
5.3 kW
Power regulation
Yes
Power source type
Battery platform
Rated voltage
52.8 V
Storage temperature range
-4 - 122 °F
Tool body weight
28.2 lb
Weight
28.2 lb

Documents

Technical information
Certificate
Approval document
Material safety datasheet
Operating Instruction
pdf CSF Technical Manual North America, 02/2025, English [ 5.4 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR/5724148/03, 2025-05-02, including grinding, English [ 1.3 MB ]
pdf WPS F-BT-MR (EU-2) Version 01, 07/2025, English [ 318.4 KB ]
pdf WPS F-BT-MR (EU) Version: 03, 07/2025, English [ 324.6 KB ]
pdf CSF HNA Visual Examination Catalog, English [ 6.9 MB ]

Features & Applications

Features

  • Hilti Stud Fusion is a revolutionary welding method which helps you avoid the high costs, specialist operators, inconsistency and rework associated with traditional welding
  • Save time and labor – Stud Fusion is faster, safer and can be performed by non-specialist, trained operators. Eliminate the trial-and-error of traditional welding: simply select the type of threaded stud you’re working with, then this unit adjusts itself to the recommended settings for all working conditions
  • Safer jobsites and yards – this cordless welding system works entirely without heavy gas cylinders, power cords, angle grinders, fumes or light radiation
  • Get what you spec – the smart features of Hilti Stud Fusion make repeatable and more consistent fastenings to steel easier to achieve, even under tough jobsite conditions
  • Simplify and standardize fastening design – engineering support is available via the PROFIS Modular Support Engineering software suite, or by phone, in person or on the jobsite with Hilti Design and Engineering Support

Applications

  • Mobile welding fusion unit, containing a gas can and rechargeable battery, to power the Hilti Stud Fusion hand tool
  • Fastening to steel in polluted/corrosive environments (up to C5) for higher tensile loads or thinner base materials, and preserving the base material integrity
  • Steel fastening in wind, oil and gas offshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and other equipment fastenings
  • Steel fastening in oil and gas onshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and other equipment fastenings
  • Shipbuilding – block alignment, fastening false ceilings, raised floors, inspection grids and manholes, water spray separators; fastening of internal and external furniture and outfitting (lamps, switches, junction boxes etc.); support for electric/piping/ventilation services

For approval or certificate information, please see individual items.
