DSW 2005-TS Wire sawing conversion kit

DSW 2005-TS 60mm Wire Saw #3921102

Configurator
Technical Data
Documents
Features & Applications
Related Products

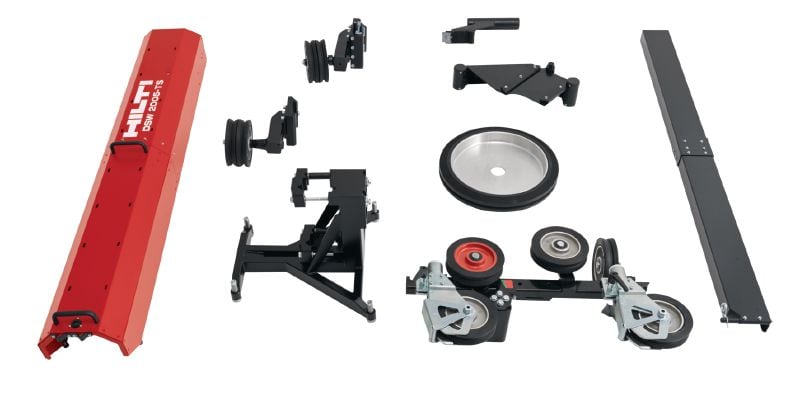

Wire kit, DSW 2005-TS wire kit for opening and cuts on concrete
Wire kit

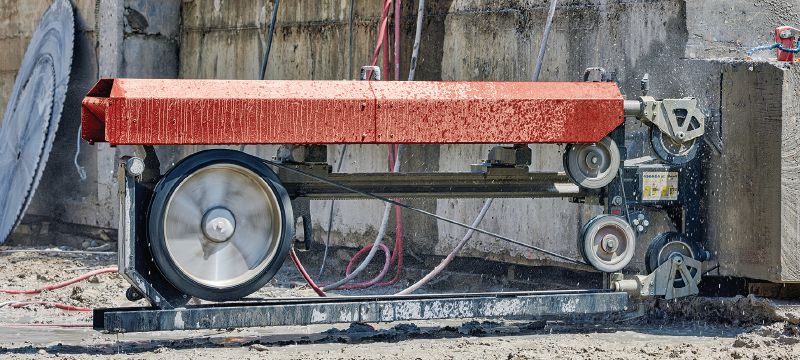

Application picture of the DSW 2005-TS wire kit. Horizontal cut in concrete.

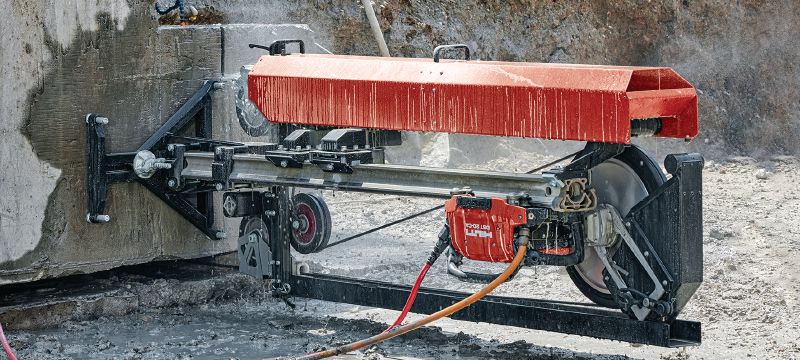

Application picture of the DSW 2005-TS wire kit. Horizontal cut in concrete.

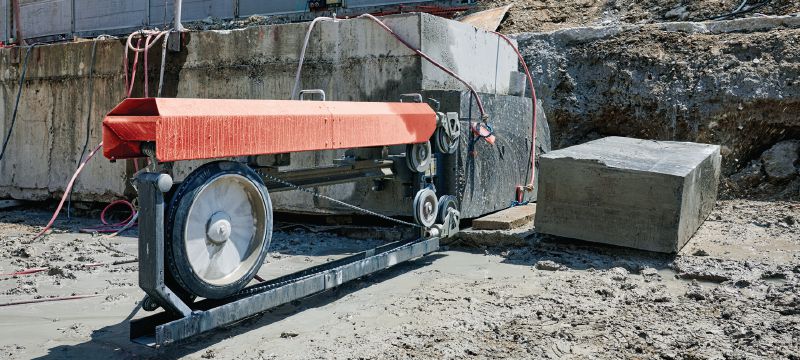

Application picture of the DSW 2005-TS wire kit. Horizontal cut in concrete. End of the cut.

Wire saw kit for converting the DST 20-CA wall saw

  • Power source: Electric
  • Min. generator power: 40 kVA
  • Weight: 105000

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$28,799.00
$28,799.00 / 1 Each

Technical Data

Power source
Electric
Min. generator power
40 kVA
Weight
105000
A-weighted emission sound pressure level
85 dB (A) 1
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Brochure
Operating Instruction
pdf Electric Diamond Wall and Wire Saws Leaflet [ 9.7 MB ]

Features & Applications

Features

  • Quick adaptation of the DST 20-CA wall saw from cutting with circular blades to diamond wires
  • Smoother and easier to start when used with the dedicated software
  • Robust and compact system

Applications

  • Cutting through thick components
  • Cutting rectangular openings (doors, windows and shafts etc.) without the over-cut corners left by a circular blade
  • Small structural modifications (cutting through columns and beams)
