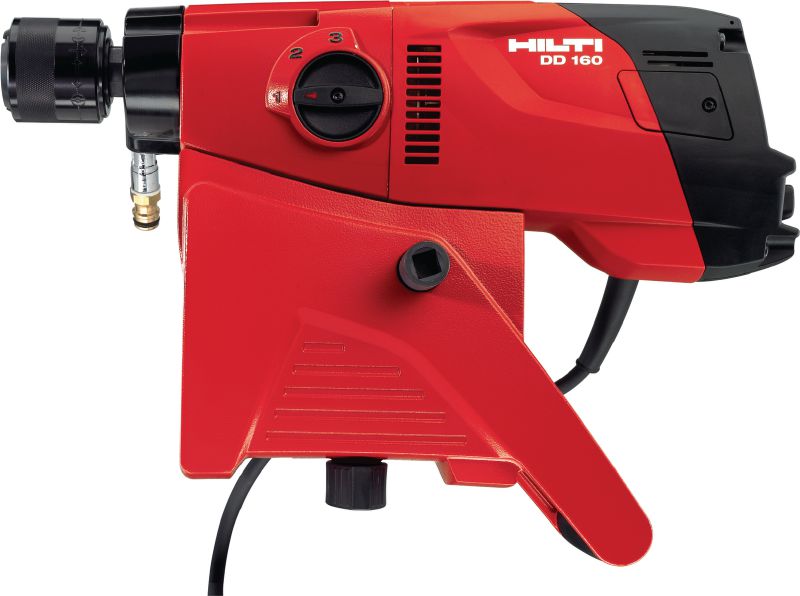

DD 160 Core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
61792.tif
Drill Stand
Drill Stand
61789.tif
61791.tif
61790.tif
61788.tif

Compact but powerful diamond coring machine for rig-based concrete coring from 25-202 mm (31/32 - 7-15/16”) in diameter

  • Diameter range: 31/32 - 7-15/16 in
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for diamond core drill, core drill, coring tool, diamond coring tool or tool for coring holes.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $3,000.00

Technical Data

Diameter range
31/32 - 7-15/16 in
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 460 rpm; gear 2: 760 rpm; gear 3: 1690 rpm
Weight according EPTA-Procedure 01/2003 without battery
22.7 lb
Weight of complete system
36 lb
Dimensions (LxWxH)
17.7 x 7.7 x 12.4 in
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)
4 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - Corebit A
PS/PL
Corner accessibility
2.1 in
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Approval document local
Documentation
Operating Instruction
Material safety datasheet
CSA US (dummy for CSA logo)

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively-designed features and controls
  • Sturdy three-speed gearing for outstanding concrete coring performance across the entire diameter range
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximize core bit life
  • Choice of a high-grade drill stand with many useful features or simple, very compact drill stand with basic functionality
  • Hilti BI+ quick-release connection lets you change core bits in seconds - no tools required (keyless system)

Applications

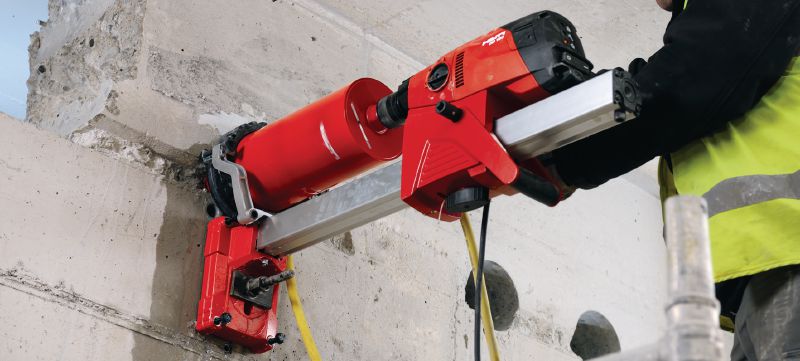

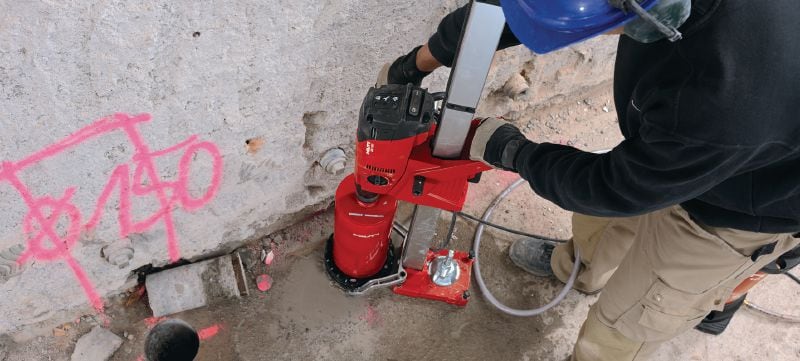

  • Rig-based wet drilling in concrete for pipe penetrations in plumbing, heating and air conditioning installations
  • Stitch drilling for cable trays and ventillation ducts

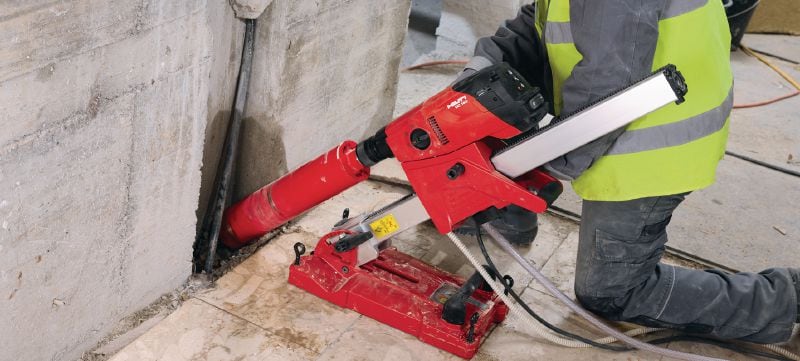

  • Drilling blind holes for large-diameter anchors, reinforcing bars and the installation of railings and barriers
  • Rig-based core drilling in wood up to 202 mm (8”) diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
