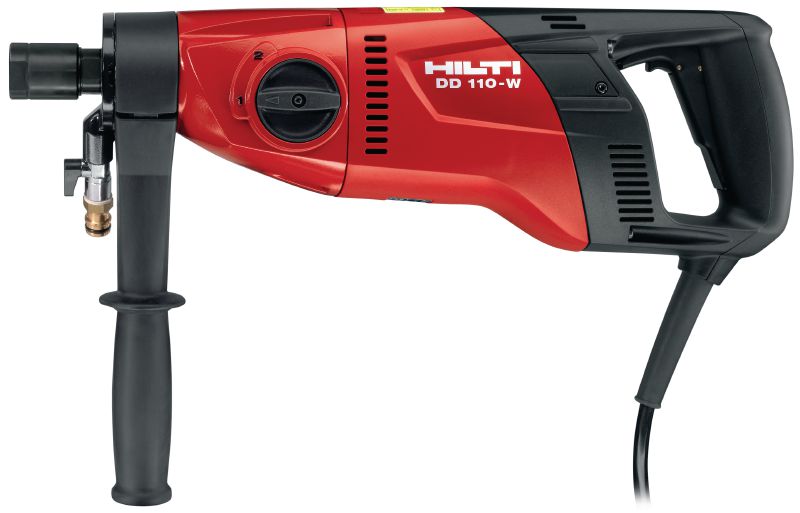

Compact, light diamond coring machine for wet or dry handheld coring from 16-162 mm (5/8 - 6-3/8") in diameter

  • Diameter range: 5/8 - 6-3/8 in
  • Base material: Concrete, Masonry
  • Operation mode: Hand-held drilling system

Customers also searched for diamond core drillcore drillcoring tooldiamond coring tool or tool for coring holes.

Technical Data

Diameter range
5/8 - 6-3/8 in
Base material
Concrete, Masonry
Operation mode
Hand-held drilling system
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according EPTA-Procedure 01/2003 without battery
12.6 lb
Dimensions (LxWxH)
19.7 x 4.7 x 6.7 in
A-weighted emission sound pressure level
92 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)
4.6 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - Corebit A
HWC
Corner accessibility
1.9 in
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • High motor performance and sturdy two-speed gearing for optimum drilling speed
  • Compact, lightweight unit – for much easier handling
  • Safety clutch, overload protection and safety switch for maximum peace of mind when operating
  • Drills penetrations quickly and effortlessly in brick, block and concrete
  • Hilti BI+ quick-release connection lets you change core bits in seconds - no tools required (keyless system)

Applications

  • Handheld wet coring in reinforced concrete
  • Dry coring in aerated concrete, sandlime block, perforated brick, solid brick and clinker
  • Drilling of sockets for the installation of electrical fittings
  • Through holes for cables and cable trays
  • Through holes for pipes etc. in plumbing, heating and air conditioning installation

For approval or certificate information, please see individual items.
