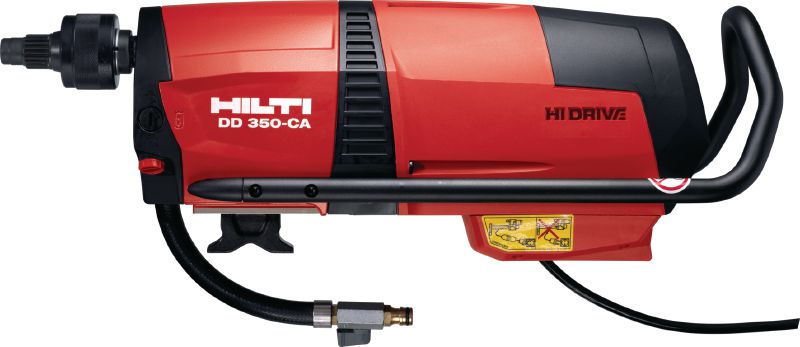

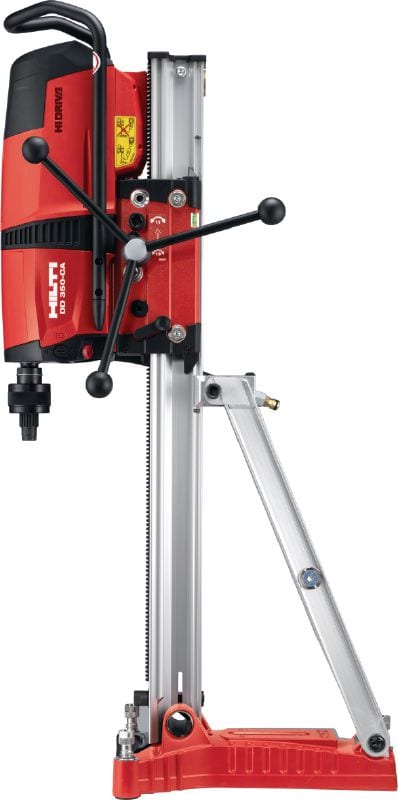

DD 350-CA Core drill

DD 350-CA, BL chuck, Diamond coring tool
BL chuck
BL chuck
19650.tif
43620.tif

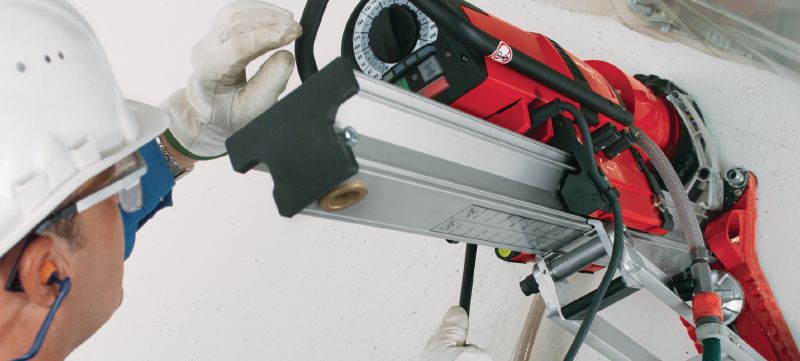

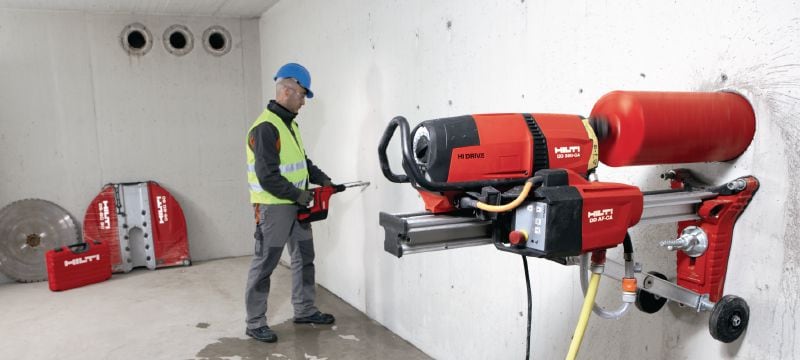

Coring with DD AF-CA

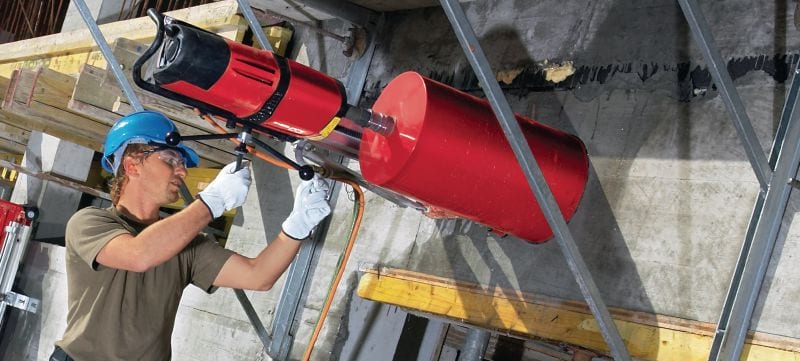

coring tool

Heavy-duty diamond coring machine with high-frequency motor and optional auto-feed unit for rig-based coring from 52-500 mm (2-1/16 - 19-11/16”) in diameter

  • Diameter range: 2-1/16 - 19-11/16 in
  • Base material: Concrete, Reinforced concrete
  • Operation mode: Rig-based drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Diameter range
2-1/16 - 19-11/16 in
Base material
Concrete, Reinforced concrete
Operation mode
Rig-based drilling system
Rated input power
3600 W
Number of gears
10
No load RPM
gear 4: 619 rpm; gear 5: 571 rpm; gear 6: 524 rpm; gear 7: 405 rpm; gear 8: 357 rpm; gear 9: 286 rpm
Weight according EPTA-Procedure 01/2003 without battery
31.7 lb
Weight of complete system
77 lb
Dimensions (LxWxH)
23.9 x 7.6 x 8.5 in
A-weighted emission sound pressure level
95 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core A (ah,DD)
2.5 m/s²
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf OSHA 1926.1153, Section VI and VII, English [ 606 KB ]

Features & Applications

Features

  • Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range
  • Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
  • Iron Boost: for a quick performance boost with increased torque when drilling through rebar
  • Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
  • Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators

Applications

  • Drilling through-holes and penetrations
  • Blind holes for setting anchors or post-installed rebar
  • Corner holes for sawing
  • Manhole openings
  • Stitch coring for installing cable trays

For approval or certificate information, please see individual items.
