Autofeed units for core drills

Autofeed unit DD AF-CA #2095123

Configurator
Technical Data
Documents
Features & Applications
Related Products
L073451.tif
L073457.tif
BL chuck
BL chuck

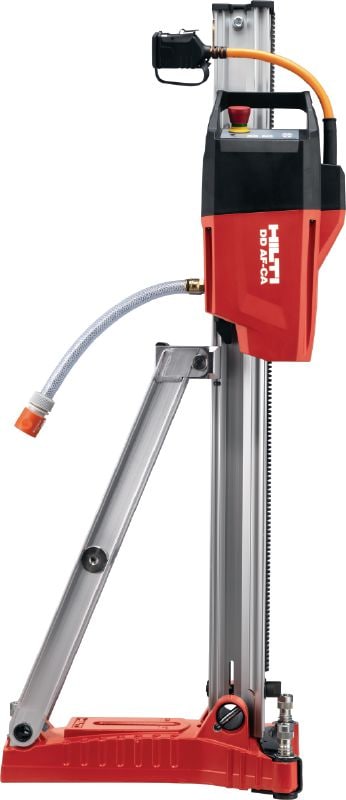

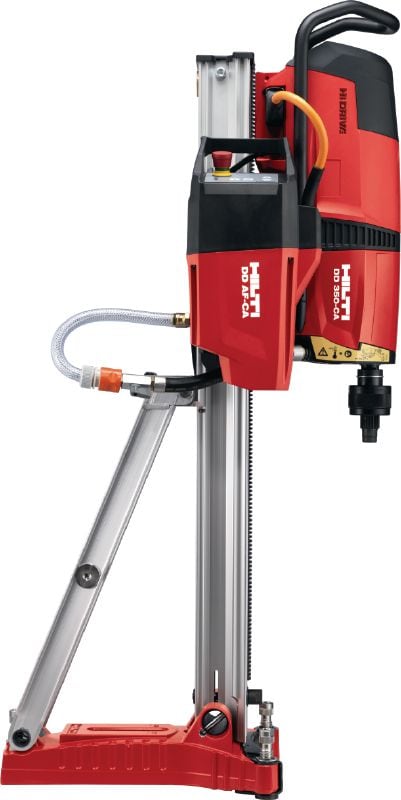

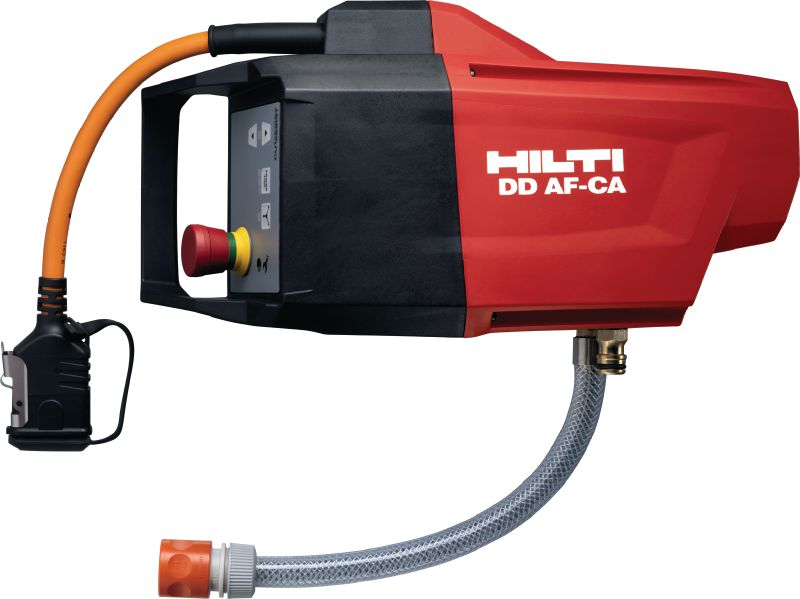

Autofeed unit to assist the drilling process with rig-based diamond coring systems – for use with the DD 350-CA and DD 500-CA

  • For use with: DD 350-CA, DD 500-CA
  • Weight: 9.92 lb
  • Dimensions (LxWxH): 14.2 x 7.6 x 5.2 in

Choose options

Rated input voltage
  • 240 V
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$4,172.00
$4,172.00 / 1 Each

Technical Data

For use with
DD 350-CA, DD 500-CA
Weight
9.92 lb
Dimensions (LxWxH)
14.2 x 7.6 x 5.2 in
IP protection class
IP 55 (EN 60529)
Rated input voltage
240 V
Rated input power
100 W

Documents

pdf Operating Instruction DD AF-CA (01), Spanish, English, French, Portuguese [ 2.4 MB ]
pdf Operating Instruction DD AF-CA (01) (EN-US), English [ 2.2 MB ]
pdf Operating Instruction DD AF-CA (01) (ES-US), Spanish [ 2.2 MB ]
pdf Operating Instruction DD AF-CA (01) (PT-US), Portuguese [ 2.2 MB ]

Features & Applications

Features

  • Unmatched productivity with fully automated drilling process
  • Automatic surface detection, water management, hole starting, iron boost and through-hole detection
  • Intelligent algorithm for immediate reaction to any change in the characteristics of the base material
  • Applies optimum power during the drilling process, resulting in extended equipment lifetime and faster drilling progress
  • No exposure to vibration – for greater operating safety and higher working comfort

Applications

  • Serial drilling of through-holes and penetrations
  • Corner holes for sawing
  • Large diameters and deep hole drilling
  • Stitch coring for installing cable trays
  • Drilling where access to the hole is difficult
