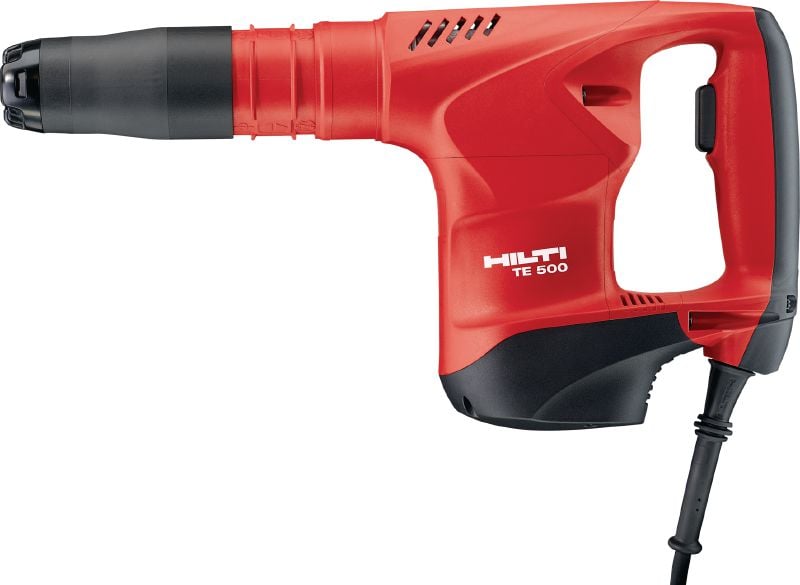

Robust SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS Max)
  • Weight according EPTA-Procedure 01/2003 without battery: 10.8 lb

Customers also searched for demolition hammerSDS-Max demolition hammerdemo hammer or concrete breaker.

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS Max)
Weight according EPTA-Procedure 01/2003 without battery
10.8 lb
Single impact energy
5.2 ft-lbs
Full hammering frequency
3228 impacts/minute
Max. chiseling performance
52 in³/min
Dimensions (LxWxH)
16.5 x 4.1 x 9.4 in
Triaxial vibration for chiseling into concrete
13.5 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
92 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Robust tool with extra protection against heat and dust – prolonging the lifetime and lowering repair costs
  • Low weight and compact design for easy handling
  • Great performance to weight ratio – so you get a powerful breaker which is much less tiring to use
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

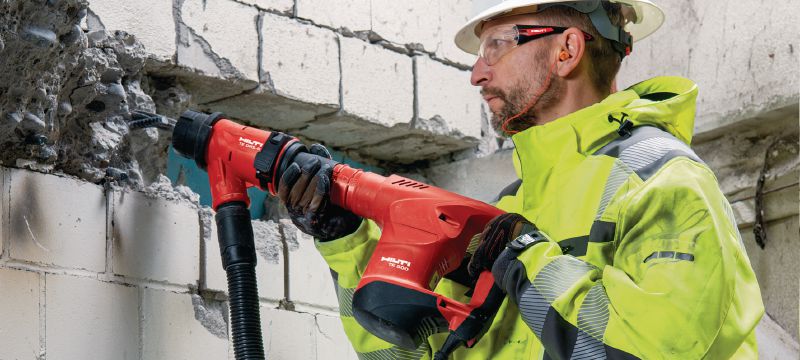

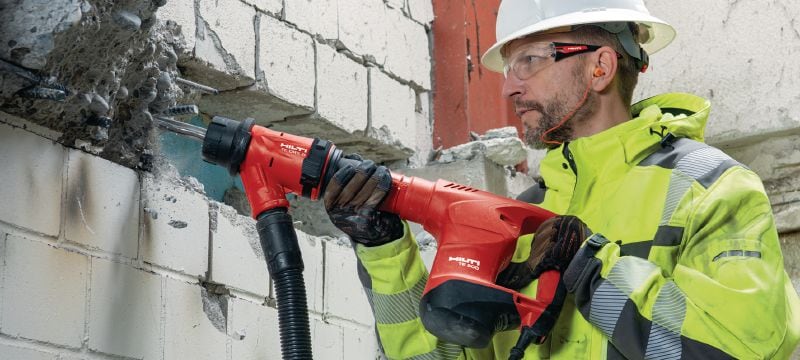

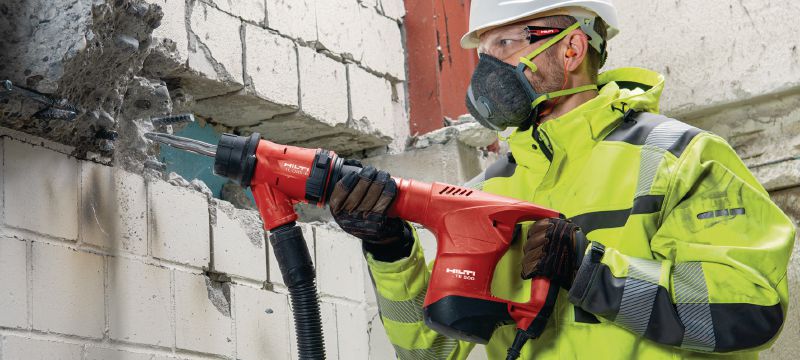

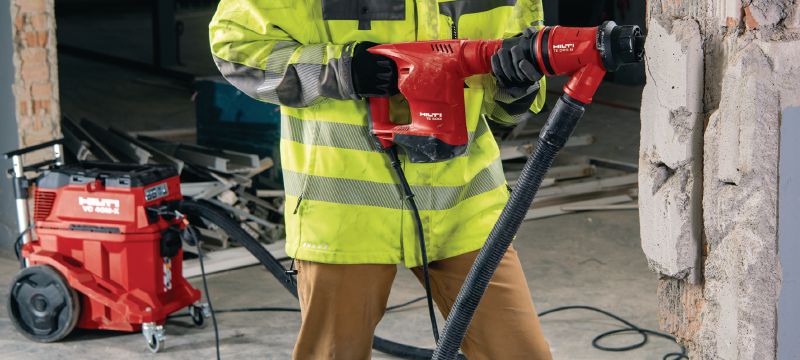

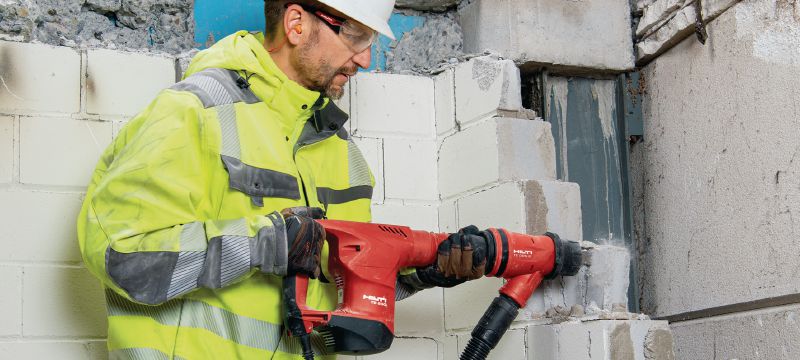

  • Optional DRS-B dust removal system collects up to 95% of dust

Applications

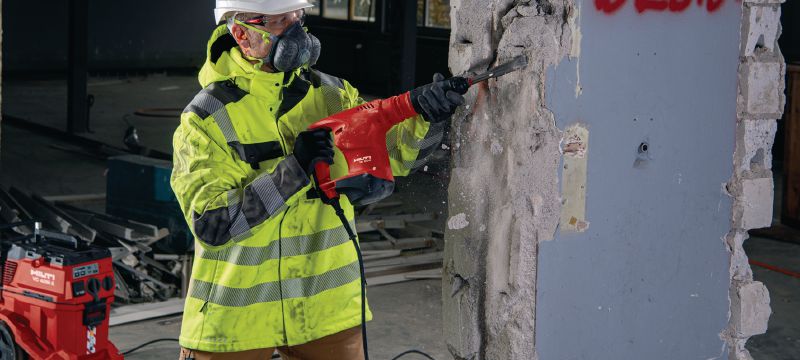

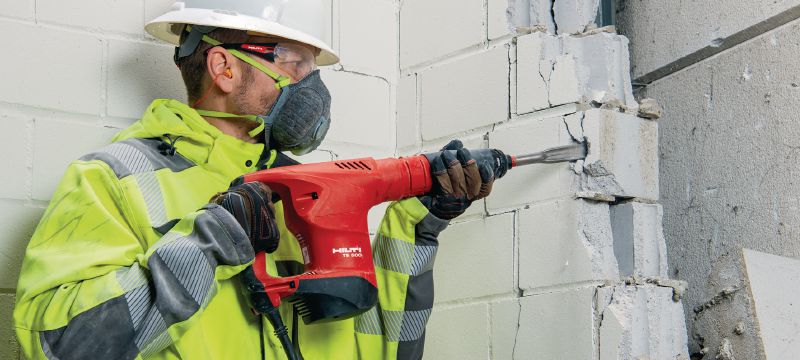

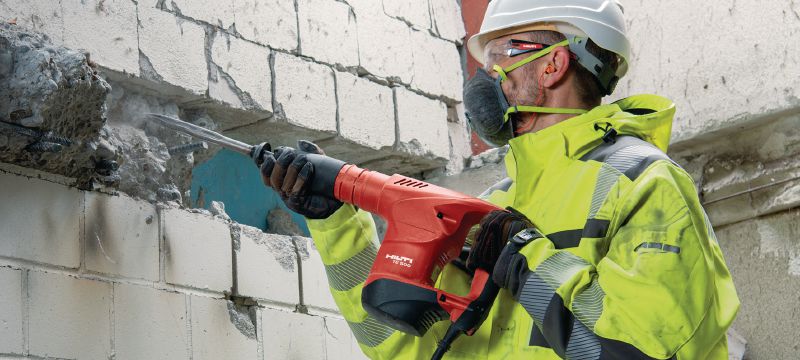

  • Chiseling on concrete and masonry walls
  • Creating channels in concrete and masonry to install pipes and cables
  • Light chipping and tile removal
  • Enlarging breaches

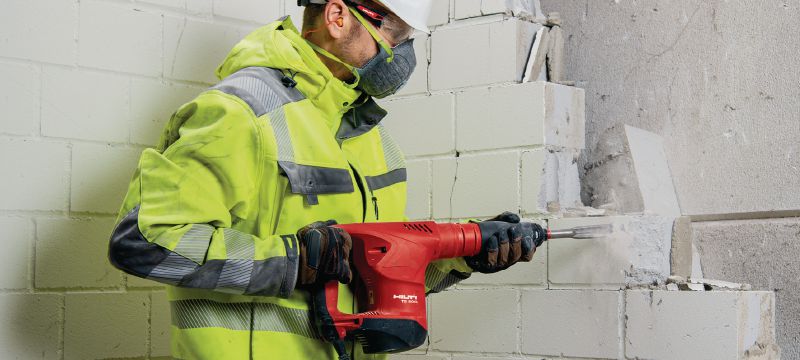

  • Light-duty wall demolition

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Individual labels and online visibility provide tool fleet transparency.
More information about Fleet Management
