DSH 700-X Gas cut-off saw

DSH700-X + 3P Diamond Blades #3538196

DSH 700-X, Hand held gas saw
DSH 700-X gas saw including DSH-P (self-priming pump) kerb stone cutting
DSH 900-X gas saw including DSH-P (self-priming pump) concrete bock cutting

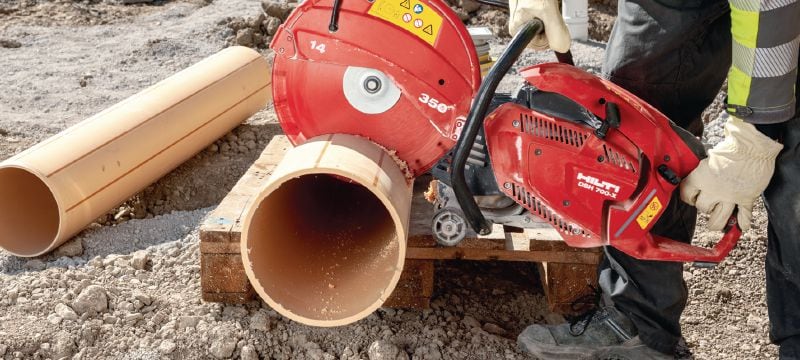

SPX Metal disc cutting pipe with DSH 700-X
SPX Metal disc cutting metal deck with DSH 700-X

Versatile rear-handle 70 cc gas saw with auto-choke – cutting depth up to 5" with a 14" blade

  • Rated power: 3.5 kW
  • Wet or dry operation: Wet and Dry
  • Dimensions (LxWxH): 31.8 x 10.3 x 17.1 in

Customers also searched for gas concrete saw, gas powered saw, gas powered metal cutting saw, gas powered metal saw or gas powered concrete saw.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$1,721.01
$1,721.01
/
1 Each

Technical Data

Rated power
3.5 kW
Wet or dry operation
Wet and Dry
Dimensions (LxWxH)
31.8 x 10.3 x 17.1 in
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
99 dB (A) 1
Disc diameter
14 in
Cutting depth
5 in
Triaxial vibration value for cutting concrete slab (ah)
4.9 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Diamond impregnated inserts (ES) [ 511.2 KB ]
pdf Material safety datasheet Diamond impregnated inserts (EN) [ 259.6 KB ]

Features & Applications

Features

  • The most versatile gas cut-off saw we've ever made – cut up to 5" deep with a 14" blade, and even convert to flush-cut mode
  • Easy-start gas saw – unique auto-choke helps to make first-pull ignition the norm, and flooded engines virtually impossible
  • Robust – upgraded air filters and re-engineered internal components help the gas saw to deliver uninterrupted, high performance
  • Easy self-service maintenance – pre-tensioned belt and virtually unbreakable starter rope help to minimize the saw's maintenance downtime
  • Compatible with the DSH-P water pump – feeds water to your gas saw from any source, no pressurization needed

Applications

  • Construction work – cutting out openings in brick or concrete walls
  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Laying paving – cutting curbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Floor construction – cutting expansion joints in fresh concrete
