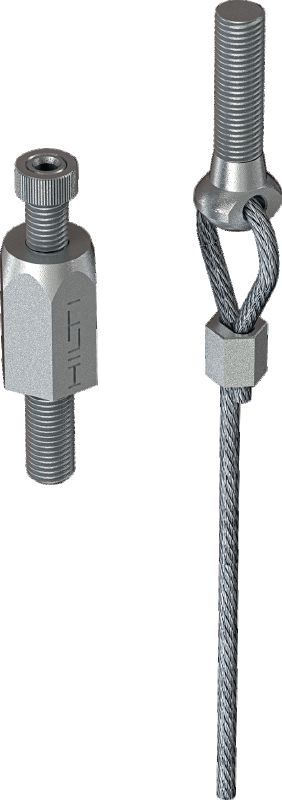

MW-EB CL Channel lock kit with wire rope eyebolt ending

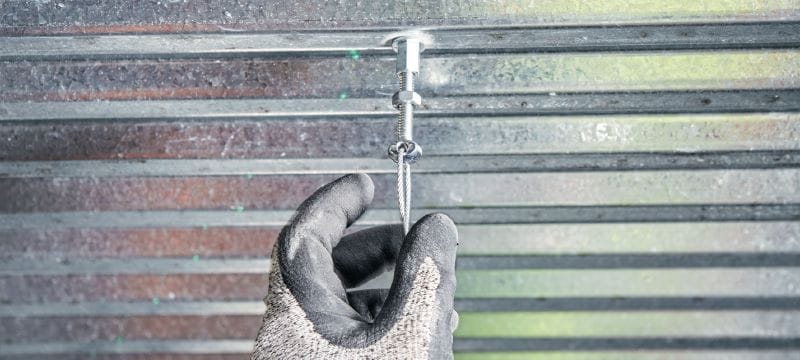

Wire rope with pre-mounted threaded eyebolt and adjustable channel lock for suspending strut trapeze from concrete
- Material composition: Wire: steel, Lock: brass, Eye-bolt: steel
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Customers also searched for Duct Hanger, Wire Hanger, Aircraft Cable, Cable or Gripple.
Choose options
Diameter - D
- 0.08 in
- 0.13 in
Length - L
- 80 in
- 120 in
- 240 in
Thread connection - M
- 1/4 in
- 3/8 in
Pack size
- 20 pc
- 30 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $268.00
Technical Data
Material composition
Wire: steel, Lock: brass, Eye-bolt: steel
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features

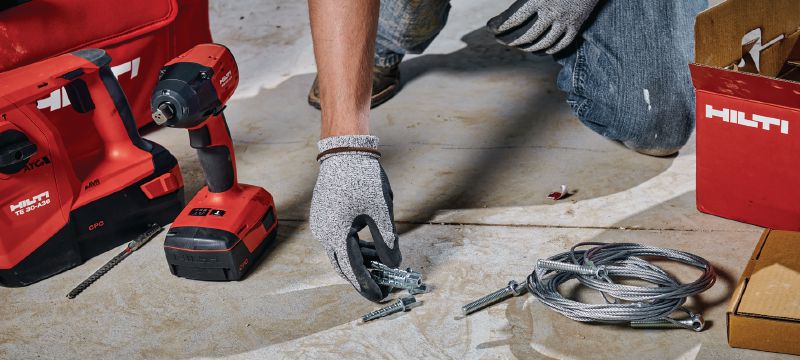

- Shorter installation time – wire suspension kits give you a much faster alternative to traditional methods with threaded rod
- Versatile – you can use the same wire suspension kit with a wide range of fixtures, base materials and Hilti MT strut and MVA ventilation hardware, simplifying inventory management

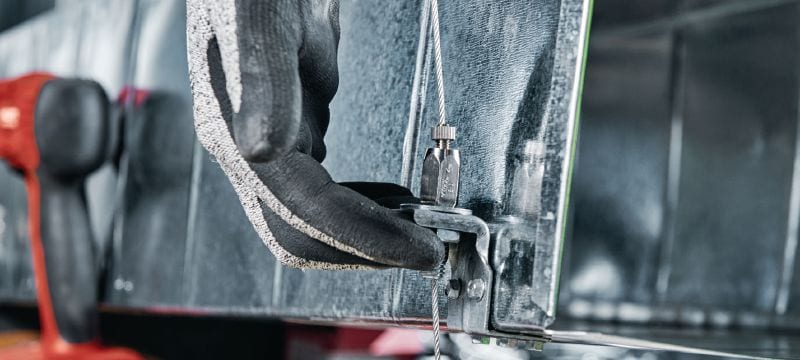

- Easier to adjust – self-locking wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler. Pre-mounted safety nuts on the locks can then be tightened to help fix the wire rope securely in place
- Productivity services available – engineering and prefabrication services can be provided on complex projects
- SMACNA compliance – tested and verified according to the HVAC Duct Construction Standards (ANSI/SMACNA 006-2006)
Applications
- Suspending strut trapeze from concrete
- Suitable for use in dry, indoor environments only
For approval or certificate information, please see individual items.
