X-MW MX Wire hanger system

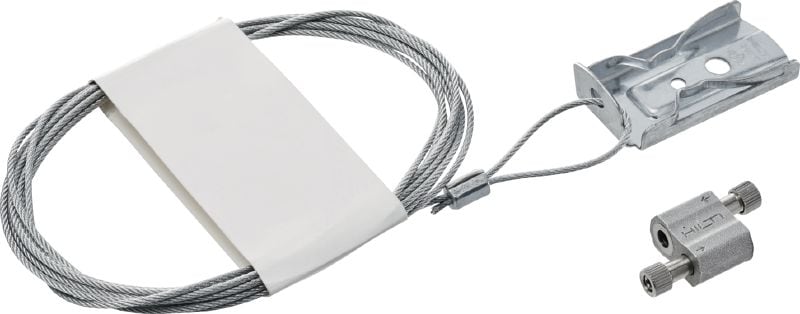

X-MW MX L everything that comes out of the package

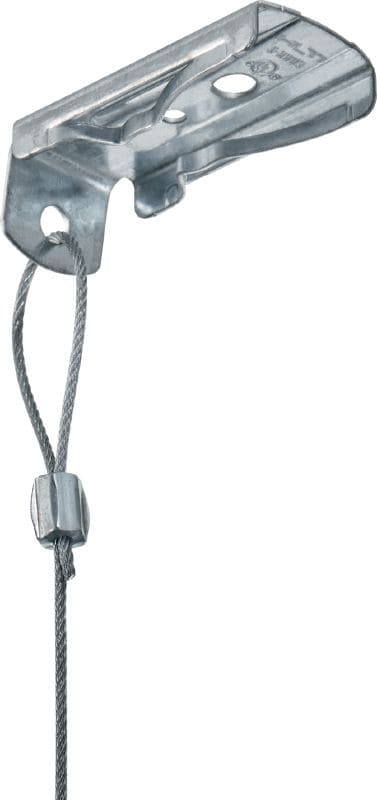

X-MW MX L nail clip close-up picture with wire and ferrule
X-MW portfolio loop lock close-up picture

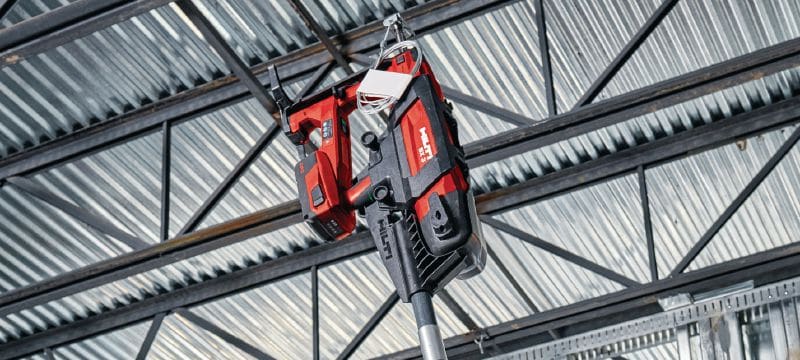

X-MW-MX with BX 3-ME
Loop lock with X-MW
Loop lock with X-MW
X-MW MX
X-MW MX with BX 3-ME

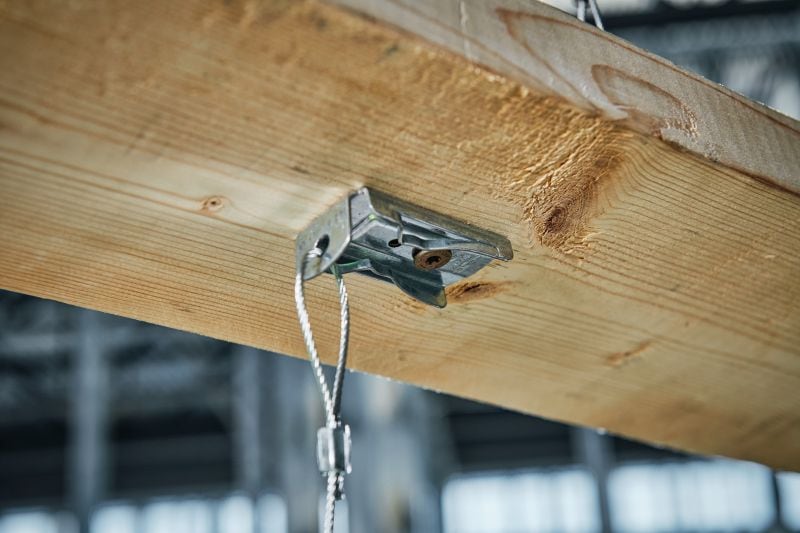

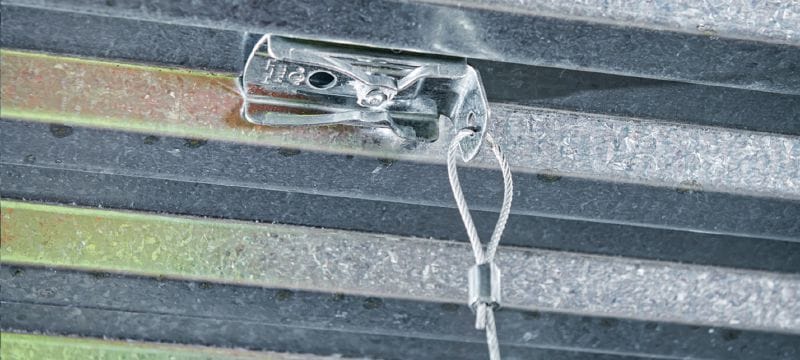

X-MW MX installed in Ceiling

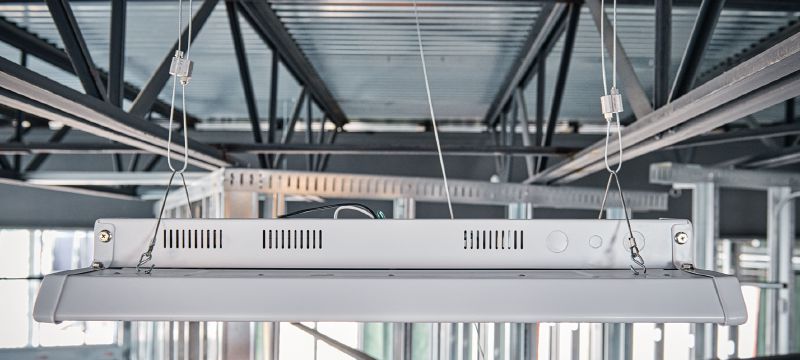

Light hung with Wire
Round duct with wire

Wire hanger system for spiral HVAC ducting and lighting applications, installed using battery-actuated fastening tools

  • Application: HVAC connections
  • Material: Carbon steel
  • For use with (tools): BX 3, BX 4-22
ultimate

Customers also searched for Wire, Wire hanger, Aircraft, Cable or Gripple.

Choose options

Pack size
  • 20 pc
  • 30 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $244.00

Technical Data

Application
HVAC connections
Material
Carbon steel
For use with (tools)
BX 3, BX 4-22
Base materials
Concrete, Steel
Corrosion protection
Galvanic zinc plated
Environmental Conditions
Dry indoor
Product Class
Ultimate

Documents

pdf UL-E522519_X-MW-ALH27_X-MW-ALH32_X-MW-MX_Luminaire-Fittings_2024-12-06_en, English [ 202.5 KB ]
pdf UL-Can_E522519_X-MW-ALH27_X-MW-ALH32_X-MW-MX_Luminaire-Fittings_2024-12-06_en, English [ 204.1 KB ]
pdf ICC ESR-2795 for Wire Hanger System X-MW, English [ 886.1 KB ]

Features & Applications

Features

  • Shorter installation time – wire suspensions are a faster alternative to threaded rod
  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making leveling, retrofitting and long drop lengths much simpler
  • Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits
  • Combustion-free operation – no gas cans or powder cartridges to store and dispose of and no certification required when used with fully electric BX fastening tools,
  • Can be fastened while standing on the floor using the BX pole tool - safer method of installation avoiding lifts and ladders

Applications

  • Suspending spiral HVAC duct from concrete, wood and metal deck
  • Suspending electrical lighting from the ceiling
  • Suspending security attachments (secondary attachment point to work if first attachment point fails)
  • Up to 30 lbs (13.5 kg) allowable load values
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
