MQS-RH Retrofit hinge

Configurator
Technical Data
Documents
Features & Applications
Related Products

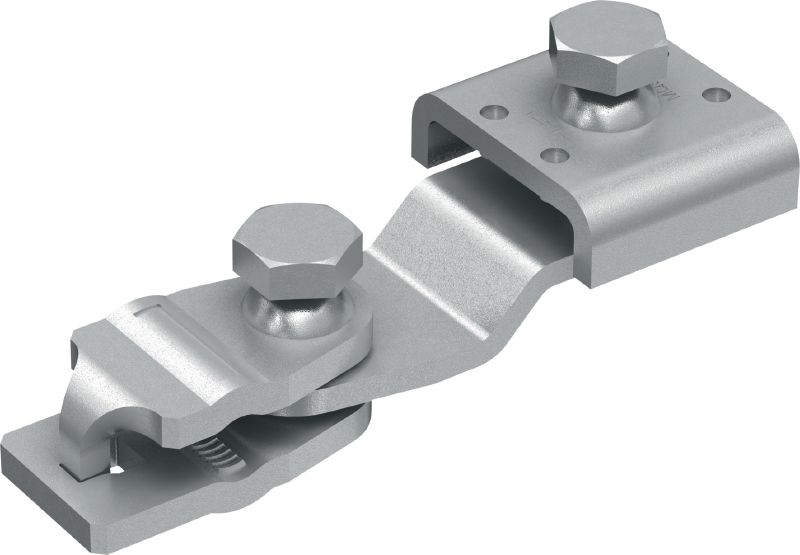

Seismic retrofit hinge MQS - RH - 3/8"
MQS-RH Seismic

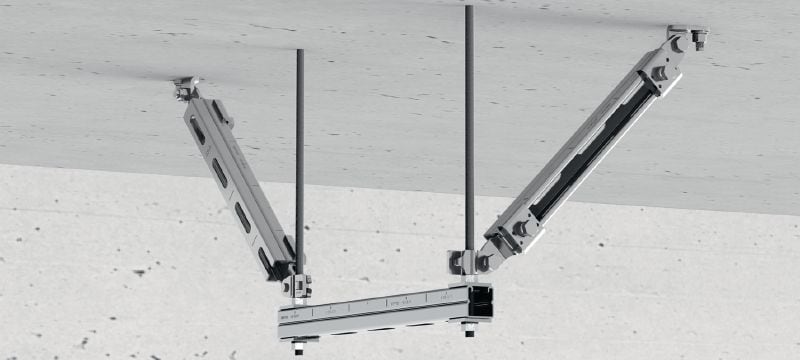

Seismic Retrofit Hinge Trapeze, cropped for PDP
MQS-RH Seismic

Seismic retrofit hinge for attachment to threaded rod

  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $289.00

Technical Data

Details
Technical illustrations
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Easy and fast installation with connection to the serrated Hilti strut
  • Verification of proper installation torque with usage of breakaway bolt heads
  • Design allows installation of lateral bracing on a rod with no pre-assembly of nuts or washers.
  • Double pivoting connection allows for both flexible adjustment to various bracing angles and longitudinal or transverse orientation

Applications

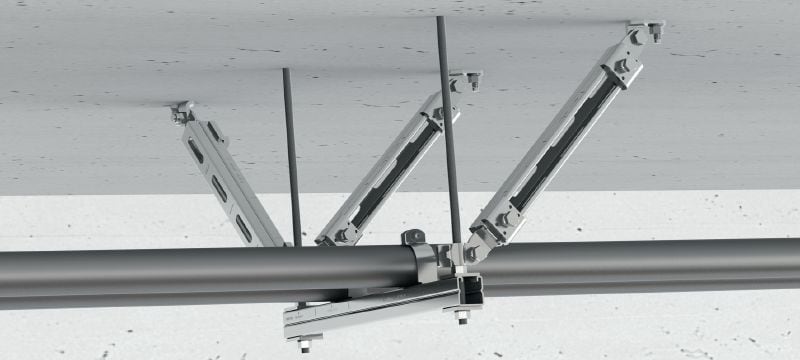

  • Lateral seismic bracing for trapeze rod
  • Available for rod sizes 3/8” and 1/2"
  • Used with Hilti MQS-SP-L-1/2”

For approval or certificate information, please see individual items.
