MQN-R Channel connector

Push button MQN-R SS316 #304012

Configurator
Technical Data
Documents
Features & Applications
Related Products

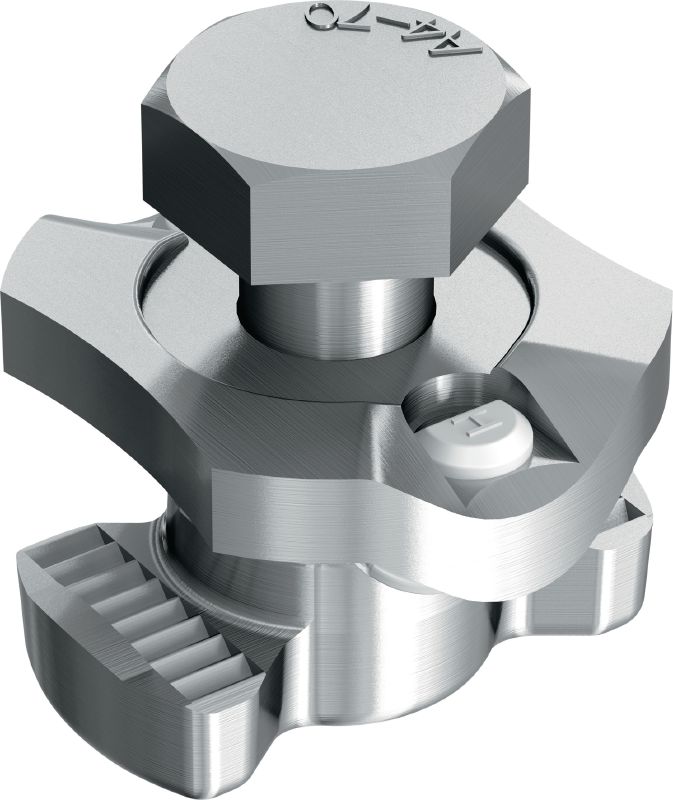

MQ Channel Connector Stainless Steel

Stainless steel (A4) channel connector for joining any elements with a butterfly opening

  • Tightening torque: 30 ft-lbf
  • Thread connection - M: M10
  • Material composition: Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L

Choose options

Thread connection - M
  • M10
Pack size
  • 25 pc
 Product options
Quantity
Box
Total Pieces
25
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$781.00
$781.00 / 1 Box

Technical Data

Tightening torque
30 ft-lbf
Thread connection - M
M10
Material composition
Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Wrench size
17 mm
Weight
0.17 lb

Documents

Documentation
Technical information
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Designed to be simple, compact and time-saving
  • Universal – one connection element for all MQ strut channels
  • Universal – one push button for all connectors and MQ installation channels
  • Holds securely once it has been pressed, turned and tightened correctly
  • Fewer parts and high flexibility

Applications

  • Connecting stainless steel MQ brackets, angles and bases to MQ profiles
  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements
