MQT Beam clamp

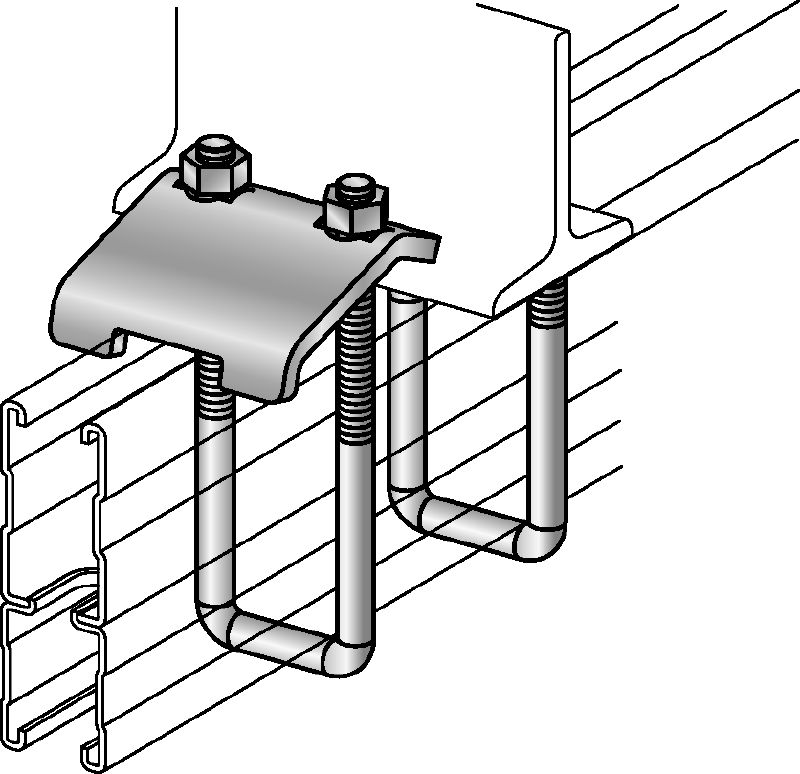

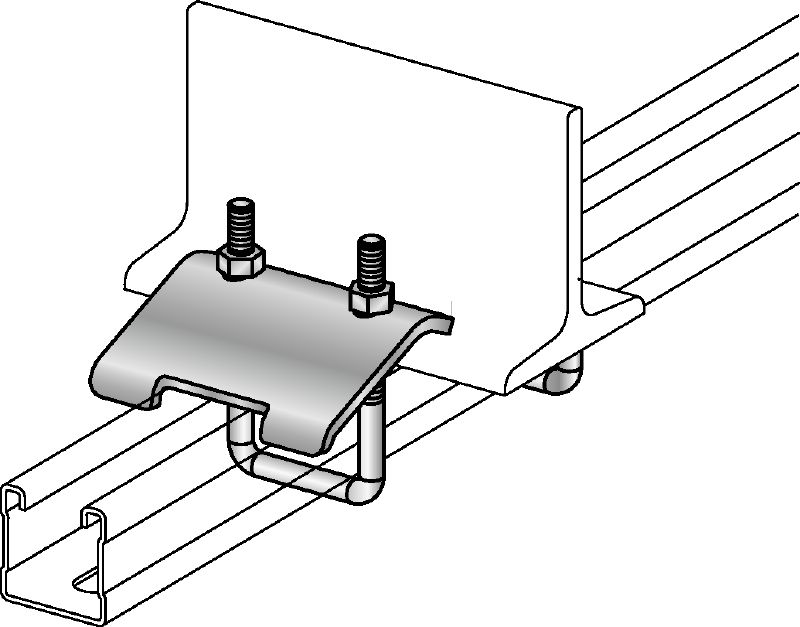

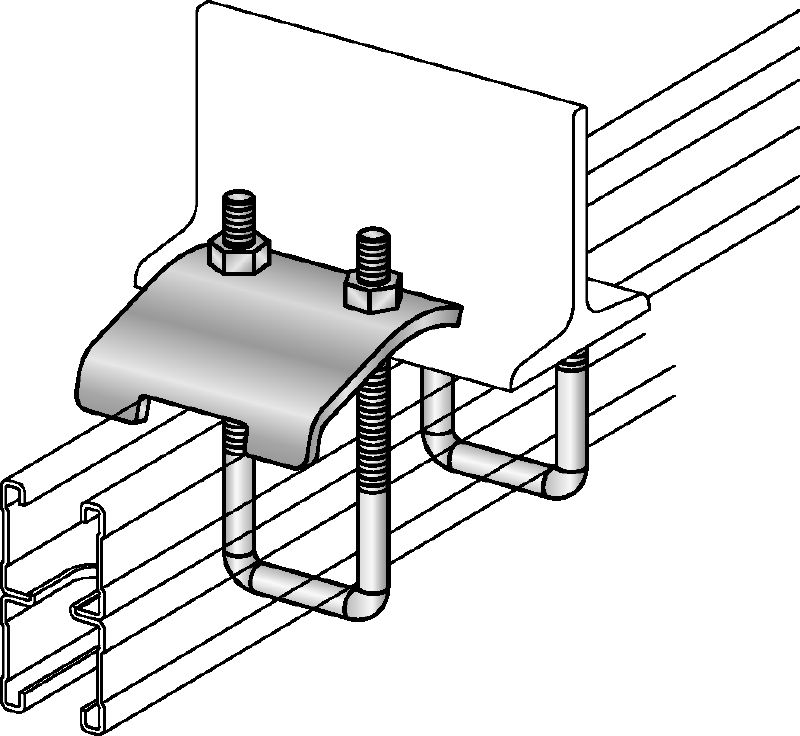

Galvanized beam clamp for connecting MQ strut channels directly to steel beams
- Material composition: Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M8
- M10
- M12
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $118.00
Technical Data
Material composition
Claw plate: S235JR - DIN EN 10025, U-bolt: S235JRG2 - DIN EN 10025, Nut - DIN 50961
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
pdf Corrosion handbook, English [ 9.6 MB ]
Features & Applications
Features
- Easier installation and positioning of strut channels
- No drilling or welding necessary
Applications
- Compatible with steel beams with max. flange thickness of 23 mm
For approval or certificate information, please see individual items.
