MQN-HDG plus

Push button MQN HDG plus #387779

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQN_o.eps

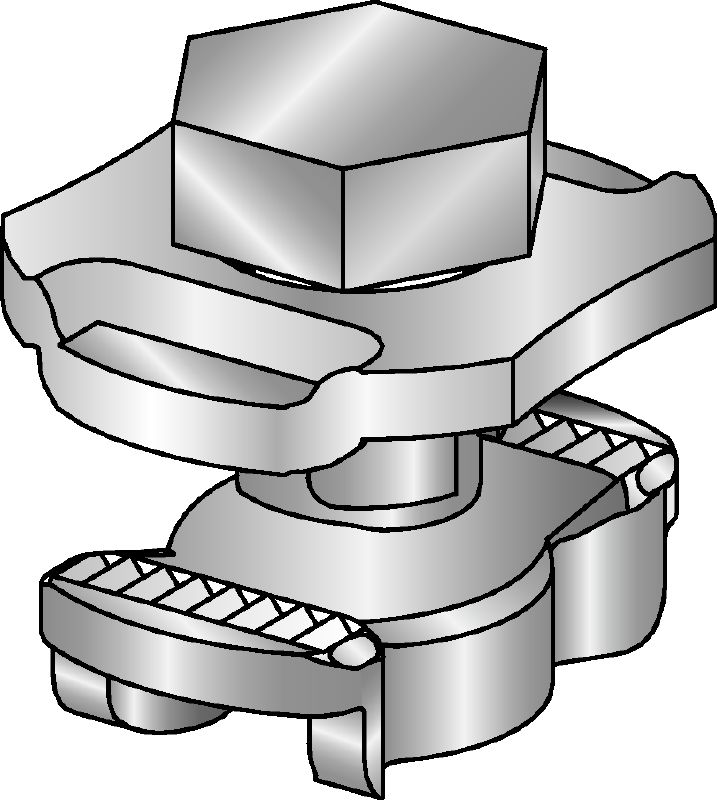

Hot-dip galvanized (HDG) channel connector for joining any elements with a butterfly opening

  • Product Class: Premium
  • Tightening torque: 30 ft-lbf
  • Material composition: Bolt: M10 grade 8.8 - DIN ISO 898, S355 MC - DIN EN 10149-2, Plate: DD11 - DIN EN 10111
premium

Customers also searched for Connector, spring nut, HDG or hot-dipped galvanized.

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Box
Total Pieces
50
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$1,272.00
$1,272.00 / 1 Box

Technical Data

Product Class
Premium
Tightening torque
30 ft-lbf
Material composition
Bolt: M10 grade 8.8 - DIN ISO 898, S355 MC - DIN EN 10149-2, Plate: DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG Plus
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Wrench size
17 mm
Weight
0.15 lb

Documents

Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Designed to be simple, compact and time-saving
  • Universal – one connection element for all MQ strut channels
  • Simple removal
  • Holds securely once it has been pressed, turned and tightened correctly
  • One-part fastener replaces a spring nut, bolt and washer for quick installation

Applications

  • Connecting angles to strut channels
  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements
  • Designed for long lifetime in temperate outdoor climates
  • Recommended for use in moderately corrosive outdoor and indoor environments
